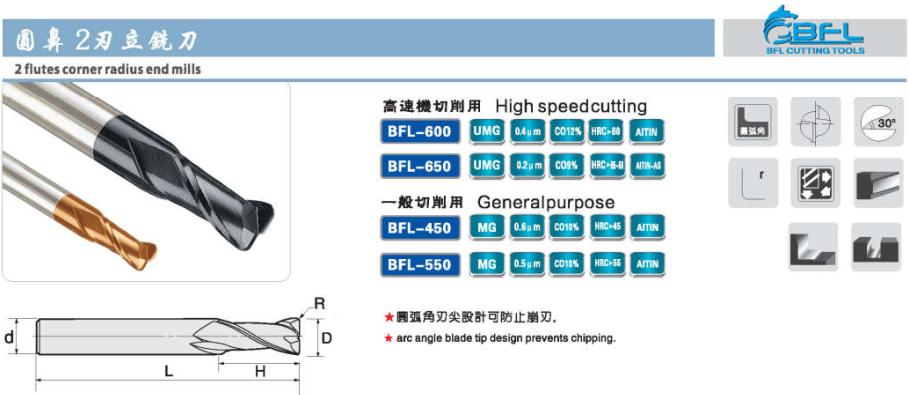

2 Flutes Corner Radius End Mills
    • BFL Solid Carbide 2 Flute Corner Radius End Mill, TiSiN
Product Details

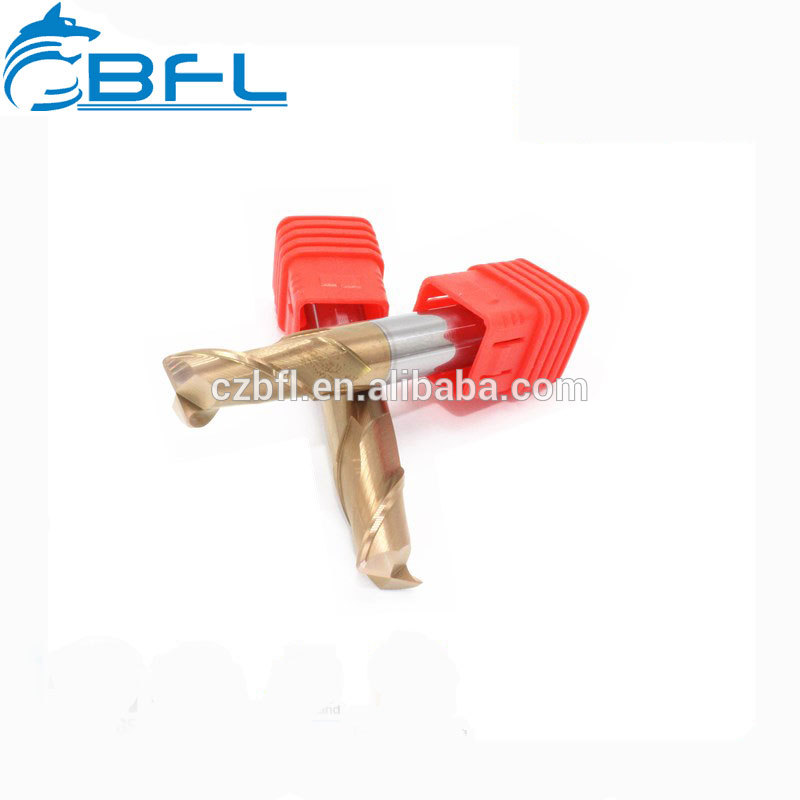

BFL Solid Carbide 2 Flute Corner Radius End Mill, TiSiN


HRC: HRC45 HRC55 HRC58 HRC60 HRC65

Coated: AlTiN, TiAlN, TiSiN, TiN, DLC,Nano, Diamond



1.Widely used in the processing of high-hardness materials, such as copper, cast iron, carbon steel, and mould steel etc.
2.Recommend to select the size with minimum overhang required as long overhang is vulnerable to vibration, and thus need to reduce RPM and the feed volume
3.Need to adjust RPM and feed rate reasonably accoring to cutting depth, the machine rigidity and other conditions of usage
4.With highly heat-resistant ALTIN coating, can be used for high-speed processing
5.High toughness, using grain-sized carbon tungsten as the raw material
6.Help to increase the smoothness, reduce the friction coefficient,and improve the lathe efficiency, thus save more production time


PRODUCT CODE
产品编号
FLUTE DIAMETER
刃径 (mm)
Radius
R径(mm)
FLUTE LENGTH
刃长 (mm)
OVERALL LENGTH
总长 (mm)
SHANK DIAMETER
柄径 (mm)
BFL-AR-020-052.0 R0.54504
BFL-AR-030-053.0 R0.55504
BFL-AR-040-054.0 R0.58504
BFL-AR-040-104.0 R18504
BFL-AR-060-056.0 R0.512506
BFL-AR-060-106.0 R112506
BFL-AR-080-058.0 R0.516608
BFL-AR-080-108.0 R116608
BFL-AR-080-158.0 R1.516608
BFL-AR-100-0510.0 R0.5207510
BFL-AR-100-1010.0 R1207510
BFL-AR-100-1510.0 R1.5207510
BFL-AR-120-0512.0 R0.5247512
BFL-AR-120-1012.0 R1247512
BFL-AR-120-1512.0 R1.5247512
BFL-AR-120-2012.0 R2247512
