2 Flutes Ball Nose End Mills
    • 2 Flute Carbide Ball Nose End Mill, TiAlN Coating
    • 2 Flute Carbide Ball Nose End Mill, TiAlN Coating
    • 2 Flute Carbide Ball Nose End Mill, TiAlN Coating
    • 2 Flute Carbide Ball Nose End Mill, TiAlN Coating
Product Details

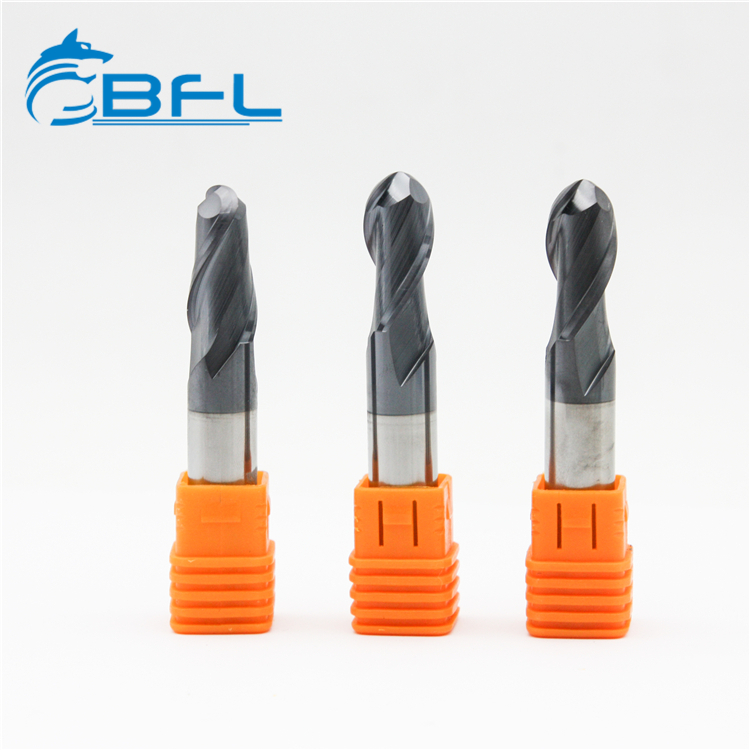

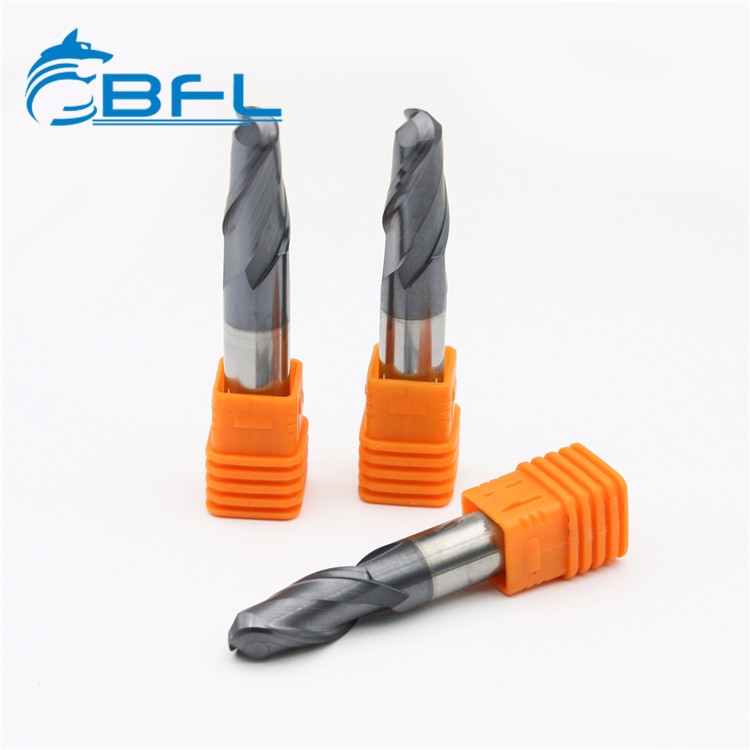

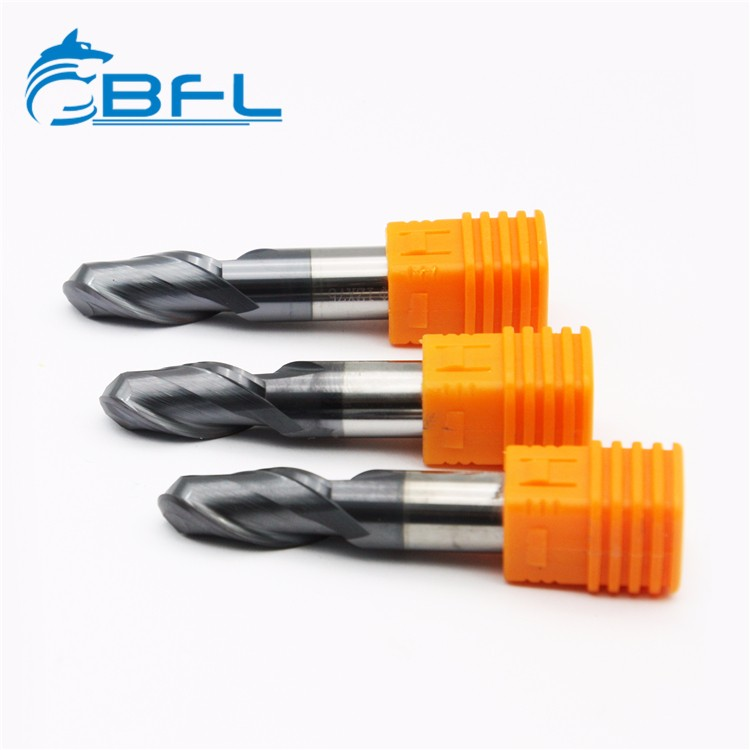

2 Flute Carbide Ball Nose End Mill, TiAlN Coating

HRC: HRC45 HRC55 HRC58 HRC60 HRC65

Coated: AlTiN, TiAlN, TiSiN, TiN, DLC,Nano, Diamond



1.Widely used in the processing of high-hardness materials, such as copper, cast iron, carbon steel, and mould steel etc.
2.Recommend to select the size with minimum overhang required as long overhang is vulnerable to vibration, and thus need to reduce RPM and the feed volume
3.Need to adjust RPM and feed rate reasonably accoring to cutting depth, the machine rigidity and other conditions of usage
4.With highly heat-resistant ALTIN coating, can be used for high-speed processing
5.High toughness, using grain-sized carbon tungsten as the raw material
6.Help to increase the smoothness, reduce the friction coefficient,and improve the lathe efficiency, thus save more production time

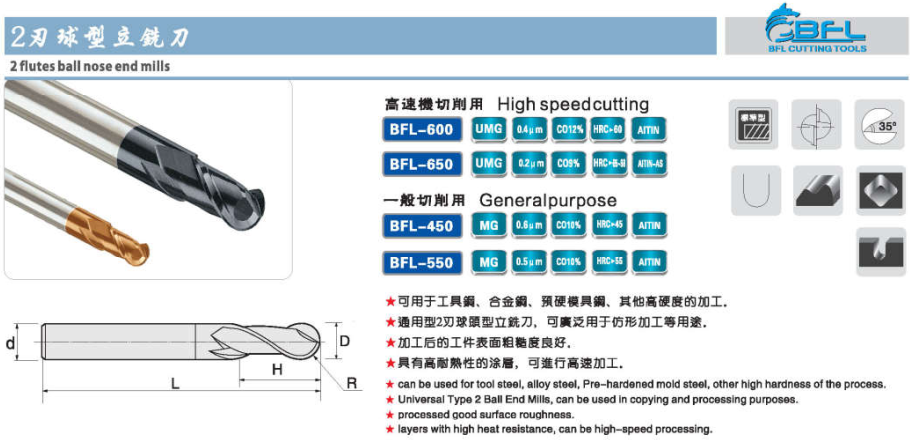

PRODUCT CODE
产品编号
FLUTE DIAMETER
刃径 (mm)
FLUTE LENGTH
刃长 (mm)
OVERALL LENGTH
总长 (mm)
SHANK DIAMETER
柄径 (mm)
BFL-AR-010R0.52504
BFL-AR-015R0.753504
BFL-AR-020R14504
BFL-AR-025R1.255504
BFL-AR-030R1.56503
BFL-AR-031R1.56504
BFL-AR-040R28504
BFL-AR-610R0.52506
BFL-AR-615R0.753506
BFL-AR-620R14506
BFL-AR-625R1.255506
BFL-AR-630R1.56506
BFL-AR-640R28506
BFL-AR-650R2.510505
BFL-AR-651R2.510506
BFL-AR-660R312506
BFL-AR-080R416608
BFL-AR-100R5207510
BFL-AR-120R6257512
BFL-AR-160R83010016
BFL-AR-200R103010020


General Information

1>Delivery Time: 3-10Days

2>Payment Terms:T/T, Western Union, Paypal, AliExpress.

3>Shipping Terms: DHL. FEDEX, UPS, TNT, EMS.etc. according to your demand.

4>Main Markets: Thailand, Malaysia, Singapore, Philippines, Indonesia, Italy, Spain, Russia, Australia, Brazil, USA, Mexico, Czech, Poland, Germany, Turkey and so on.


Product positioning: Our Goal is Quality is No.1 Always. High Quality Reasonable Price. We believe quality can let us walk long time.

Our Service: High Performance Quality. Nice Patient Sales Person. Professional Experience Engineers. Responsible After-Sales Service.


Have any interesting, Welcome send inquiry to us.
