Rough End Mill

Rough End Mill Category Overview

Designed for high stock removal with stable cutting, this range uses solid carbide and serrated edge profiles to break chips, reduce cutting forces, and limit chatter. It accelerates slotting, pocketing, and side milling in steels, stainless, cast iron, titanium, Inconel, and aluminum while holding size and delivering predictable tool life. Options cover general‑purpose carbide designs, heavy roughing serrations, and geometries tailored for non‑ferrous materials.

Features & Benefits

Geometry for High Removal Rates

Coarse and fine pitch serrations with reinforced cores support aggressive removal without sacrificing rigidity. Optimized helix angles improve chip evacuation in deep slots. Corner radius and chamfer options increase edge strength.

Stability and Low-Noise Cutting

Variable pitch, asymmetric serrations, and tuned rake/clearance angles help reduce vibration and spindle load. Users can run higher feeds with smoother sound and consistent surfaces across different machines.

Tool Life and Coatings

Micro‑grain carbide and controlled edge prep improve wear resistance. AlTiN/TiAlN/TiCN manage heat in steels and superalloys, while DLC/ZrN with polished flutes limit built‑up edge in aluminum to keep chips clean and cool.

Series & Variants

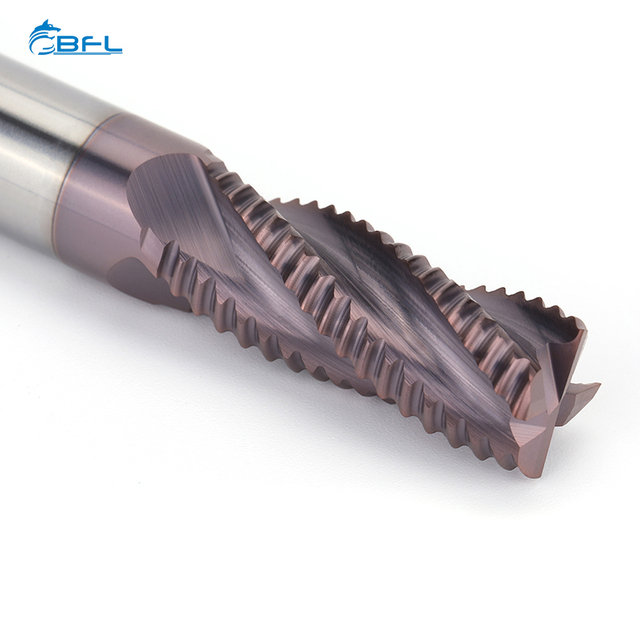

Standard Solid Carbide

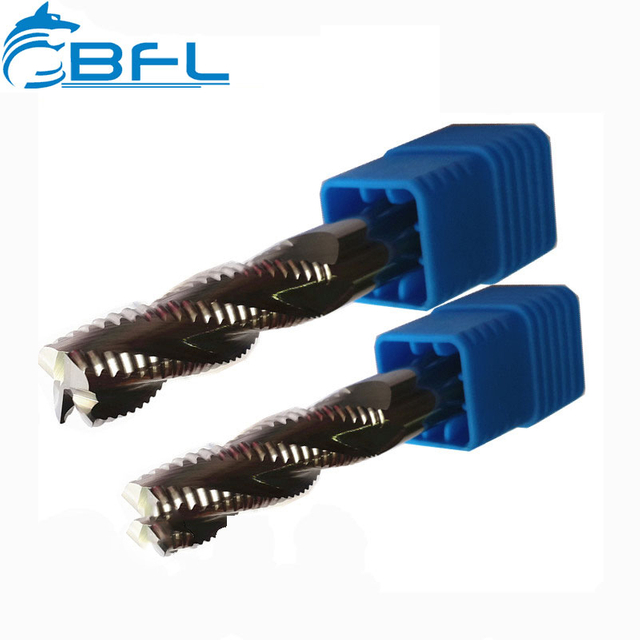

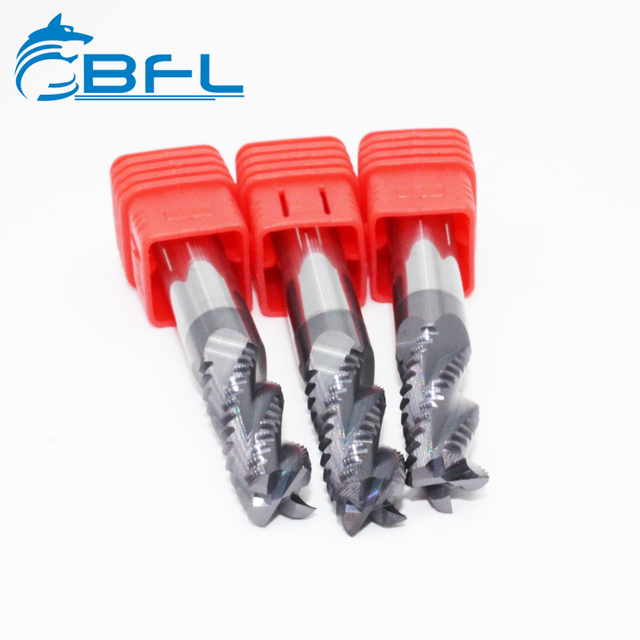

General‑purpose carbide roughers cover metric and inch diameters with 4–5 flutes, coarse or fine serrations, and mid helix for balanced performance in carbon and alloy steels and cast iron.

Specs – Standard Solid Carbide

Diameter Ø2–25 mm (1/16"–1"); typical flute length 3×D; shank h6; helix 35–45°; AlTiN/TiAlN/TiCN; optional corner radius.

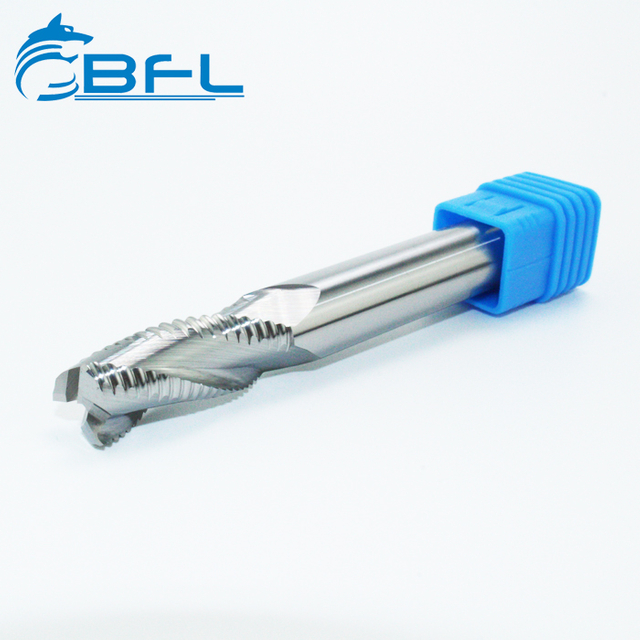

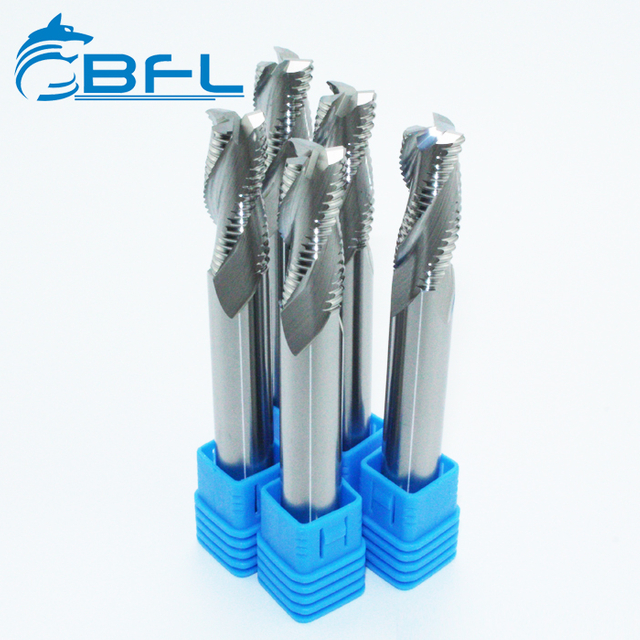

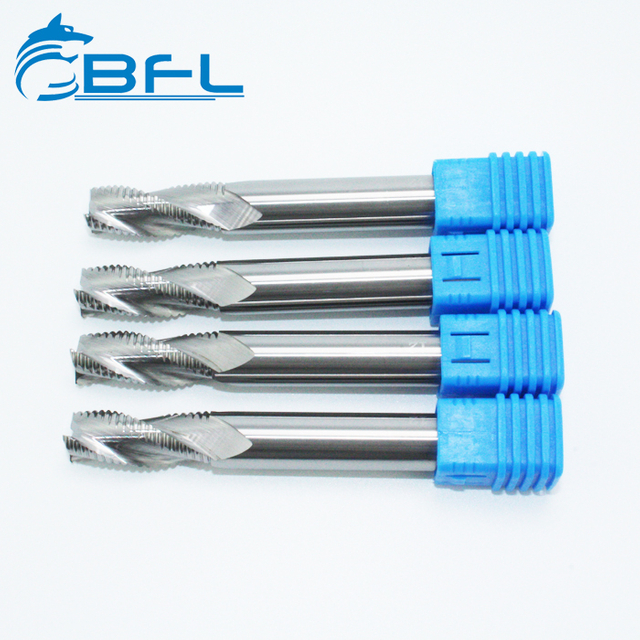

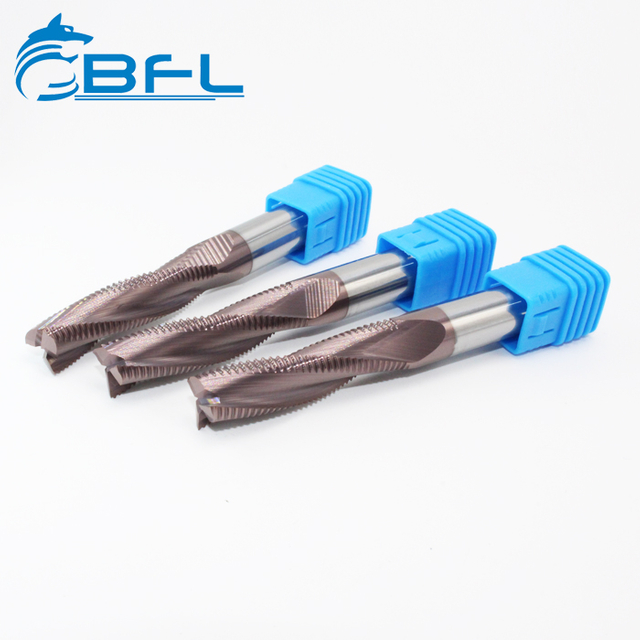

Aluminum Roughing

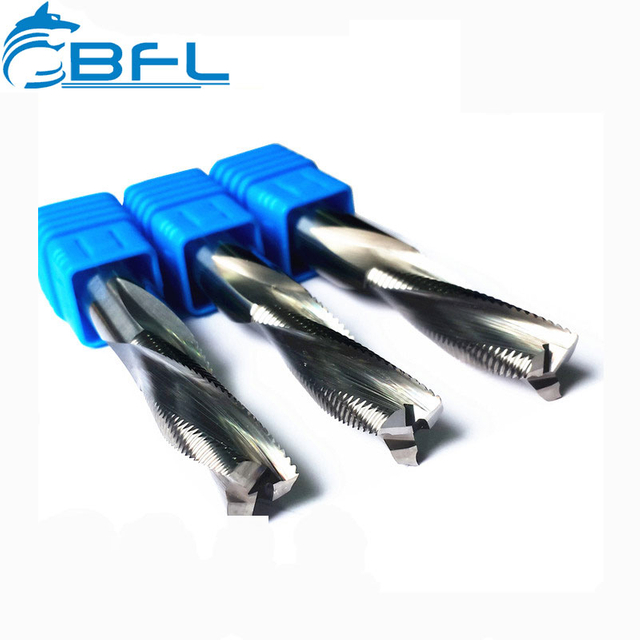

High‑helix 3‑flute tools with polished flutes and DLC/ZrN coatings enable high feed rates and clean evacuation with minimal BUE in aerospace frames, molds, and thin‑wall parts.

Specs – Aluminum Series

Ø3–20 mm; 3 flutes; 45–55° helix; DLC/ZrN; polished flutes; optional neck relief.

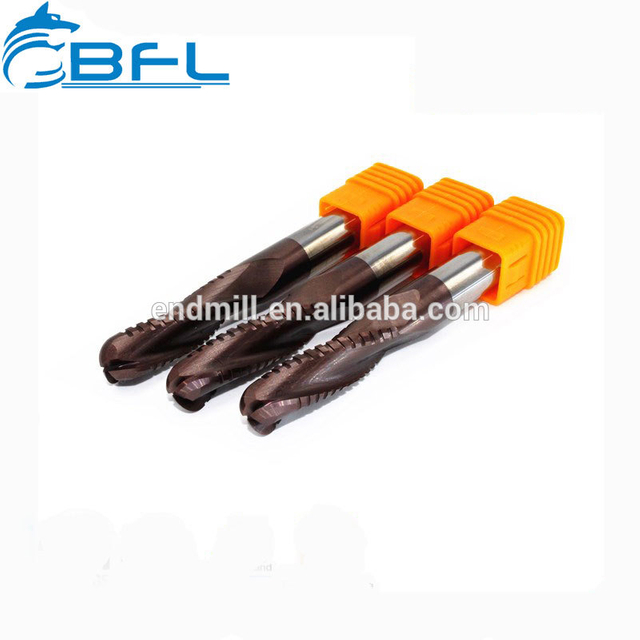

Corner Radius & Chamfer

Radius or chamfer edges add strength and resist chipping in hard steels and interrupted cuts, extending life before finishing.

Specs – Radius Options

Common radii R0.2–R2.0; custom radii per drawing; coatings matched to material; coarse or fine pitch selectable.

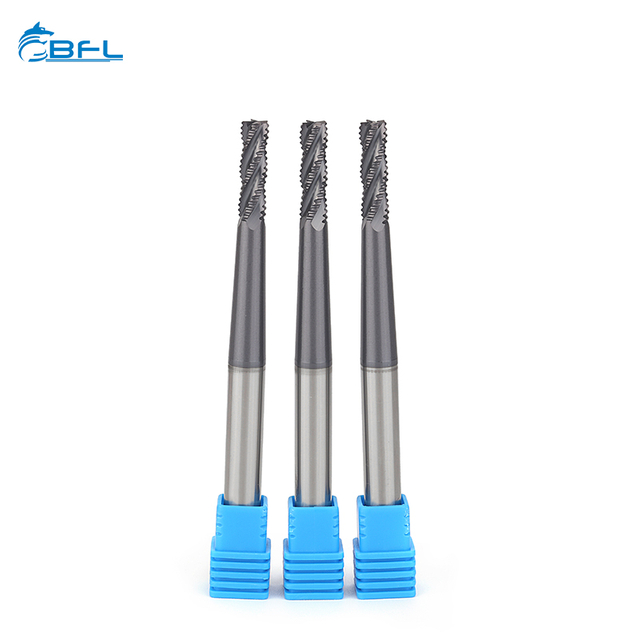

Long Reach / Necked

Necked‑down shanks and extended flutes access deep cavities with minimal interference while maintaining stiffness for molds, dies, and tall‑wall pocketing.

Specs – Reach Variants

Neck relief up to 10×D; OAL per ISO/DIN; reduced neck diameter; optional coolant flat.

Custom Engineering

Tailor‑Made to Your Process

Send drawings or samples and we will design a tool for your material, machine, holder, and coolant strategy. Geometry is tuned to removal rate, stability, and cycle time.

For Difficult Materials

For stainless, titanium, Inconel, and hardened steels, geometry and coatings are optimized to manage heat, work hardening, and chip packing. The result is lower spindle load and steadier tool life.

CAD‑to‑Tool Workflow

Application review, simulation, and first‑article inspection shorten trials and improve repeatability in larger batches. Inspection reports are included.

Manufacturing & Quality

Precision Grinding and Equipment

Produced in Changzhou, Jiangsu on Swiss TTB, WALTER HELITRONIC, DECKEL, and ANCA grinding centers. The process achieves sub‑micron edge prep, smooth rake surfaces, and consistent profiles in automated runs.

Metrology and Inspection

ZOLLER presetting and PARLEC/PG1000 video measurement verify geometry, runout, and pitch uniformity. Statistical controls support batch consistency.

Certified Quality and Reliability

ISO 9001 (2023–2026) and SGS certifications support traceability and documentation for global production.

Materials & Coating Recommendations

Steel and Tool Steel

Use AlTiN/TiAlN; choose coarse pitch for 4140/4340 and fine pitch for tool steels. Add a corner radius for interrupted cuts and maintain a moderate helix.

Stainless and Titanium

Variable pitch and thicker cores resist heat and work hardening. Favor lower radial engagement with higher feed per tooth to maintain chip thickness and stability.

Cast Iron and Inconel

For cast iron, coarse serrations with TiCN/TiAlN combat abrasion. For Inconel, use fine pitch with advanced AlTiN and modest widths of cut for reliable chip control.

Aluminum and Non‑Ferrous

High‑helix 3‑flute DLC/ZrN tools with polished flutes prevent BUE and keep chips moving. Use air blast or MQL for full‑slot strategies.

Selection & Setup

Choosing by Flute Count and Pitch

Three flutes excel in aluminum; 4–5 flutes suit steels and cast iron. Coarse pitch targets high removal, while fine pitch improves stability in harder or thin‑wall parts.

Holders and Clamping

Pair with precision collet, hydraulic, or shrink‑fit holders. Short gauge length and rigid fixturing reduce runout and vibration.

Parameters and Coolant

In steels, prioritize high feed with moderate width of cut. In aluminum, use higher rpm with air blast or MQL to maintain chip clearance and avoid chatter.

Technical Parameters

Dimensional Range

Standard diameters Ø2–25 mm (1/16"–1"); flute lengths up to 4×D; OAL per ISO/DIN; extended reach and necked variants available.

Tolerances and Shank Specs

Shank tolerance h6; diameter tolerance per ISO; typical concentricity ≤0.005 mm; corner radii within ±0.01 mm on request.

Ordering Codes and Options

Specify diameter, flute count, pitch, helix, radius/chamfer, length, and coating. Custom options include neck relief, coolant flats, and special serration forms.

Application Examples and Results

Heavy Roughing in Alloy Steel

Coarse‑pitch AlTiN tools often deliver 20–40% higher removal with stable spindle load and predictable life compared with conventional designs.

High‑Speed Roughing in Aluminum

Three‑flute DLC tools with polished flutes enable high‑rpm, high‑feed strategies that reduce cycle time and produce uniform, easy‑to‑evacuate chips.

FAQs

What is it and when to use?

A roughing tool uses serrations to break chips and lower forces. It is ideal for bulk stock removal before finishing.

Coarse vs Fine Pitch

Coarse pitch maximizes chip space and removal in softer or medium‑hard materials. Fine pitch improves stability and surface consistency in harder or thin‑walled parts.

Finishing Strategy

After roughing, switch to a finishing mill for final size and surface. A corner radius rougher leaves a stronger edge ready for finishing passes.
