Long Neck End Mill

Overview & Applications

Long neck end mills in solid carbide provide extended reach for deep cavities, narrow slots, and ribs in mold and die, aerospace, and precision parts. Optimized neck relief and rigid substrates help reduce interference and chatter where conventional cutters rub. These tools allow clean access past tall walls and accurate floor finishing while limiting toolholder contact in deep cavity and rib machining.

Key Features

Sub-micron precision grinding and multi-axis automation deliver tight tolerances, low runout, and fine surface finish at the tip and relieved neck. Variable helix options suppress vibration. Heat-resistant coatings and optimized rake and clearance angles help extend life in steels, stainless, titanium, and aluminum. Consistent batch accuracy supports repeatable results from prototype through volume production.

Types & Geometries

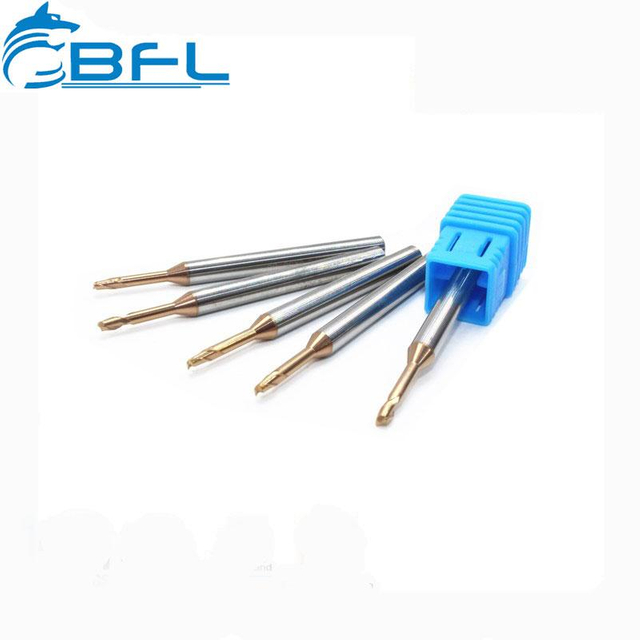

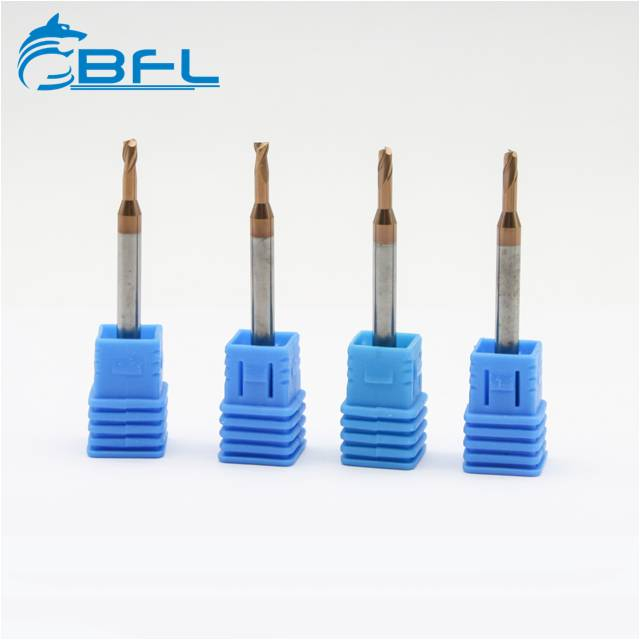

• Square/Flat End: For flat floors, accurate shoulders, and deep pockets. Reinforced cores and relieved necks maintain reach with minimal deflection.

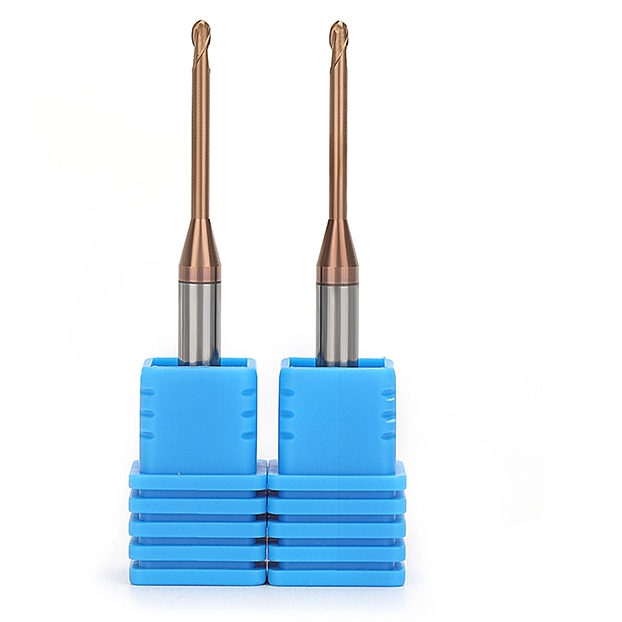

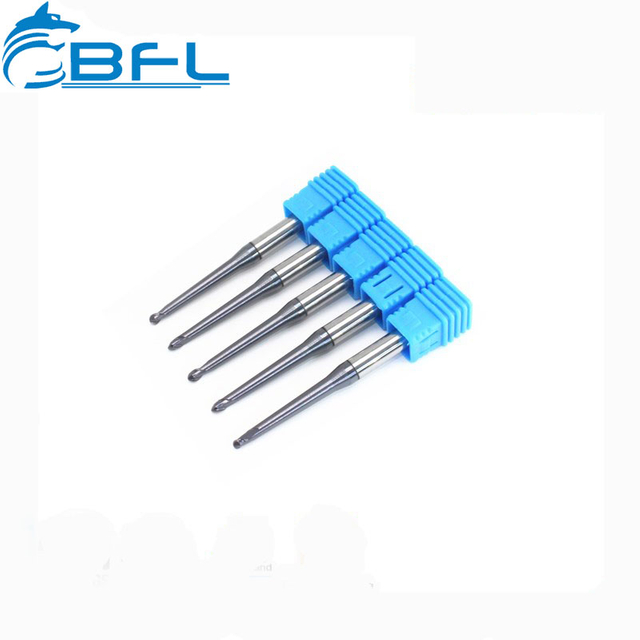

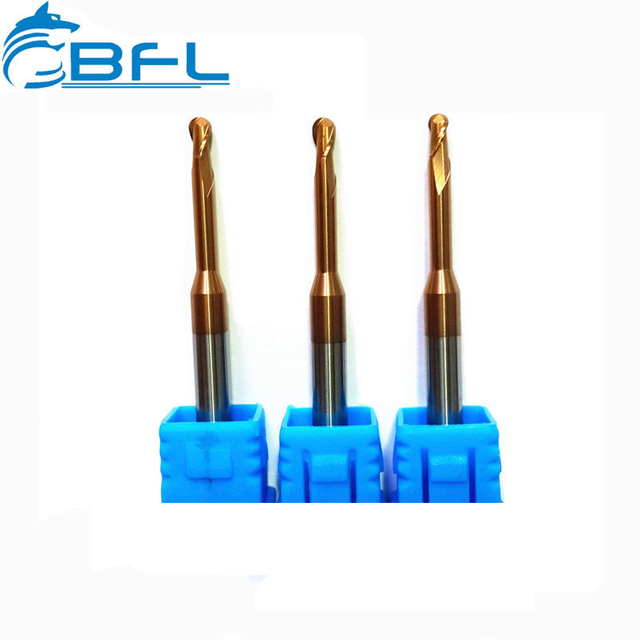

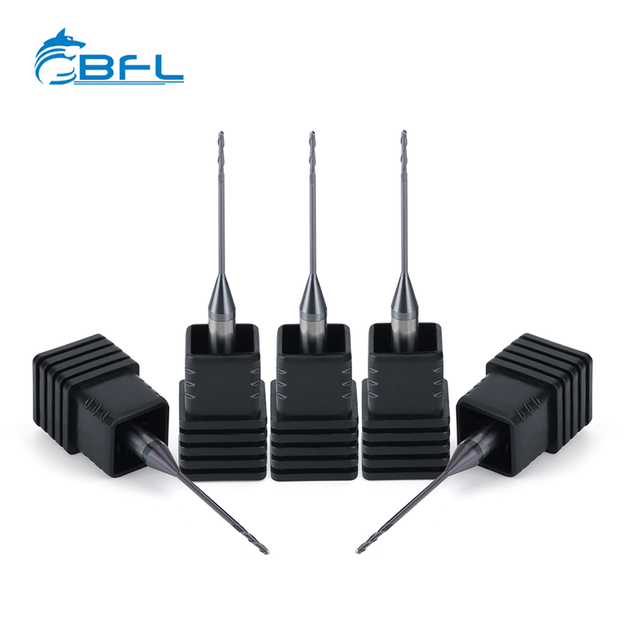

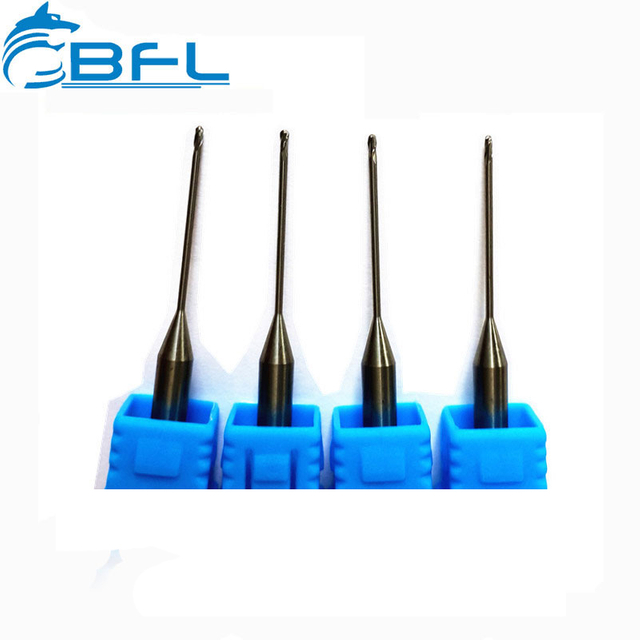

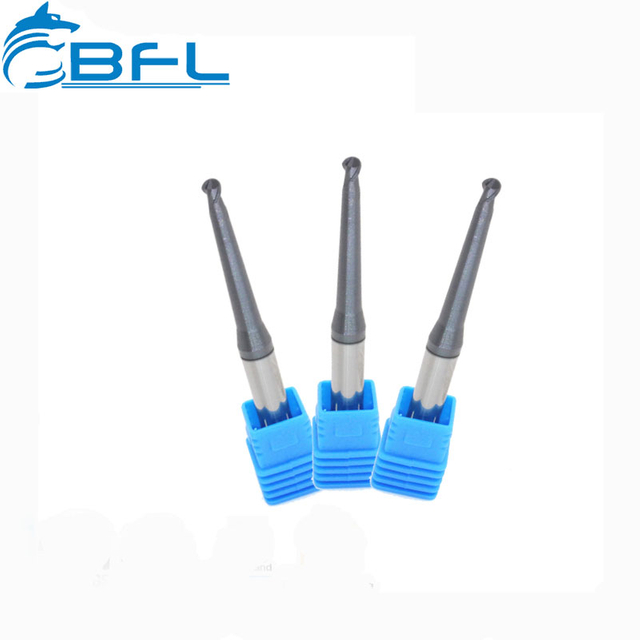

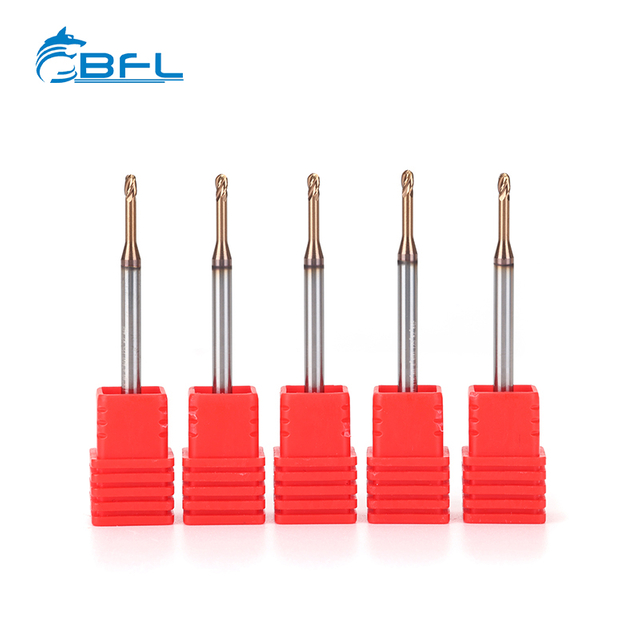

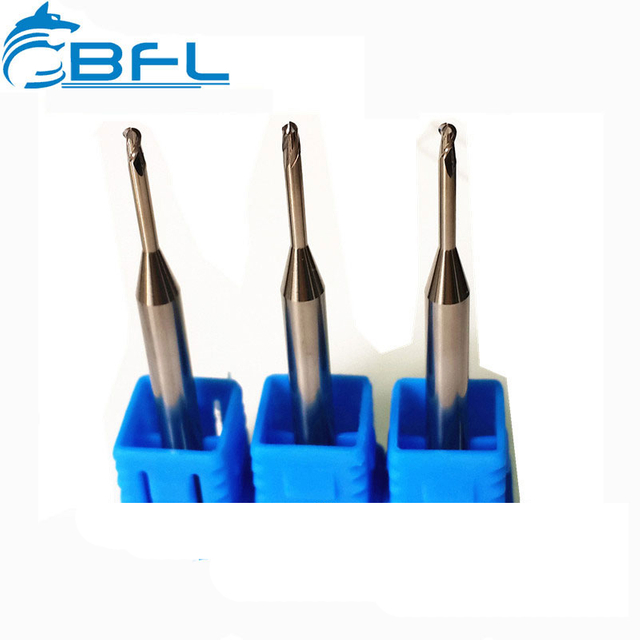

• Ball Nose: For 3D contouring, rib finishing, and small-radius blends in hardened steels. Refined ball gash and clearance reduce scallops and preserve detail.

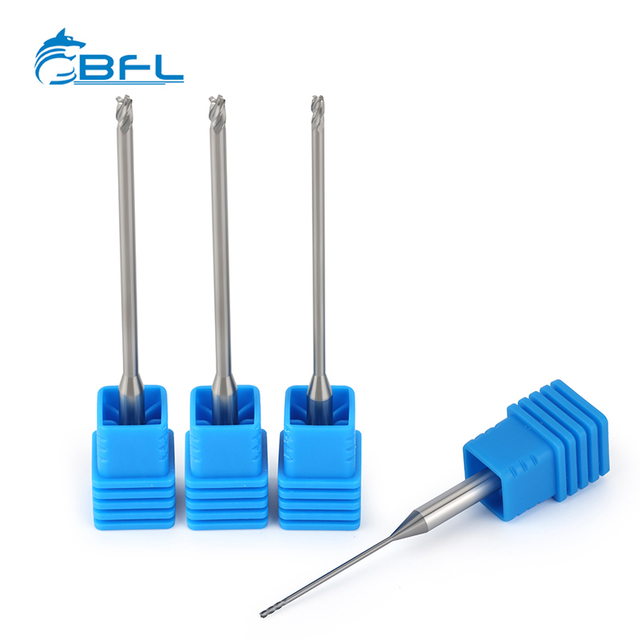

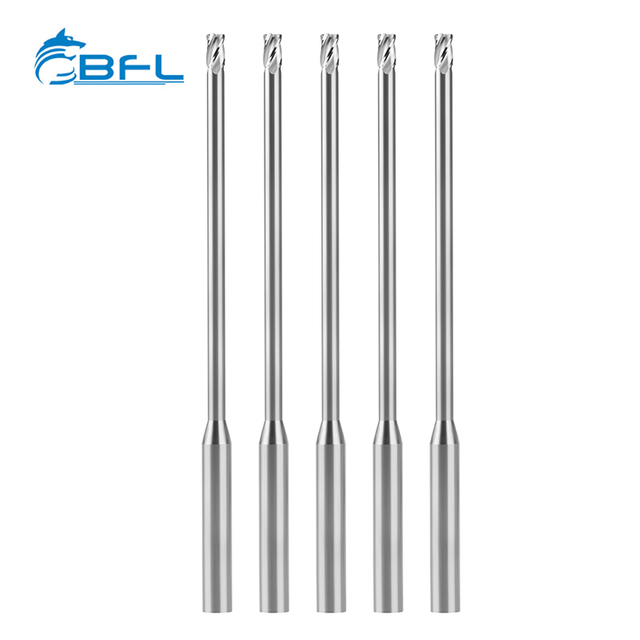

• Corner Radius: Balanced corner strength improves surface quality and lowers chipping risk during semi-finishing and finishing.


• Corner Rounding: Reaches restricted areas to form consistent external radii, reducing secondary operations. Long necks limit wall interference.


• Aluminum Series: High-polish flutes and sharp edges enable burr-free machining. DLC or uncoated micro-polished edges help prevent built-up edge.

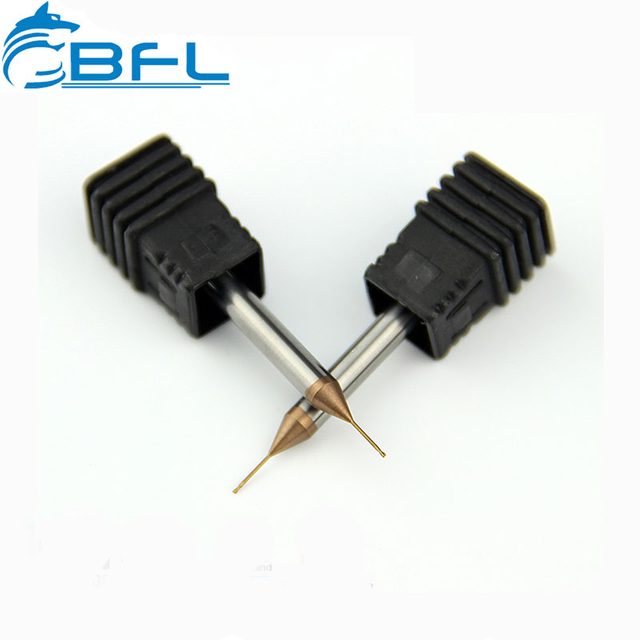

• Micro/Small Diameter: Ultra-fine grain carbide and precise neck relief ensure stiffness for intricate features and thin-wall finishing.

Materials & Coatings

• Hardened Steel (HRC 45–65): AlTiN/TiAlN-coated designs with reinforced cores and edge hone for heat resistance and abrasion control.


• Stainless & Alloy Steel: Optimized rake and chip evacuation reduce work hardening and maintain edge integrity under intermittent cuts.


• Titanium & Superalloys: TiAlN/Si-based coatings and variable helix geometries suppress chatter and manage heat at lower radial engagement.


• Graphite & Composites: Diamond-coated tools provide wear resistance and sharp edges for clean electrodes and laminates, minimizing delamination.

Specifications & Selection Guide

Dimensions & Reach

Choose cutting diameter (Dc), neck diameter (Dn), neck length (Ln), and overall length (OAL) to clear walls while maintaining stiffness. Keep Ln only as long as needed to reduce deflection and chatter.

Typical Ranges

Dc 0.2–20 mm; Dn matched for clearance; Ln up to 10×Dc; shank 4–20 mm. Sub-micron tolerances from precision grinding support stable clamping and runout control.

Flute Count & Helix

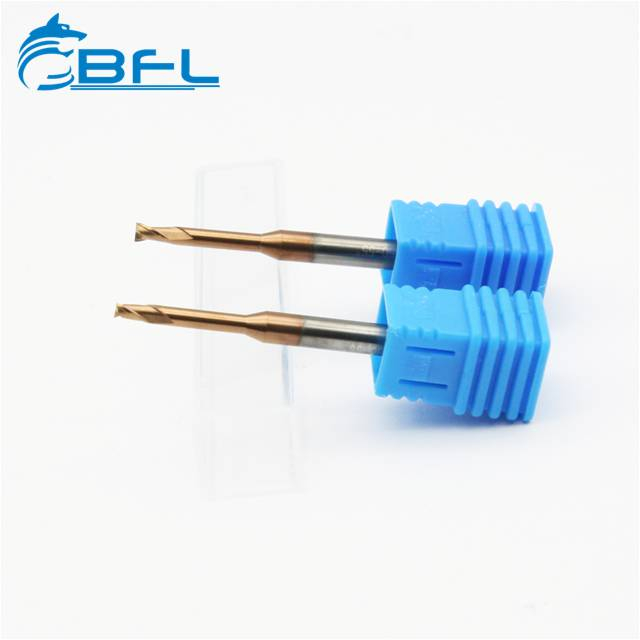

Use 2 flutes for aluminum and slotting, 3 flutes for balanced chip evacuation, and 4 flutes for finishing. Select 35–45° or variable helix to damp vibration at long reach.

Tolerance & Runout

Verified edge prep and runout (ZOLLER, PG1000) support stable finishing and consistent tool life at extended reach.

Customization & Engineering Support

Non-standard designs by drawing or sample are available, including neck relief, special radii, chamfers, step forms, and custom OAL. Application engineers specify geometry by material, machine, holder, and clamping to reduce vibration and improve surface quality. Substrate and coating options include sub-micron grain carbide, AlTiN, TiAlN, TiCN, DLC, and diamond.

Production & Quality

Tools are ground on Switzerland TTB, DECKEL, WALTER, and ANCA systems with stable thermal control and vibration damping. Inspection uses ZOLLER, PG1000, PARLEC, and MRPG1000. ISO9001 and SGS certification support reliable quality across batches.

Machining Recommendations

• Mold & Die Deep Cavities: Apply small stepdowns and light radial engagement. Use climb milling with coolant-through or air blast to protect the tool while clearing tall walls and finishing floors.


• Thin-Wall & Rib Finishing: Run high spindle speed with reduced feed per tooth to limit deflection. Choose variable helix designs to lower vibration on delicate ribs.


• Aerospace & Medical Components: For titanium pockets and stainless instruments, select coated designs with strong cores, balanced flutes, and precision holders to maintain stability at reach.

Category Highlights & Contact

A modern production base in Changzhou, Jiangsu, and advanced automation support consistent performance from standard series to customized tools. Contact us to discuss your application or request a quote.
