Taper End Mill

Taper End Mill Overview and Applications

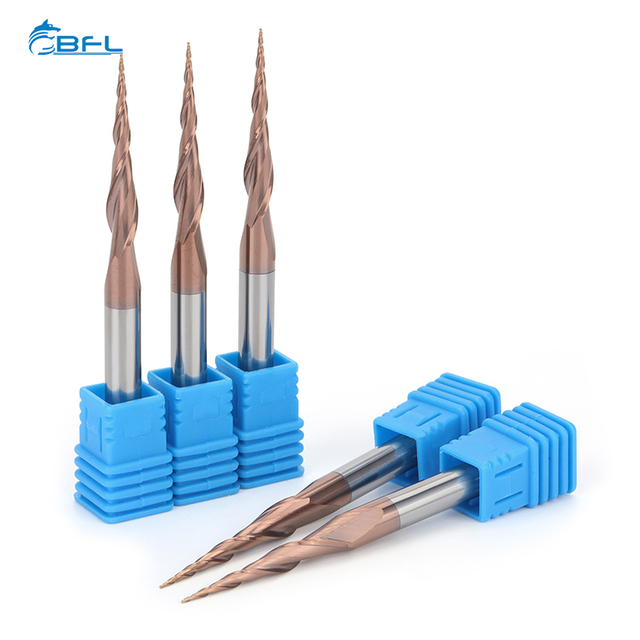

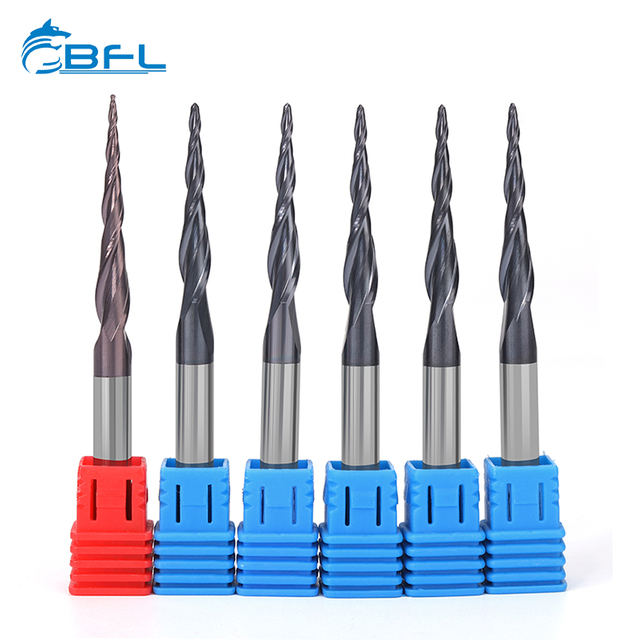

A Taper End Mill is a carbide milling tool with a gradual taper along the flutes. The tapered profile increases stiffness and improves wall finish on angled features, deep cavities, draft surfaces, and sculpted contours. It is widely used for mold and die finishing, engraving, and complex 3D machining on 3‑axis and 5‑axis CNC equipment. Built from premium cemented carbide, these tools help control dimensions and reduce deflection in aluminum, steels, stainless, titanium, and nickel alloys.

Manufacturing Advantages

Precision Grinding, Sub‑Micron Accuracy, Mirror‑Finish Edges

Tools are ground in‑house on TTB, WALTER, DECKEL, and ANCA platforms. Multi‑axis grinding holds sub‑micron accuracy and produces mirror‑finish cutting edges. Automation keeps quality consistent across batches.

Engineering Intake for Non‑Standard Designs

A clear intake—workpiece material, machine and process, holder type, and part drawings or samples—guides custom solutions. We tailor taper angle, helix, flute count, tip style, corner radii, and coatings to match your requirements.

Quality Assurance and Certifications

Each tool is measured on ZOLLER, PG1000, and PARLEC systems to control runout and dimensions. Our Changzhou, Jiangsu facility is ISO9001 and SGS certified, ensuring traceability and stable supply.

Product Range and Key Specifications

Standard Series

Common per‑side angles from 0.5° to 10°, 2–4 flutes, short to long reach, and ball nose or flat tips in inch and metric sizes.

Aluminum Series

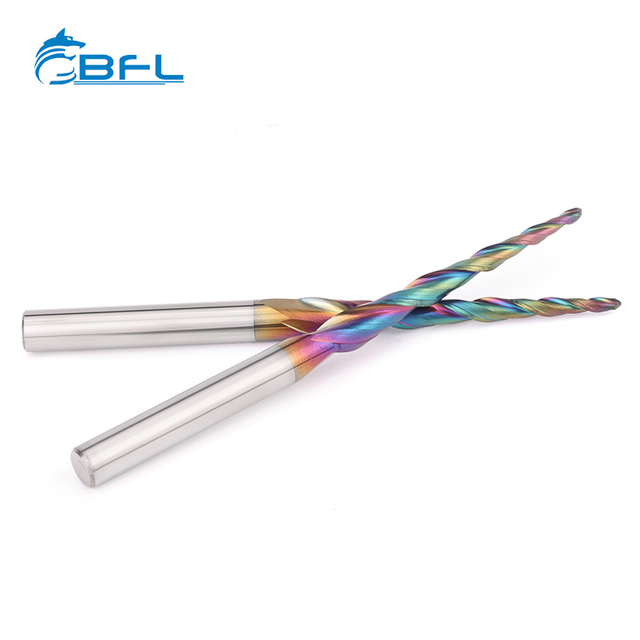

High rake angles, polished flutes, and DLC or uncoated finishes improve chip evacuation and limit built‑up edge. Optimized 2–3 flute designs cut intricate aluminum contours quickly and cleanly.

Customized Designs

Step taper bodies, variable helix, micro sizes, extended reach with reinforced cores, corner protection radii, and tailored ball nose transitions are available for titanium, Inconel, hardened steels, and precision finishing.

Angle and Geometry

Select per‑side or included angles to meet draft and rigidity needs. Tight angle tolerance, optional secondary relief, and optimized clearance reduce rubbing in deep features.

Tip Styles

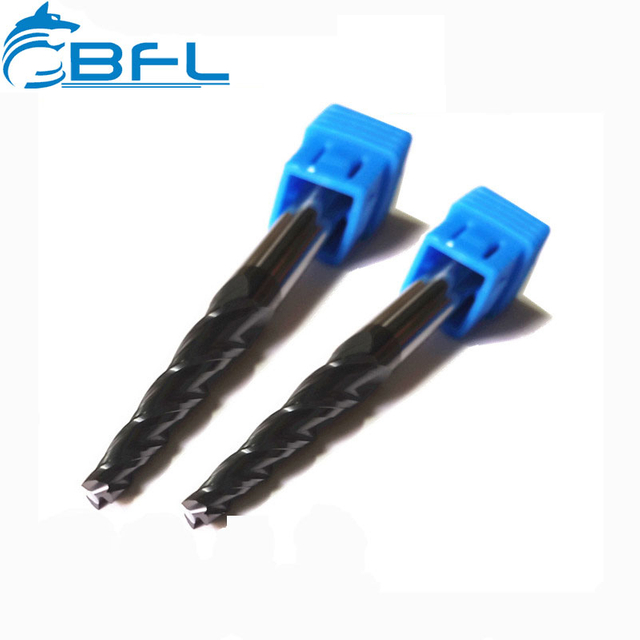

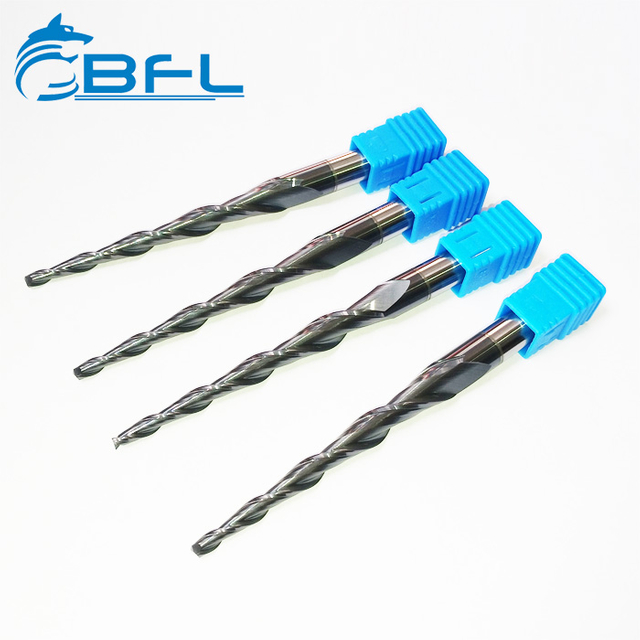

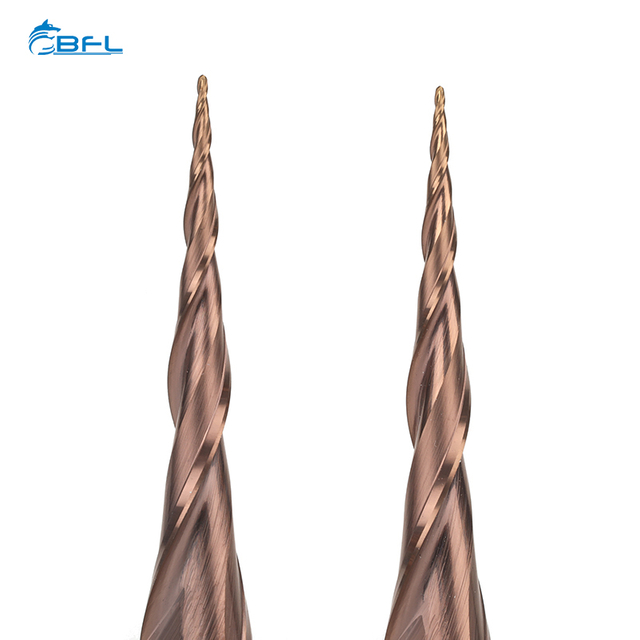

Tapered ball nose tools excel in smooth 3D finishing. Flat tips deliver crisp edges for angled slots and feature definition. Corner radii are available.

Flute Count and Helix

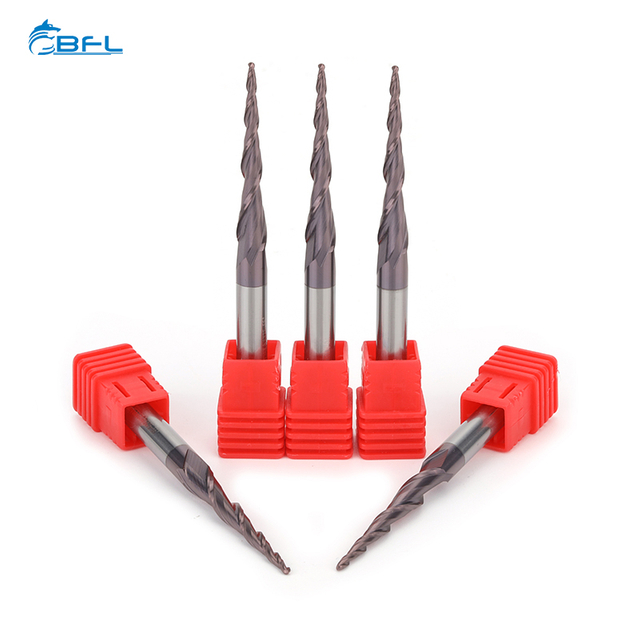

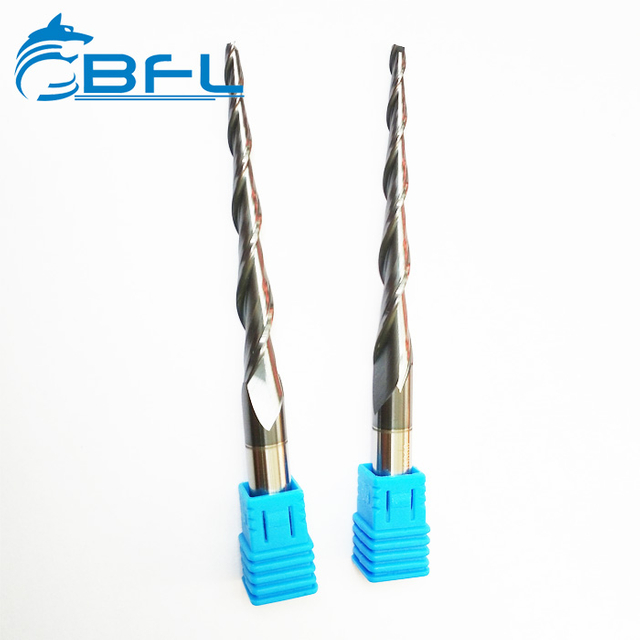

Choose 2 flutes for maximum chip evacuation in soft materials, 3 flutes for balance, and 4 flutes for harder alloys and fine finishing. Variable helix reduces vibration in long‑reach or thin‑wall work.

Coatings and Substrate

Premium cemented carbide with TiAlN/AlTiN adds heat resistance in steels. DLC suits aluminum and non‑ferrous. Specialized layers support nickel‑based alloys.

Shank, Holders, and Sizes

Optimized shank tolerance supports low runout with ER collets, shrink‑fit, and precision systems. Metric and inch diameters are offered with varied length‑of‑cut, overall length, long reach bodies, and relieved necks.

Performance Benefits in Challenging Materials

Sidewall Finish and Dimension Control

Tapered profiles reduce deflection and improve sidewall straightness. Clean cutting lowers polishing and rework.

Tool Life and Heat Resistance

Carbide substrates and advanced coatings resist heat and abrasion. Optimized flute geometry lowers cutting forces and wear.

Productivity and Cycle Time

Greater rigidity and efficient chip evacuation support higher feed rates and fewer passes in contour finishing.

Stability and Vibration Damping

A tapered shank increases stiffness for long‑reach machining and thin‑wall finishing. Variable helix and precision holders improve surface results.

How to Choose

Angle Selection

Match the angle to draft requirements. Smaller angles improve reach and accuracy; larger angles raise stiffness. Confirm per‑side versus included angle.

Length of Cut, Reach, and Neck Relief

Use relieved necks for deep cavities and keep the shortest practical stick‑out to control deflection and finish.

Flute Count and Helix

Select 2–3 flutes for aluminum and softer materials; 3–4 flutes for steels. Variable helix helps in thin‑wall features and long‑reach paths.

Coating by Workpiece

Use DLC for aluminum and non‑ferrous; TiAlN/AlTiN for steels and high‑heat work; choose specialized coatings for nickel alloys.

Holder, Runout, and Presetting

Precision holders and presetting minimize runout and ensure accurate angle setup. Verify with ZOLLER or equivalent systems.

Custom Engineering Service

Rapid Prototyping to Automated Production

From single‑piece prototypes to automated batches, tight tolerances and repeatable performance are maintained with advanced grinding and metrology.

Solving Productivity Bottlenecks

Non‑standard tapered designs address chatter, poor finish, and cycle time constraints with variable helix, chipbreakers, reinforced cores, and tailored corner geometry.

Documentation and Traceability

Inspection records, presetting data, and measurement reports accompany shipments for traceability and efficient setup.

Related Tools and Accessories

Complementary Cutting Tools

Matching drills, reamers, boring tools, threading taps, woodworking cutters, and CNC inserts are available.

Collet Chuck Systems and Presetting

High‑precision collet systems and presetting support low runout and stable clamping, improving surface finish and tool life.

FAQs

What taper angle should I choose?

Use the smallest angle that meets draft for deep features. Increase angle when stiffness and feed rate are priorities.

Per‑side vs included angle—what’s the difference?

Per‑side refers to one wall. Included angle is the total between opposing walls. A 1.5° per‑side tool equals 3° included.

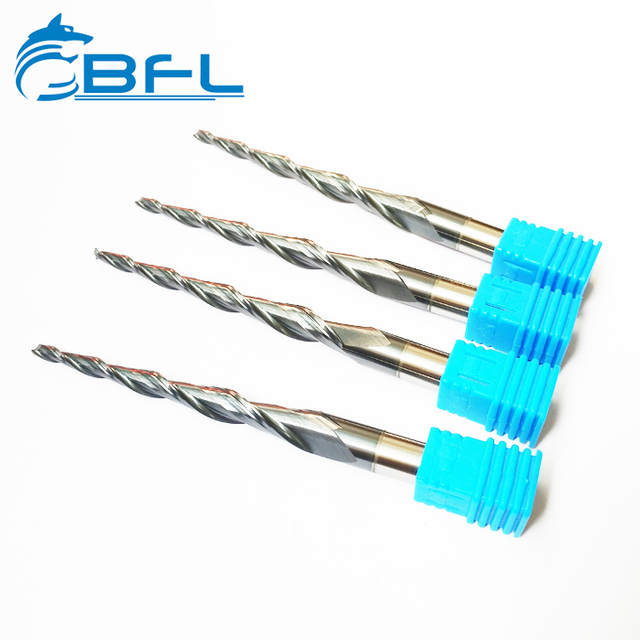

When to use a tapered ball nose?

Choose it for smooth 3D finishing and blended transitions in molds and dies. The taper adds stiffness for long reach.

How to minimize chatter?

Use variable helix, rigid low‑runout holders, reduced stick‑out, and adjusted feed/speed. A larger angle can add stiffness.
