Thread End Mill

Overview

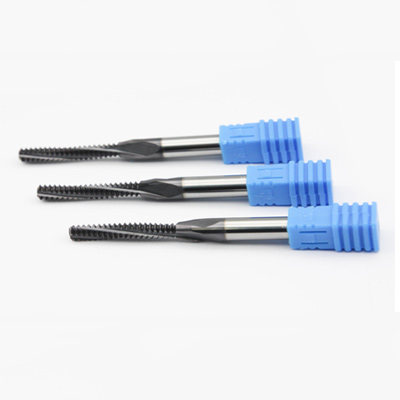

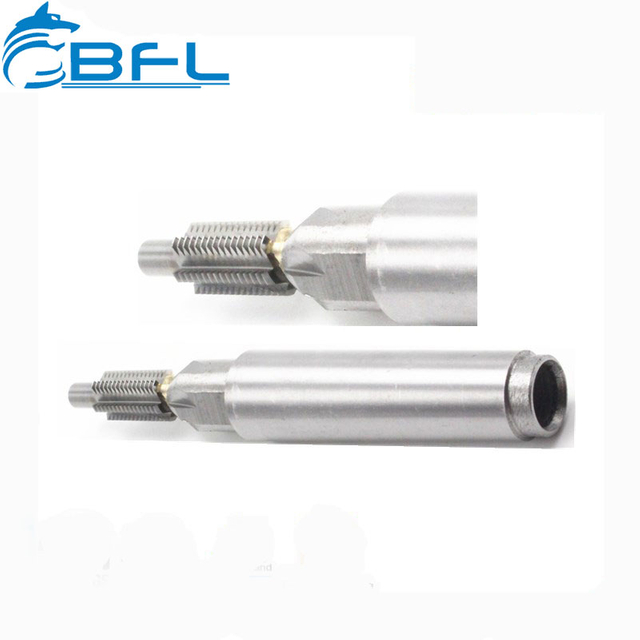

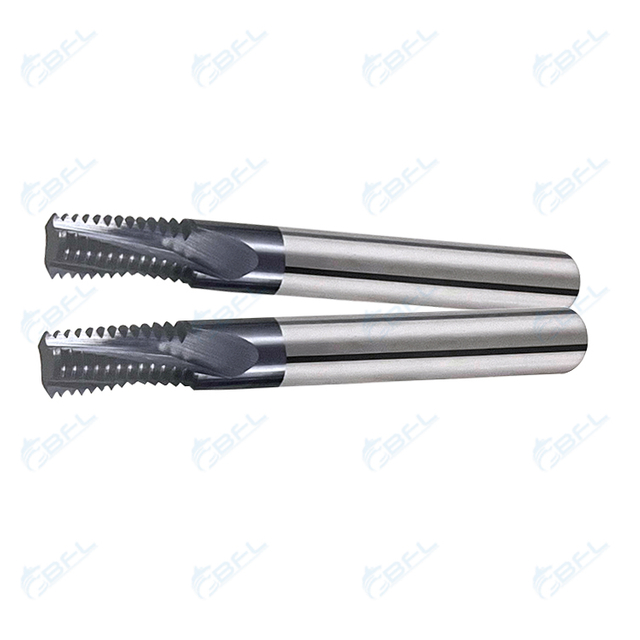

Thread end mills machine internal and external threads on CNC machining centers. Compared with tapping or single‑point turning, carbide cutters offer flexibility, safer operation in blind holes and hard materials, and consistent forms.

Key Advantages

• Precision and consistency: Manufactured on Swiss TTB Micro Grinding Centers, WALTER HELITRONIC, DECKEL, and ANCA systems for tight tolerances, sharp edges, and smooth finishes. Tools are measured on ZOLLER and inspected on PG1000. Production is managed under ISO 9001 (2023–2026) with SGS.


• Engineering‑driven customization: Geometry is tuned to material, machine, and clamping. Adjust pitch, lead, profile angle, crest/root radius, and chamfer. Supported forms include metric and unified, BSPP/BSPT, NPT/NPTF, ACME, trapezoidal, buttress, single or multi‑start, left or right‑hand, and internal or external threads.


• Stable tool life and efficiency: Micrograin carbide, controlled edge preparation, and application‑specific coatings help maintain edge integrity. Single‑row and multi‑row designs improve chip evacuation and can reduce cycle time.


• Broad material coverage: Solutions for aluminum, copper, stainless steel, titanium, hardened steels, and superalloys on 3‑, 4‑, or 5‑axis machines.

Product Range and Specifications

• Standard tools: Metric M3–M20 and common UNC/UNF sizes are available in single‑point and multi‑tooth designs. Features include optimized rake/relief, accurate 60° profiles, shank h6 tolerance, and TiAlN or AlTiN coatings.


• Pipe and specialty threads: Options for 55° BSP and 60° tapered NPT/NPTF with controlled lead accuracy. Internal and external applications are supported with taper engagement and typical depth targets for pipe standards.


• Custom designs: Build‑to‑print or engineered ACME, trapezoidal, buttress, partial‑profile, and variable‑pitch threads. Specify corner radius, chamfer step, cutting length, and shank dimensions to match the process.

Technical Features

• Substrate and coatings: Sub‑micron grain tungsten carbide enhances strength and edge retention. Coatings include TiAlN, AlTiN, TiSiN, and DLC for non‑ferrous work. Polished flutes aid chip evacuation. Coolant‑through is available on selected models for deeper threads.


• Dimensional control and inspection: Runout is typically controlled to ≤3 μm with shank h6. Profile angles, crest/root radii, and pitch are held to tight limits. Inspection documents can be provided on request.

Machining Guidance

• Use helical interpolation with a correctly sized pilot hole.


• Prefer climb milling to improve flank finish.


• Apply moderate radial engagement per pass.


• Use step‑down strategies for deeper features.


• Adjust speed and feed to the material and coating.

Comparison with Tapping/Turning

• One tool can produce multiple diameters within the same standard by changing toolpaths, reducing inventory.


• Lower torsional load improves safety in blind holes and hardened materials.


• Regrindable carbide cutters and consistent forms help lower cost per part over time.

Compatibility and Tooling

Pair the tool with high‑precision collet chucks to minimize runout and maintain form accuracy. Stable clamping promotes tool life and surface quality.

Quality and Certifications

Production follows ISO 9001 (2023–2026) with SGS certification. Documented checkpoints cover grinding, measurement, and packing.

Ordering

To request a custom cutter, provide thread standard, pitch, major/minor diameters, internal or external, workpiece material, machine type, holder, thread depth, tolerance class, and any chamfer or special features. Drawings or samples can speed engineering and validation.

Lead Times and Support

Manufacturing in Changzhou, Jiangsu enables reliable lead times for standard and custom tools. International supply and technical assistance are available; contact us to discuss your application or request a quote.
