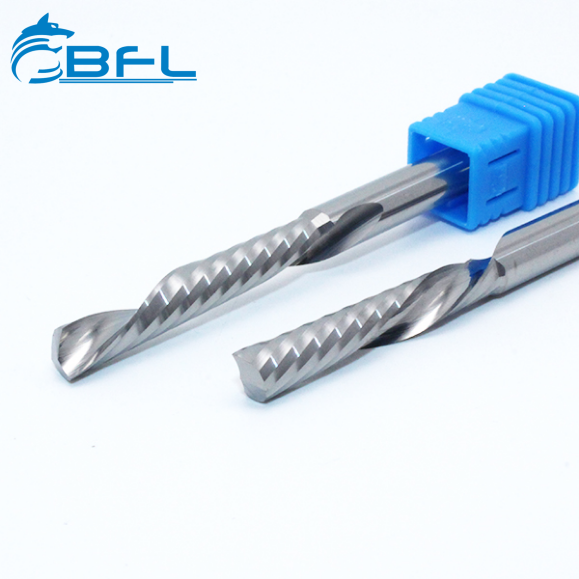

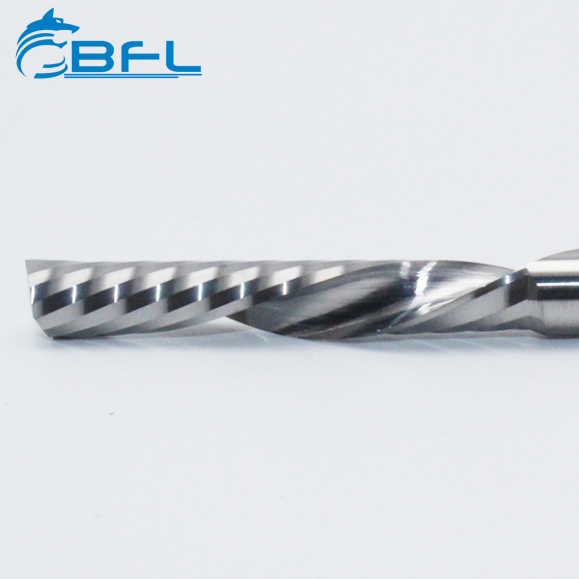

Single Flute End Mill

Overview

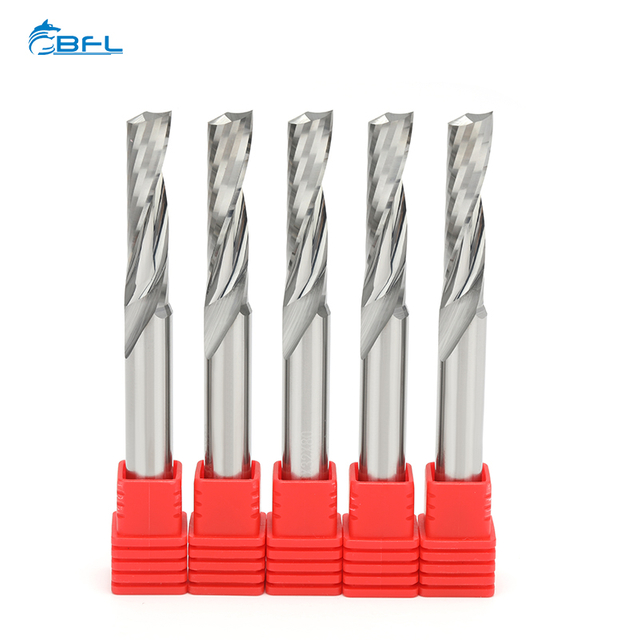

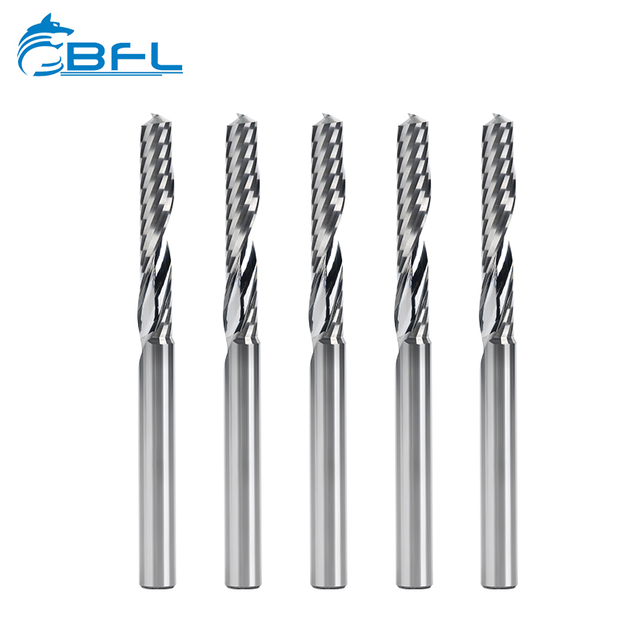

Our single‑flute end mill series is designed for fast chip evacuation and high‑feed machining in aluminum, non‑ferrous metals, plastics, acrylics, wood, and composites. Made from premium cemented carbide and precision‑ground on TTB Micro, WALTER HELITRONIC, DECKEL, and ANCA centers, these tools deliver clean edges, stable dimensions, and dependable life on CNC mills and routers. Custom variants are available to match your material and process, based on drawings or samples.

When to Choose a Single‑Flute End Mill

• Gummy non‑ferrous alloys prone to welding on the edge.


• Thin‑wall parts that demand low heat and clean top surfaces.


• Acrylics and plastics where melting and burring must be minimized.

Key Benefits

• Large flute volume and high rake for efficient chip flow at high speeds.


• Polished flutes and controlled helix to limit built‑up edge and improve finish.


• Rigid shanks, low runout, and balanced geometry for smooth cutting at high RPM.


• Automated grinding and software‑guided QC for batch consistency.


• Engineering support and flexible manufacturing in Changzhou, Jiangsu.

Geometry and Variants for Single‑Flute End Mills

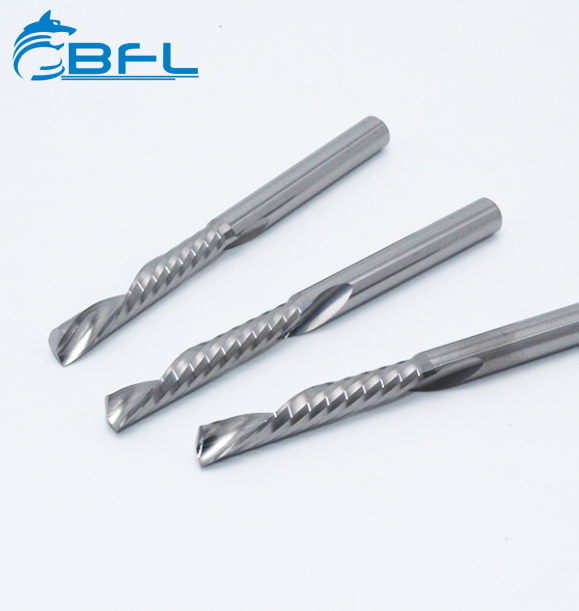

• Up‑cut, down‑cut, or neutral designs to match chip evacuation or top‑edge quality.


• Flat end, corner radius, and ball nose profiles for slotting, strength, or 3D work.


• Relief and edge prep tuned to lower cutting forces and extend life.


• Flute polish options to reduce friction in sticky materials.

Materials and Applications

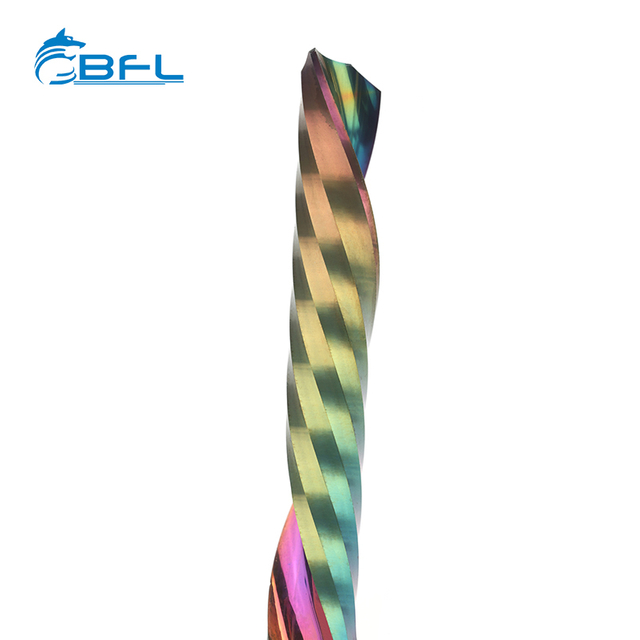

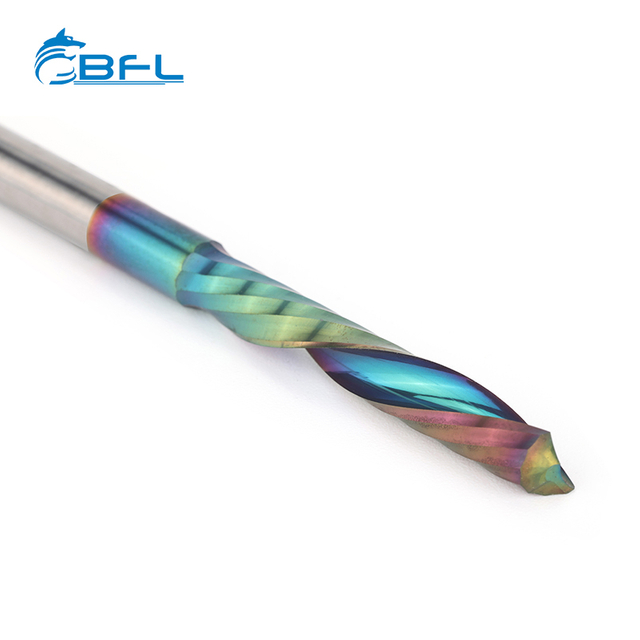

• Aluminum alloys (6061, 7075): pair with DLC or TiB2 to reduce adhesion during long cycles.


• Brass and copper: ZrN coating supports stable cutting and consistent color.


• Plastics, acrylic, polycarbonate, and composites: sharp edges cut cool; down‑cut versions protect laminates.

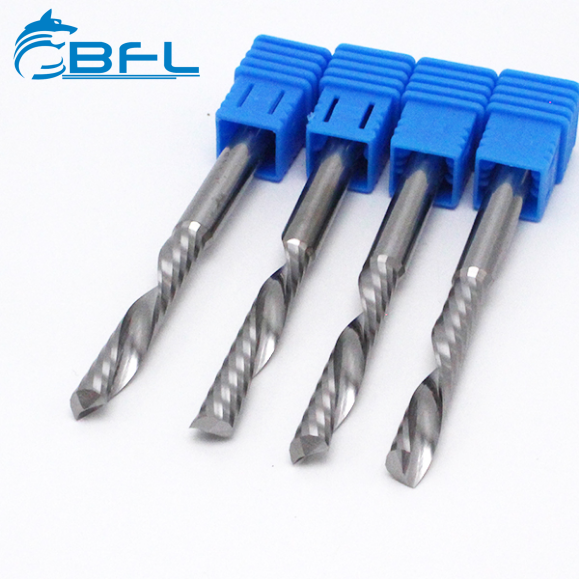

• Wood and router work: geometry designed for clean entry/exit in hardwoods and engineered boards.

Specifications for Single‑Flute End Mills

• Diameters: 0.5–20 mm (1/64\"–3/4\")


• Shanks: 3, 6, 8, 10 mm


• Lengths: short, regular, and long‑reach


• Tolerances: diameter ±0.005 mm; shank h6


• Runout and concentricity tightly controlled


• Substrate: micro‑grain cemented carbide


• Coatings: mirror‑polished uncoated, DLC, ZrN, TiB2

Grinding and Finish Quality

Ground on TTB Micro and WALTER lines with multi‑axis strategies, these cutters receive refined reliefs and targeted edge preparation. The result is lower cutting forces and glossy surfaces on aluminum and acrylic.

Performance Guidance

• Aluminum: high surface speed, aggressive feed per tooth with air blast or coolant.


• Plastics and acrylic: moderate speed, sharp edges, minimal heat; avoid dwell.


• Wood: adjust feed to grain direction; ensure strong hold‑down.


• Toolholding: use high‑precision collet chucks; presetting and balancing improve stability at elevated spindle speeds.

Quality Assurance

Each tool is inspected on ZOLLER presetting systems and PG1000 video measuring to verify sub‑micron accuracy. ISO9001 and SGS certifications support traceability and consistent geometry.

Custom Single‑Flute End Mill Solutions

Provide drawings or samples. Our team configures geometry, coatings, and edge prep to meet finish, tolerance, and throughput targets for difficult materials and complex features.

Practical Use Scenarios

• High‑speed slotting in aluminum with air blast to prevent re‑cutting.


• Acrylic edge finishing with down‑cut geometry for chip‑free top surfaces.


• Wood profiling on CNC routers with reduced tear‑out and clean shoulders.

Availability and Support

Choose from standard models for quick delivery or request a tailored design with defined lead times. Contact us for tool selection, recommended parameters, and troubleshooting.
