Compression End Mill

Compression End Mill Category Overview

Our Compression End Mill range is built from fine‑grain solid carbide to deliver clean, tear‑out‑free edges in laminated plywood, MDF, veneers, and thermoplastics. The up/down spiral geometry compresses fibers from both faces, enabling through‑cuts with crisp top and bottom finishes on CNC routers. High stability, tight tolerances, and mirror‑like cutting edges help improve efficiency and reduce post‑processing.

How Compression Geometry Works

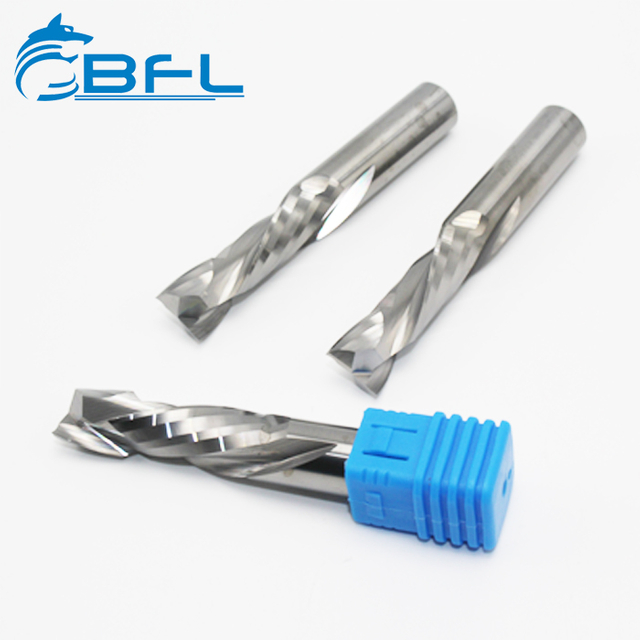

These cutters combine a short downcut section near the tip with an upcut section above it. When full cutting depth engages both, fibers are pushed inward from each surface, preventing chip lift and chipping on laminates and wood composites. The spiral compression action supports clean edges and consistent part quality.

Materials and Applications

Best suited to plywood, MDF, melamine, HPL, OSB, veneers, and plastics such as ABS, acrylic, and polycarbonate. Typical uses include cabinetry, furniture, flooring, sign‑making, panel processing, and nesting on CNC routers.

Advantages

Built with sub‑micron geometry control and sharp, durable cutting edges, these tools maintain consistent cut quality and surface finish in high‑volume runs. Advanced grinding and rigorous inspection help minimize runout, support demanding router operations, and reduce rework.

Grinding and Geometry Control

Manufactured on Swiss TTB Micro Grinding Centers, German WALTER Helitronic, DECKEL S22/SRO, and ANCA platforms. The geometry features a balanced helix, accurate downcut length, and optimized flute clearance for wood and plastics. The result is stable cutting forces, reliable chip flow, and extended tool life in laminates and composites.

Certified Consistency and Measurement

Each batch is verified on ZOLLER measuring and presetting systems, PARLEC/PG1000, MRPG1000, and EOUER instruments. ISO 9001 (2023–2026) and SGS certifications support repeatability in diameter, concentricity, and cutting edge integrity across lots.

Substrate and Coatings

Fine‑grain solid carbide delivers rigidity and edge retention. DLC or TiAlN coatings help resist resin build‑up and heat in melamine and composite machining. Uncoated or polished O‑flute options are available where plastics require high‑gloss edges.

Options and Specifications

Select from 2‑flute general‑purpose designs, mortise profiles for pocketing, and specialized O‑flute up/down variants for plastics. Standard diameters, shank sizes, and downcut lengths cover thin to thick panels so the compression effect engages properly.

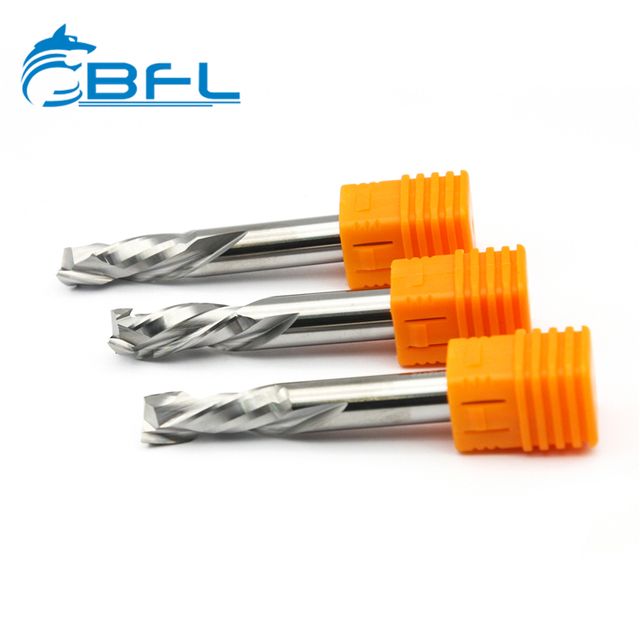

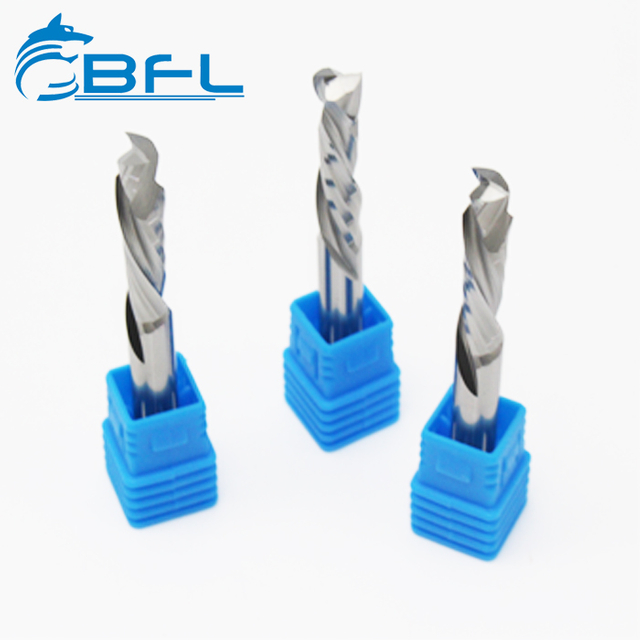

2‑Flute Designs

A versatile choice for through‑cuts in plywood, MDF, and melamine. Two flutes balance edge finish, chip evacuation, and feed rate to minimize fuzzing and reduce sanding.

Diameter and Shank Options

Available in common diameters such as 1/4", 3/8", 1/2", 6 mm, 8 mm, and 10 mm with matched shanks for router collets. Tight shank tolerance supports low runout with high‑precision collet chuck systems.

Downcut Length Variants

Short downcut sections protect thin laminates. Longer downcut lengths enable full‑depth engagement in thick panels to compress both top and bottom edges.

Mortise Profiles

Designed for slotting and pocketing in laminated stock. A shorter cutting length still compresses fibers to minimize chipping during plunging and lateral moves.

Spiral O‑Flute Up/Down Tools for Plastics

Specialized geometry for acrylic and polycarbonate where high‑gloss edge quality is the priority. The up/down action reduces burrs, while the O‑flute supports smooth chip flow in gummy plastics.

Corner and Edge Options

Square corner, corner‑radius, or micro‑chamfer options help reduce edge breakout on fragile laminates. Edge honing is controlled to balance sharpness and durability.

Performance and Usage Guidance

For tear‑out‑free through‑cuts, ensure both the downcut and upcut sections are engaged at the programmed depth. Match feed rates to chip load, use stable fixturing, and verify runout with quality collets for a consistent finish and tool life.

Setup and Fixturing

Use vacuum tables, spoilboards, and rigid clamping to prevent part movement. Pair tools with high‑precision collet systems to minimize runout and maintain true edge paths.

Feeds and Speeds

Router spindles run at high RPM. Adjust feed rates to maintain proper chip thickness and avoid heat in resin‑rich laminates. Request application‑specific guidance based on tool diameter, flute count, and material.

Clean Edge Techniques

For thin panels, select a shorter downcut length. For pocketing, use mortise designs. Ensure sufficient depth per pass so both compression sections engage and the effect is maintained.

Custom Solutions

We engineer tools per drawings or samples and machining requirements. Define material, process, machine type, and clamping, and we optimize flute geometry, downcut length, coatings, and corner design. Contact us to discuss your application or request a quote.

Application‑Specific Designs

From high‑feed nesting to delicate veneer finishing, we tune helix angles, variable pitch, and edge prep to balance cut quality and throughput. Specialized chip evacuation profiles are available for dust‑laden composites.

Stable, Cost‑Optimized Tooling

Precision grinding paired with robust substrates helps break production bottlenecks, extend tool life, and reduce rework on laminate and composite panels.

Quality Assurance and Inspection

Every tool is measured for diameter, runout, and cutting edge form on ZOLLER and PG1000 systems. Controlled geometry and verified tolerances support consistent surface finishes and dependable performance.

Edge Integrity and Surface Finish

EOUER test instruments and internal process audits help confirm edge sharpness and uniformity, supporting mirror‑like finishes on both faces of laminated panels.

Related Tools and Accessories

Complement these cutters with high‑precision collet chuck systems, solid carbide drills, threading tools, and forming cutters to streamline router setups and panel workflows.

Category‑Specific Notes for Compression Geometry

Compression geometry relies on both cutting sections being active. For material thinner than the downcut length, consider a downcut or straight‑flute alternative to avoid surface lift. DLC coatings can mitigate resin adhesion in melamine and help control heat.
