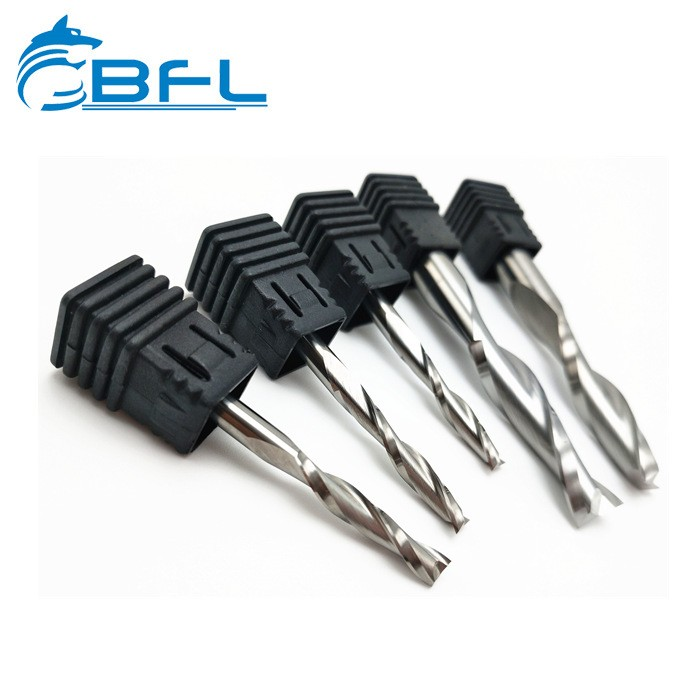

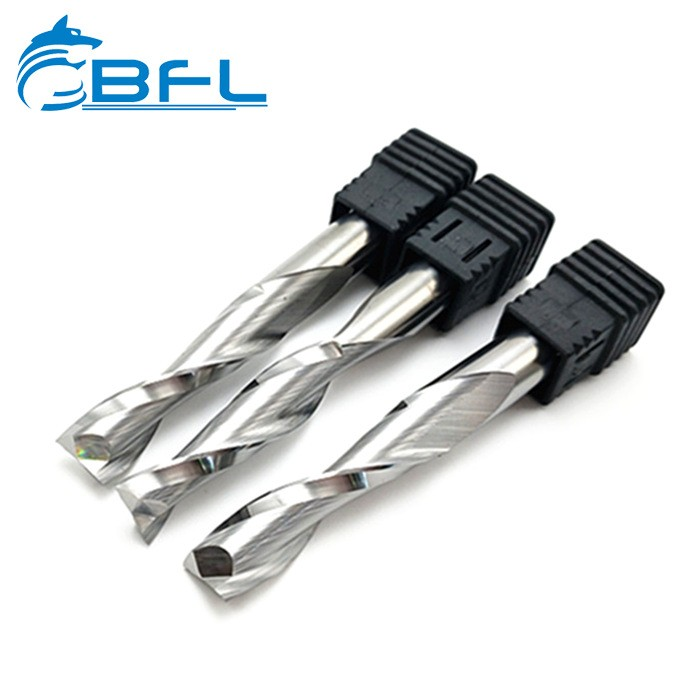

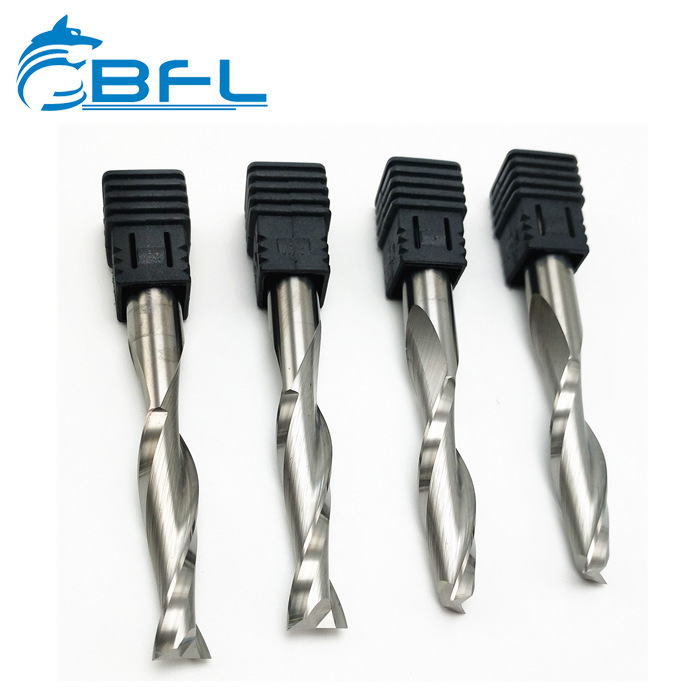

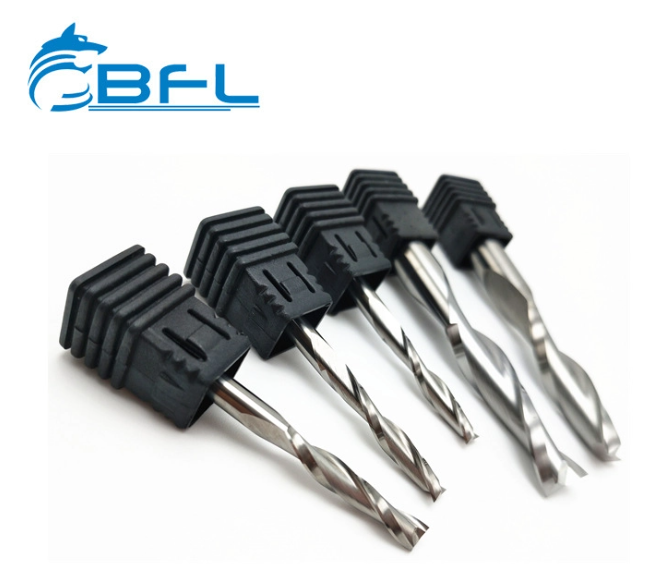

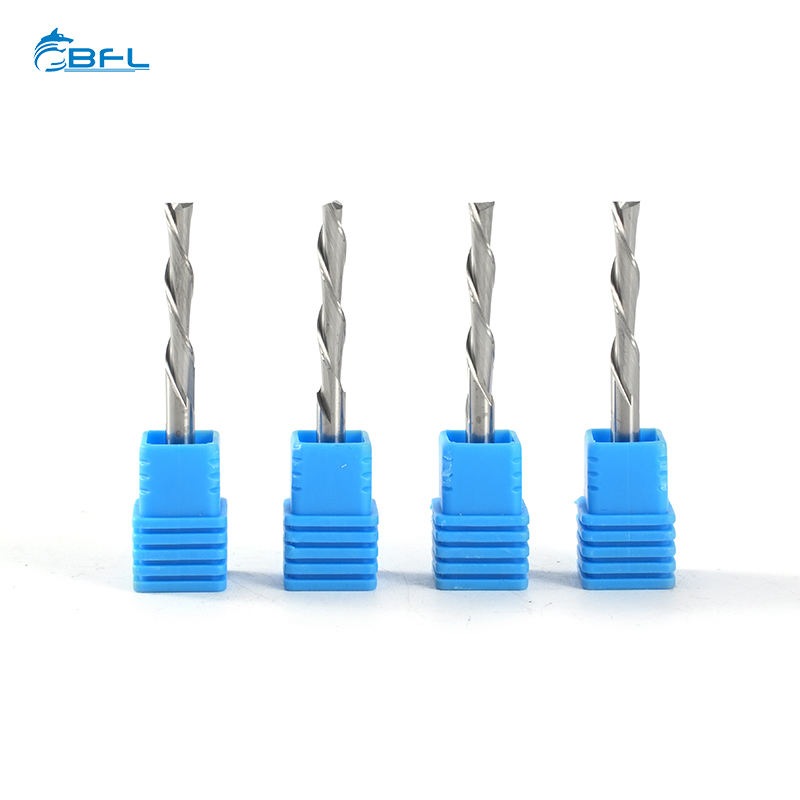

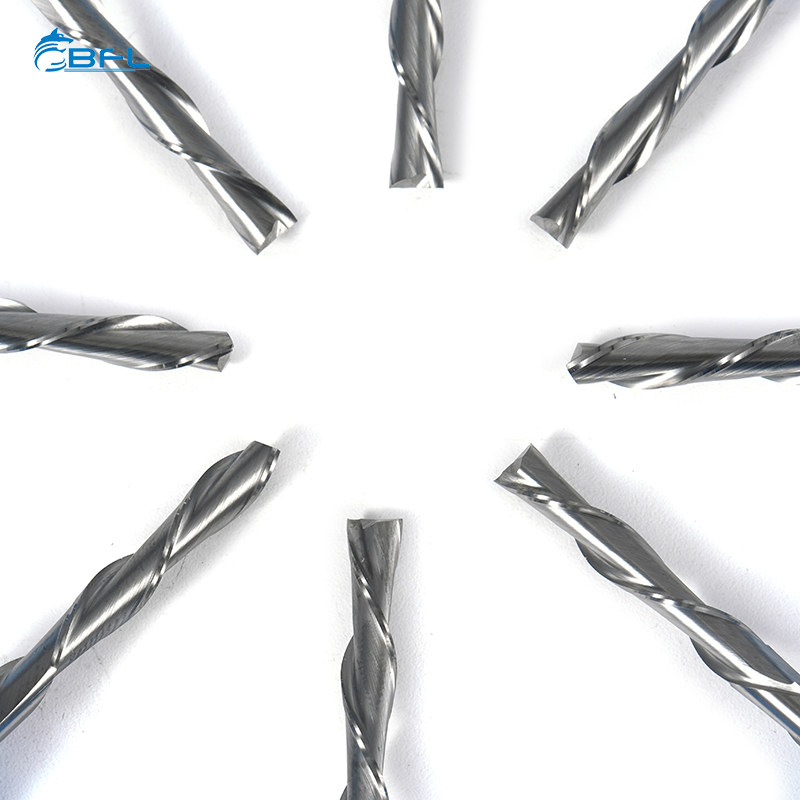

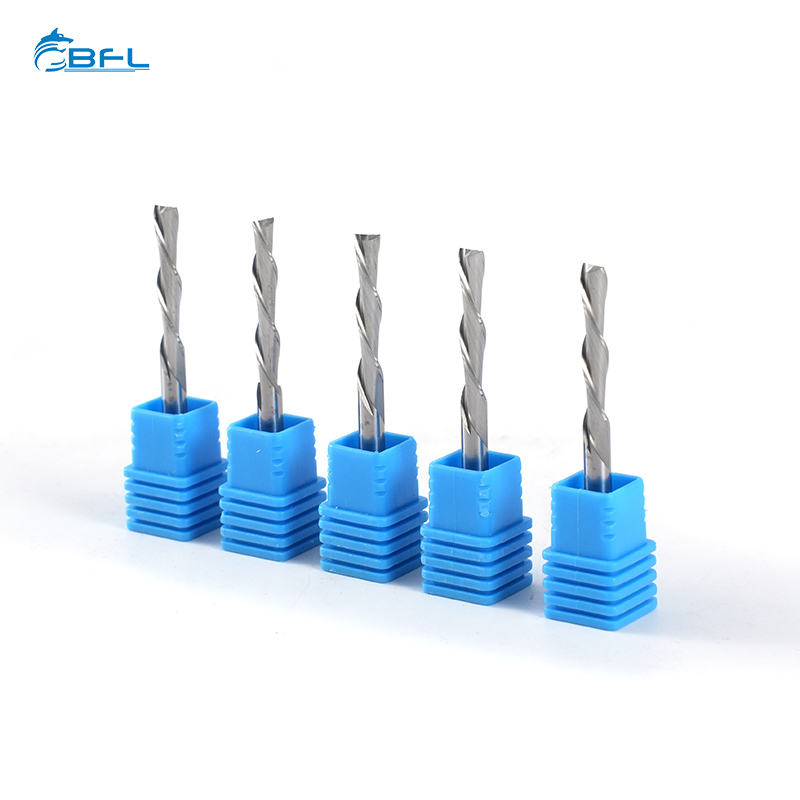

This end mill features a two-flute spiral configuration with up-cut geometry, engineered for woodworking machining operations. The up-cut design directs chip evacuation upward and away from the workpiece surface, reducing material buildup at the cutting zone. The spiral flute formation creates a continuous cutting action that minimizes tool vibration during operation. Each cutting edge maintains consistent contact with the workpiece material throughout the machining cycle.
The tool geometry facilitates chip removal during high-speed routing operations. This upward chip evacuation pattern helps prevent re-cutting of removed material particles. The two-flute configuration balances material removal rates with surface finish quality across different wood densities. Industrial woodworking facilities utilize this tool type for both roughing and finishing operations on various wood-based materials.
PRODUCT CODE | FLUTE DIAMETER (mm) | FLUTE LENGTH (mm) | OVERALL LENGTH (mm) | SHANK DIAMETER (mm) |
BFL-1152-6-15-6 | 6 | 15 | 55 | 6 |
BFL-1152-6-20-6 | 6 | 20 | 55 | 6 |
BFL-1152-8-25-8 | 8 | 25 | 70 | 8 |
BFL-1152-10-25-10 | 10 | 25 | 70 | 10 |
BFL-1152-12-32-12 | 12 | 32 | 80 | 12 |
BFL-1152-12-42-12 | 12 | 42 | 90 | 12 |
BFL-1152-12-50-12 | 12 | 50 | 100 | 12 |
Double Flute-Solid Carbide Low Helix Fisher-Upcut. Designed for cutting all natural wood, man-made wood composites, hard woods, particle board and plywood. The tool will produce an extremely smooth edge cut . Remark: Custom sizes available per your specifications. | ||||
Delivery Time | 3-10Days |
Payment Terms | T/T, Western Union, Paypal, AliExpress |
Shipping Terms | DHL. FEDEX, UPS, TNT, EMS.etc. according to your demand |
Main Markets | Thailand, Malaysia, Singapore, Philippines, Indonesia, Italy, Spain, Russia, Australia, Brazil, USA, Mexico, Czech, Poland, Germany, Turkey and so on |
Custom dimensional specifications are available for commercial procurement requirements. Manufacturing facilities may request modifications to flute length, overall length, shank diameter, or flute diameter parameters to match specific CNC machine setups and production requirements. Lead times for custom orders align with standard production schedules.
The cutting tool body is constructed from solid carbide material. This substrate provides consistent hardness properties throughout the tool cross-section. The manufacturing process includes precision grinding operations to achieve the specified flute geometry and edge sharpness. Each tool undergoes dimensional verification at multiple production stages.
Every end mill receives dimensional inspection before packaging. This verification process confirms that all specified parameters fall within the acceptable tolerance ranges. The inspection includes measurements of flute diameter, shank diameter, flute length, and overall length dimensions. Tools that do not meet specification requirements are removed from production inventory.
This end mill is designed for machining natural hardwoods, softwoods, man-made wood composites, particle board, and plywood materials. Each material type requires appropriate feed rates and spindle speed settings, which operators determine based on their specific machine capabilities and production requirements. The tool geometry performs effectively across these material categories when operated within recommended parameter ranges.
Commercial woodworking facilities utilize these tools for cabinet manufacturing, furniture production, joinery operations, and general wood routing applications. The up-cut configuration is particularly suitable for through-cut operations where clean bottom-edge finish is required. Production facilities may select appropriate tool dimensions based on their specific material thickness and cutting depth requirements.
Spindle speed settings depend on tool diameter, material type, and machine capabilities. Operators should consult their CNC machine documentation for recommended speed and feed rate parameters based on their specific equipment and material combinations.
Solid carbide end mills can undergo resharpening processes when cutting edges show wear. Professional tool sharpening services maintain the original geometry specifications during the reconditioning process. The number of possible resharpening cycles depends on the extent of tool wear and remaining carbide material.
Standard production orders typically ship within 3-10 business days. Custom dimension orders may require additional production time based on specification complexity and current production volume. Shipping transit times vary by destination and selected carrier service.
Most woodworking operations with carbide end mills proceed without liquid cooling systems. Dry machining is the standard practice in woodworking applications. Some facilities may use dust extraction systems to remove wood particles from the cutting area during operation.
