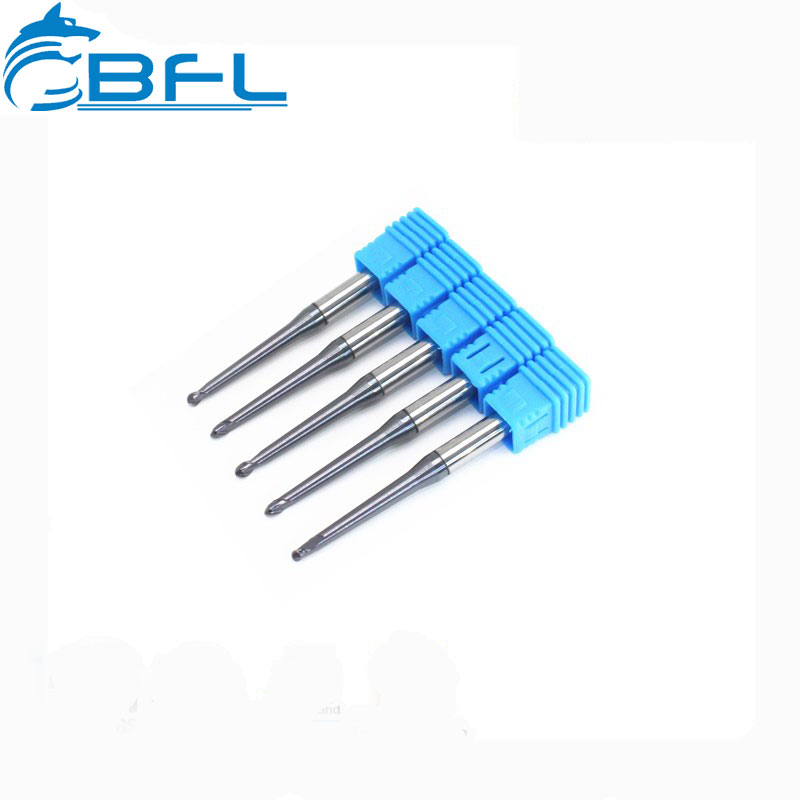

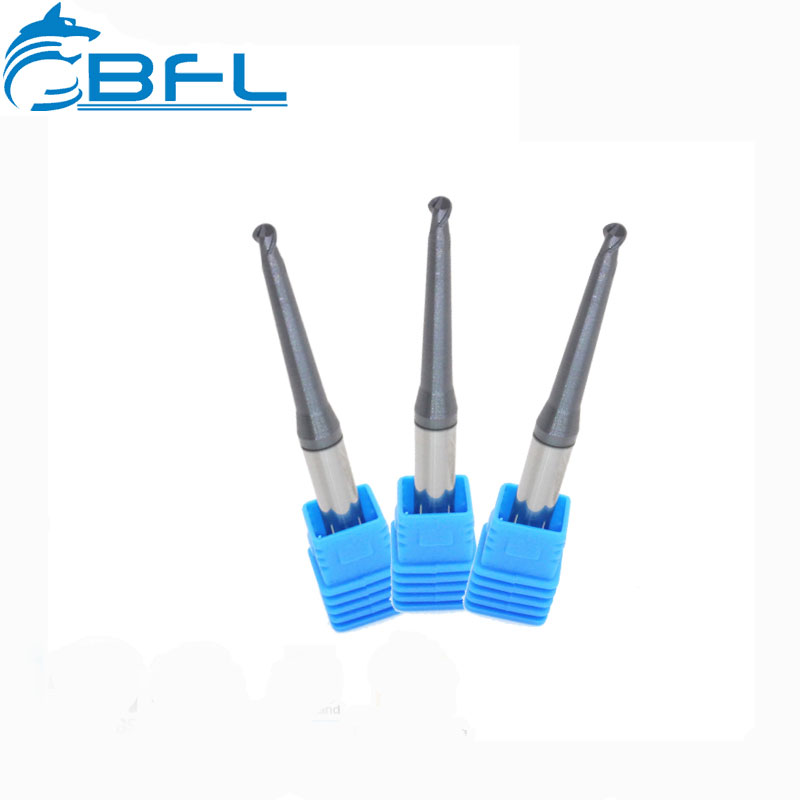

The BFL CNC carbide long neck short 2 flutes ball nose deep groove cutter is designed for precision machining operations requiring extended reach in deep cavity and groove applications. This tool combines the rigidity of carbide construction with a specialized geometry that minimizes deflection while maintaining cutting efficiency. Engineered for CNC milling machines, this cutter delivers consistent performance across a range of ferrous and non-ferrous materials.
Manufactured from solid carbide, this cutter provides wear resistance suitable for continuous machining operations. The carbide substrate maintains edge integrity under high cutting temperatures, reducing the frequency of tool changes during production runs. Standard coatings are available to further enhance performance in specific material applications.
The extended neck design allows for deep cavity machining without interference from the tool shank. The short flute length increases tool rigidity, reducing vibration and improving surface finish quality in deep groove operations. This geometry balances reach and stability, making it suitable for applications where standard length tools cannot access.
The two-flute design provides optimal chip evacuation in slotting and profiling operations. The ball nose end creates smooth contoured surfaces and is ideal for 3D machining, mold making, and die sinking applications. The symmetrical flute design ensures balanced cutting forces, reducing tool wear and extending service life.
Parameter | Value Range | Unit |
Cutter Diameter | 1.0-12.0 | mm |
Neck Length | 3×D-10×D | - |
Overall Length | 50-150 | mm |
Shank Diameter | 3-12 | mm |
Flute Length | 1.5×D-3×D | - |
Number of Flutes | 2 | - |
Material | Solid Carbide | - |
Coating Options | TiN, TiCN, TiAlN | - |
Shank Tolerance | h6 | - |
This long neck ball nose cutter is suitable for use in various industrial applications including mold and die manufacturing, aerospace component production, automotive parts machining, and general precision engineering. It effectively machines materials such as aluminum, copper, brass, steel, stainless steel, and cast iron. The deep groove capability makes it particularly useful for manufacturing injection molds, die casts, and complex mechanical components.
BFL offers consistent manufacturing standards across all production batches, ensuring interchangeability between tools. Standard sizes are available for immediate shipment, while custom dimensions can be produced to meet specific application requirements. Volume pricing is available for commercial procurement orders, with flexible delivery schedules to support business operations. All tools undergo dimensional inspection before shipment to verify compliance with specified tolerances.
This carbide cutter is suitable for machining aluminum, copper, brass, carbon steel, alloy steel, stainless steel, and cast iron. Different coating options are recommended for optimal performance with specific material groups.
Recommended spindle speeds vary based on cutter diameter, material being machined, and cutting depth. General guidelines range from 2,000 RPM for 12 mm diameter cutters in steel to 20,000 RPM for 1 mm diameter cutters in aluminum. Always refer to the cutting parameter chart provided with your order.
Yes, custom neck lengths, overall lengths, and special coatings are available for industrial applications. Minimum order quantities apply for custom tool specifications. Contact our technical team to discuss your specific requirements.
