Carbide Insert

Overview

Our range of indexable inserts is engineered for consistent results in CNC turning and milling. Tough tungsten carbide substrates and advanced PVD/CVD coatings support long tool life and clean surface finishes.

Definition

A carbide insert is a replaceable, indexable cutting tip made from sintered tungsten carbide. By rotating to a fresh edge, machining stays uninterrupted and cost per part is controlled. Geometry, chipbreakers, and edge prep are tuned to balance sharpness and strength.

Key Advantages

Advanced grinding on Swiss TTB and multi‑axis WALTER/DECKEL/ANCA lines delivers tight tolerances and smooth edges. ZOLLER and PG1000 inspection confirms accuracy and batch consistency. Certified processes (ISO9001, SGS) support traceable, repeatable production.

Applications

These tools cover roughing and finishing in turning, milling, threading, grooving, and boring across ISO P/M/K/N/S/H materials. They help optimize chip control, cycle time, and dimensional accuracy in automotive, aerospace, mold & die, and general machining.

Types by Operation

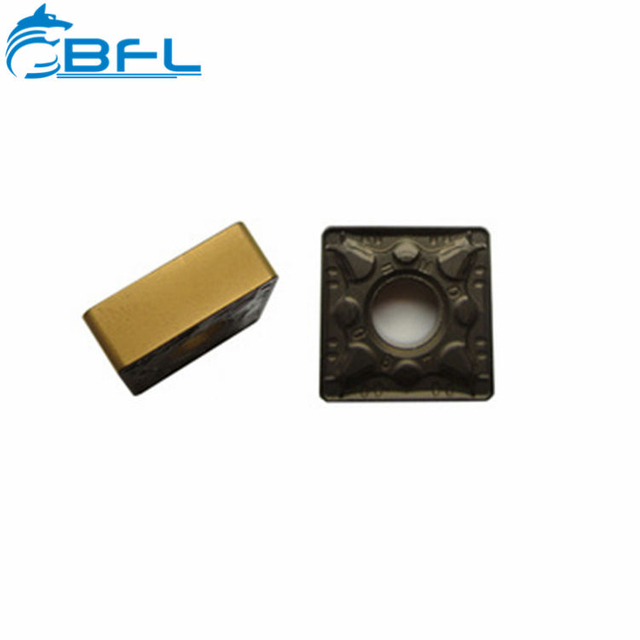

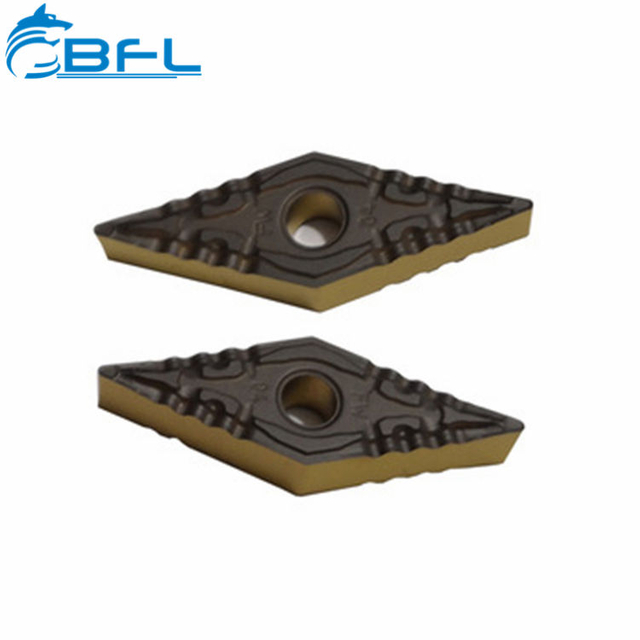

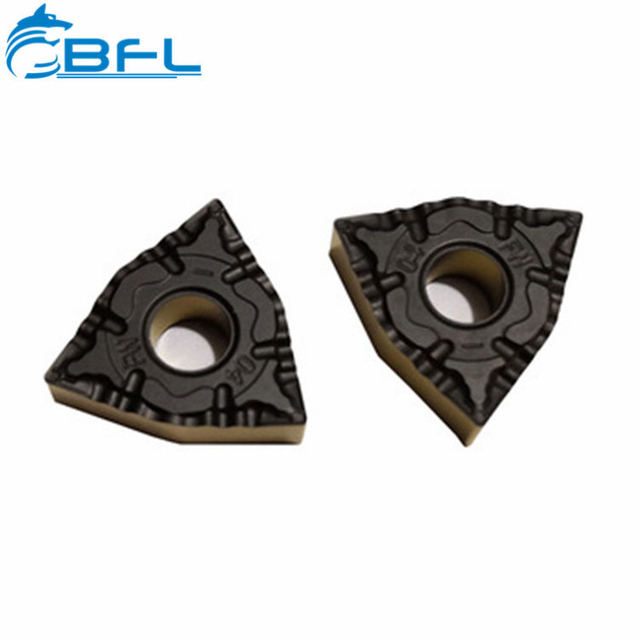

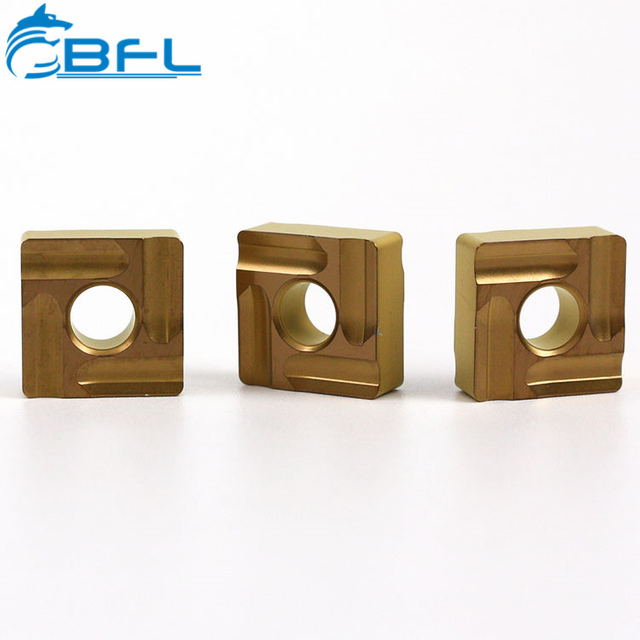

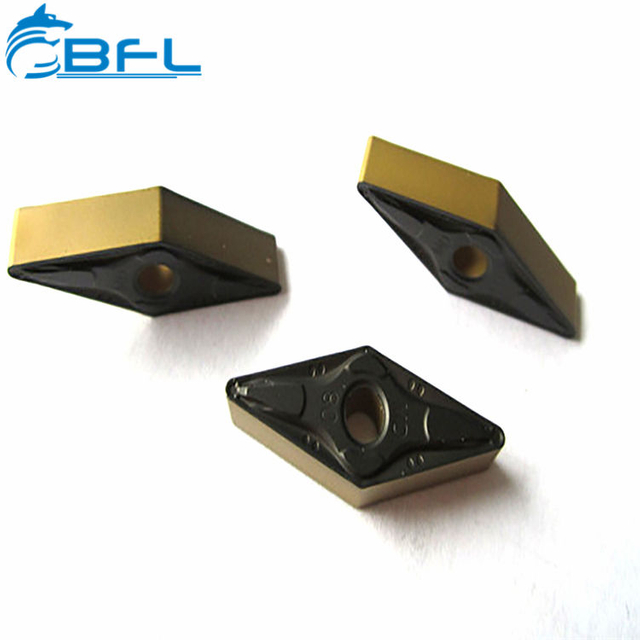

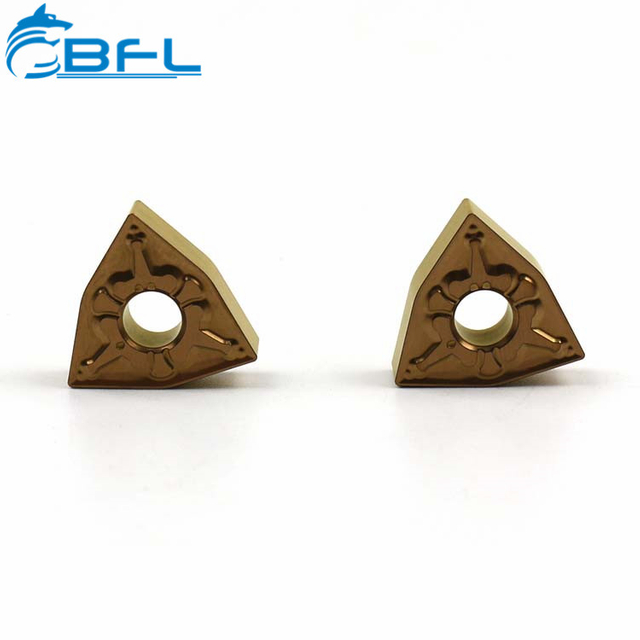

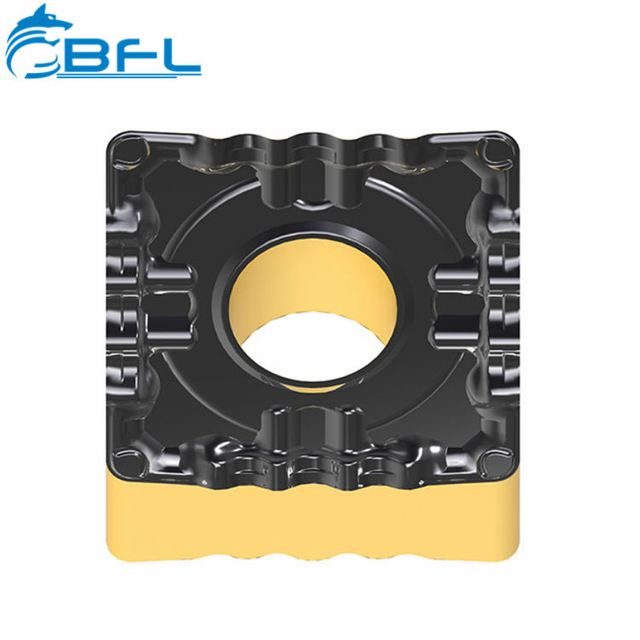

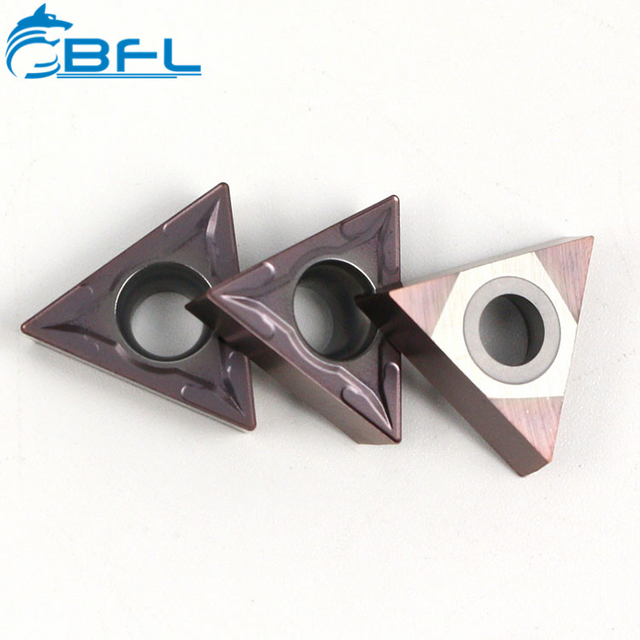

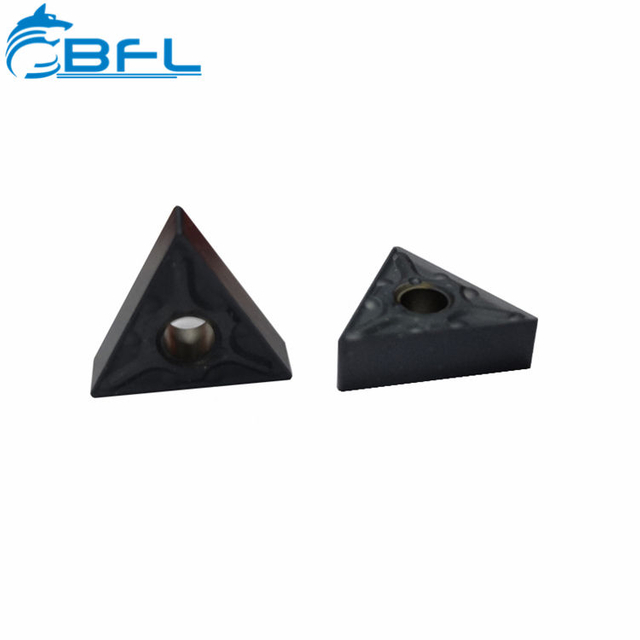

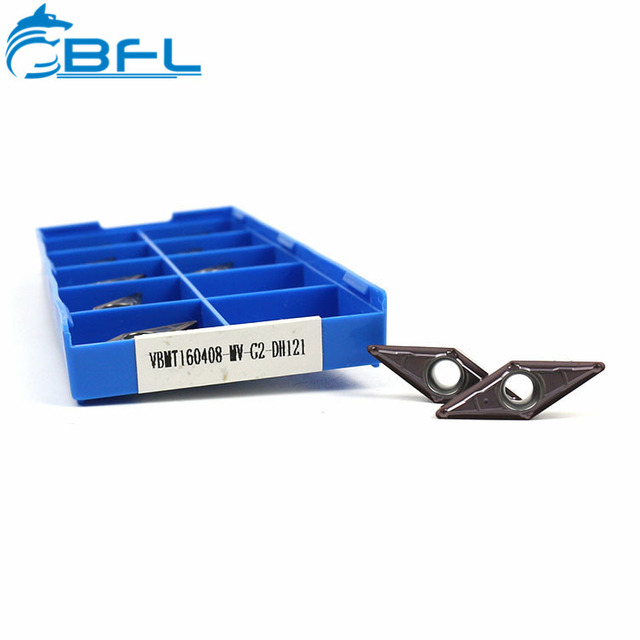

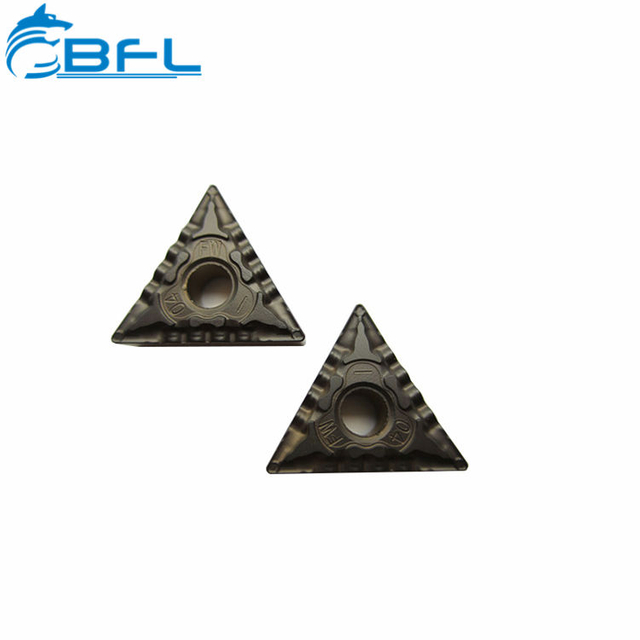

• Turning: CNMG, DNMG, SNMG, WNMG, VNMG, CCMT/CCGT for positive or negative rake, with multiple nose radii and chipbreakers for roughing or fine finishing.

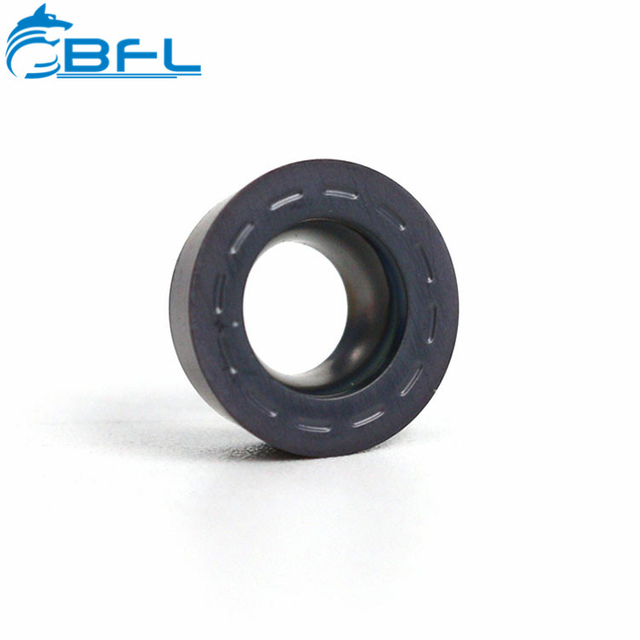

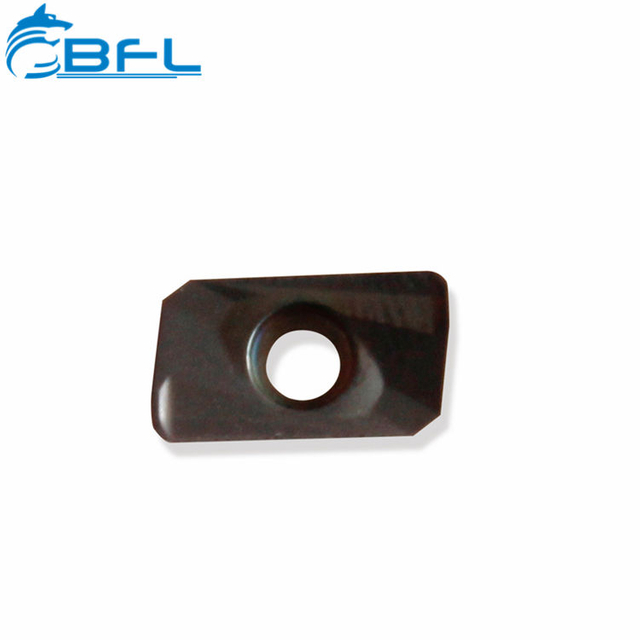

• Milling: APKT, SEKT, XDKT, RCKT geometries support high metal removal and stable chip formation.

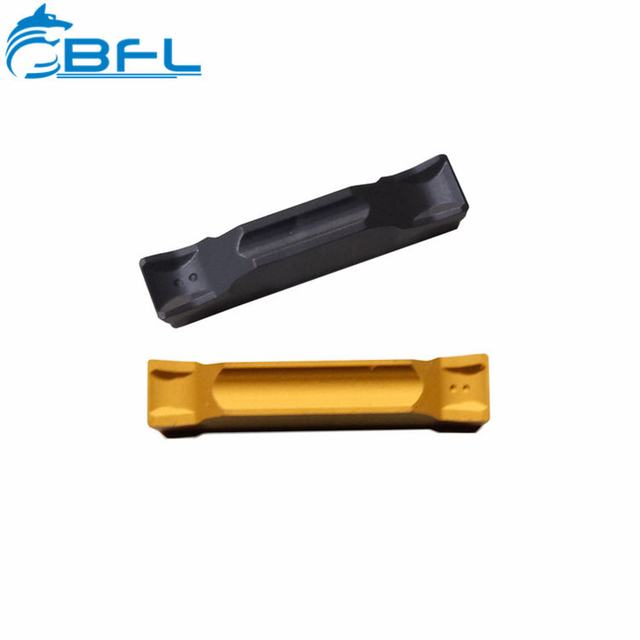

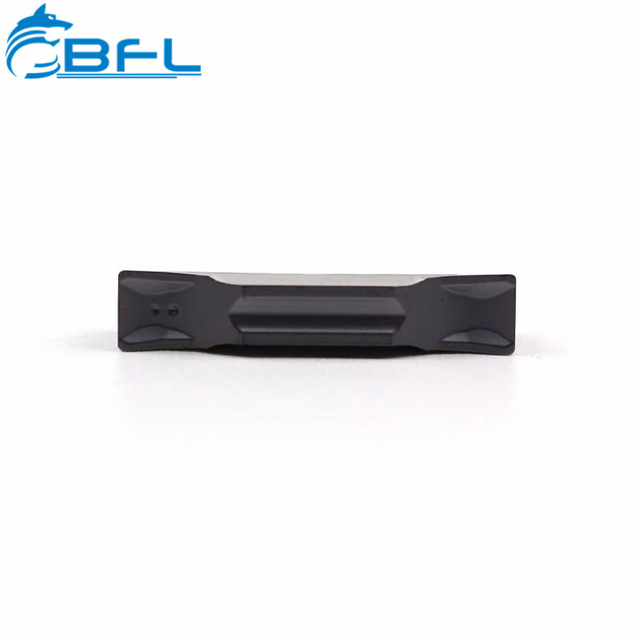

• Threading & Grooving: Metric/UN threading profiles and controlled chipbreakers for clean forms, reduced burrs, and repeatable sizes.


• Boring: Inserts matched to common boring bars for stable seating and low runout.

Geometry & Designations

Read ISO 1832/ANSI designations for shape, clearance, tolerance, thickness, and nose radius to ensure holder compatibility. Wiper features can improve surface roughness at maintained feed rates.

Materials & Coatings

Grades aligned to ISO P/M/K/N/S/H balance hardness and toughness for steels, stainless, cast iron, aluminum, superalloys, and hardened materials. PVD TiAlN/AlTiN suits higher speeds and interrupted cuts; CVD Al2O3/TiCN resists abrasion in steel and cast iron. Polished rake faces and low‑adhesion finishes help minimize built‑up edge in non‑ferrous materials.

Identification & Toolholder Fit

Use the designation to match shape and size. Check hole type, seat style, and clamp method for stable seating and reliable indexing.

Selection Guide

Match grade and coating to the workpiece. Set nose radius, chipbreaker, and rake to suit rpm, feed, and depth of cut. Use wiper features for better Ra values, and choose tougher edges for heavy cuts or sharper edges for fine finishes.

Quality Assurance

Swiss TTB micro‑grinding and multi‑axis grinding deliver sub‑micron edge accuracy. ZOLLER, PG1000, and PARLEC systems verify tolerances and preset dimensions for repeatable results.

Custom Options

Material‑specific geometries are available, including polished, sharp edges for aluminum and low‑adhesion coatings for stainless. Special chipbreakers and selective edge hone/chamfer options improve evacuation and reduce chipping in tough alloys.

Compatibility & Specifications

Compatible with common ISO/ANSI toolholders using standard seats and clamps. Shapes, sizes (IC), thicknesses, relief angles, and tolerance classes are available across CNMG, DNMG, SNMG, CCMT/CCGT, VNMG, WNMG, and APKT families.

Industry Examples

• Automotive (ISO P): CNMG/WNMG with robust chipbreakers for stable chips at higher feeds.


• Aerospace (ISO S): Sharp, honed edges and heat‑resistant coatings for titanium and nickel alloys.


• Mold & Die (ISO K/N): CVD‑coated inserts for cast iron; polished edges for aluminum.

FAQs

• Index when edge wear or surface finish declines; follow holder guidelines for repeatable positioning.


• For aluminum, use polished rake faces and sharp edges; DLC or uncoated polished options minimize built‑up edge.


• To reduce vibration, ensure rigid clamping, correct nose radius, appropriate chipbreaker, verify runout, and set a stable feed per rev.

CTA

Contact us to configure inserts for your materials, machines, and target outcomes.
