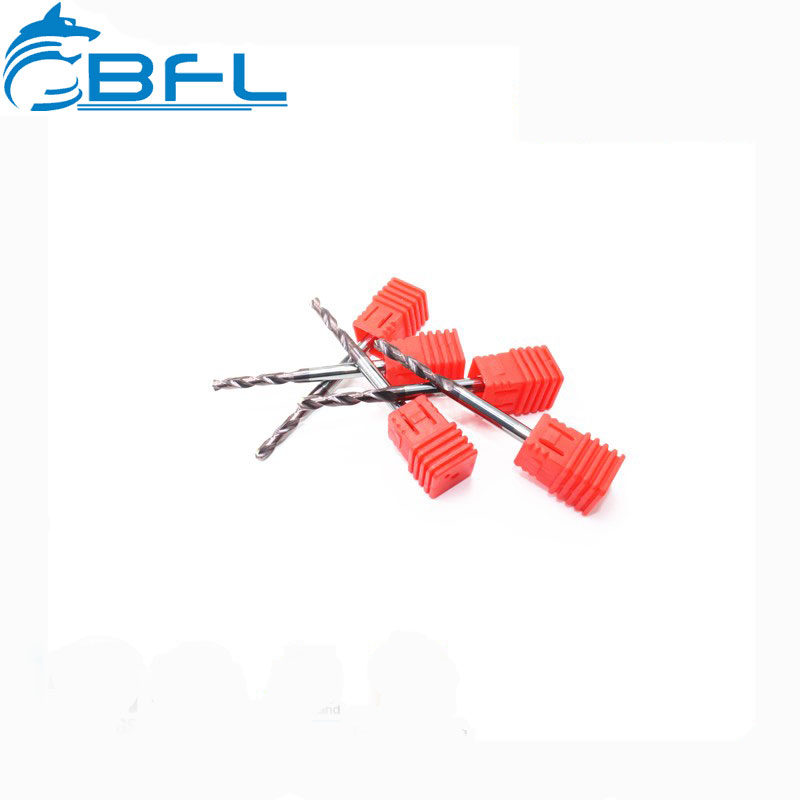

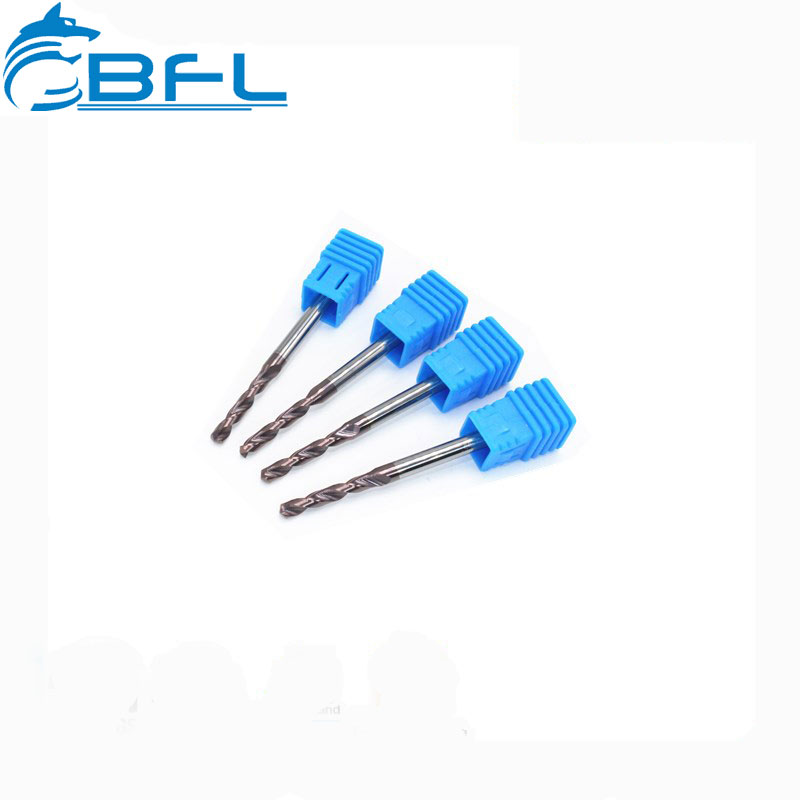

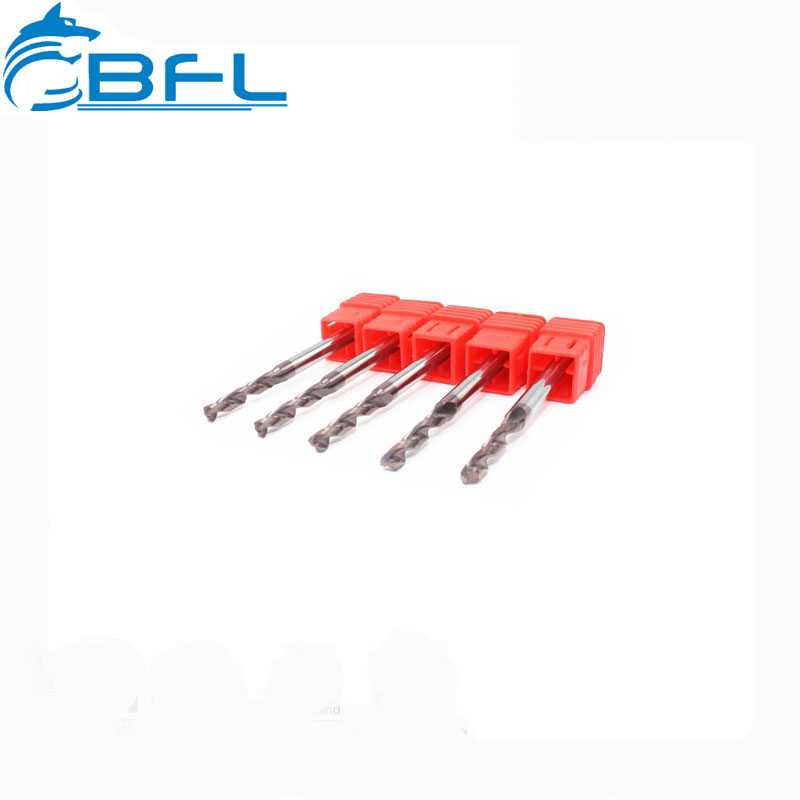

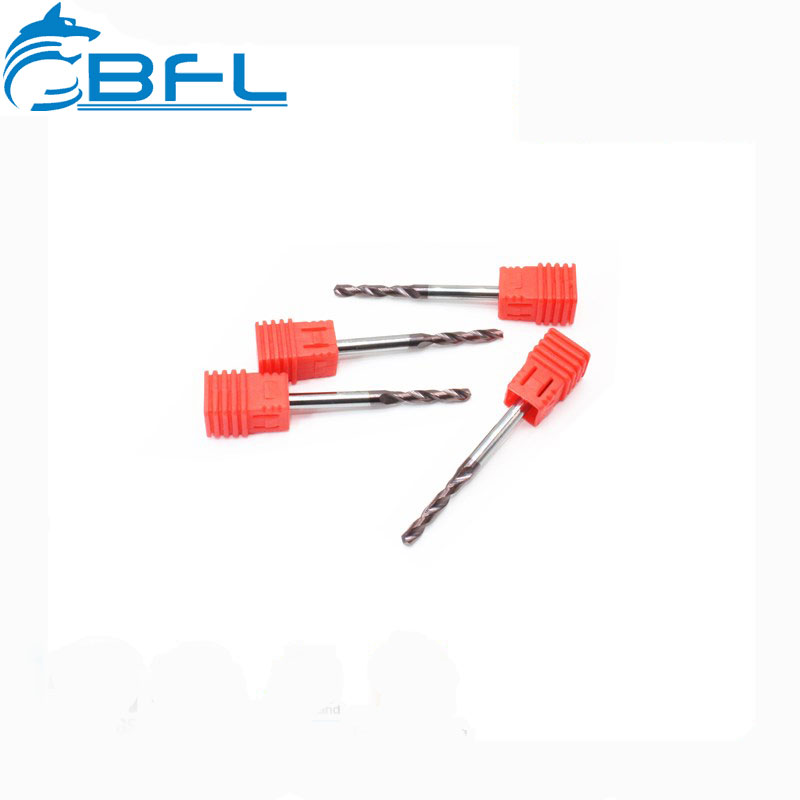

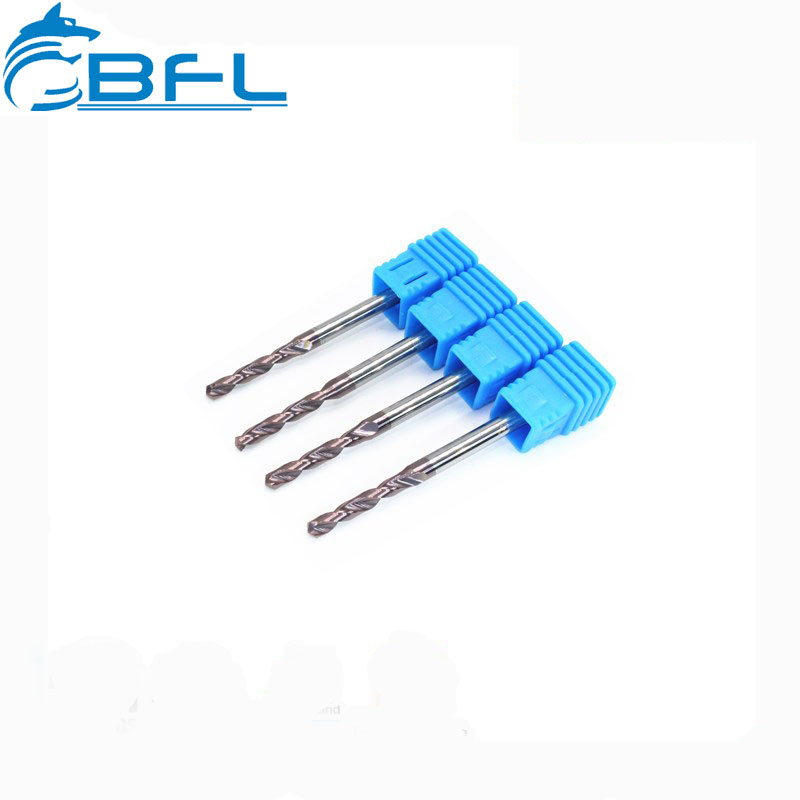

The BFLTY series solid carbide micro drills from BFL are designed for industrial clients requiring micron-level drilling accuracy. With ISO9001 certification and 18 years of specialized manufacturing experience in the solid carbide cutting tool industry, these micro drills are constructed from micrograin tungsten carbide and available with advanced ALTIN, TiSiN, or Diamond coatings. Rated for materials with hardness ranging from HRC 45 to HRC 65, they deliver consistent hole quality across various industrial applications. Distributed to more than 50 countries worldwide, these drills offer delivery times of 3-10 days with custom specifications available upon request.
These micro drills use grain-sized carbon tungsten as the raw material, providing high toughness for demanding machining operations. The micrograin carbide construction ensures dimensional stability and extended tool life in continuous production environments.
Multiple coating options are available to suit different machining requirements: ALTIN, TiAlN, TiSiN, TiN, DLC, Nano, and Diamond. The highly heat-resistant ALTIN coating enables high-speed processing capabilities, reducing production cycle times.
Process copper, cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel
Produce good surface roughness after processing
Strong centering ability for stable dimensional precision
Suitable for processing systems with outstanding rigidity
Reduced friction coefficient improves lathe efficiency

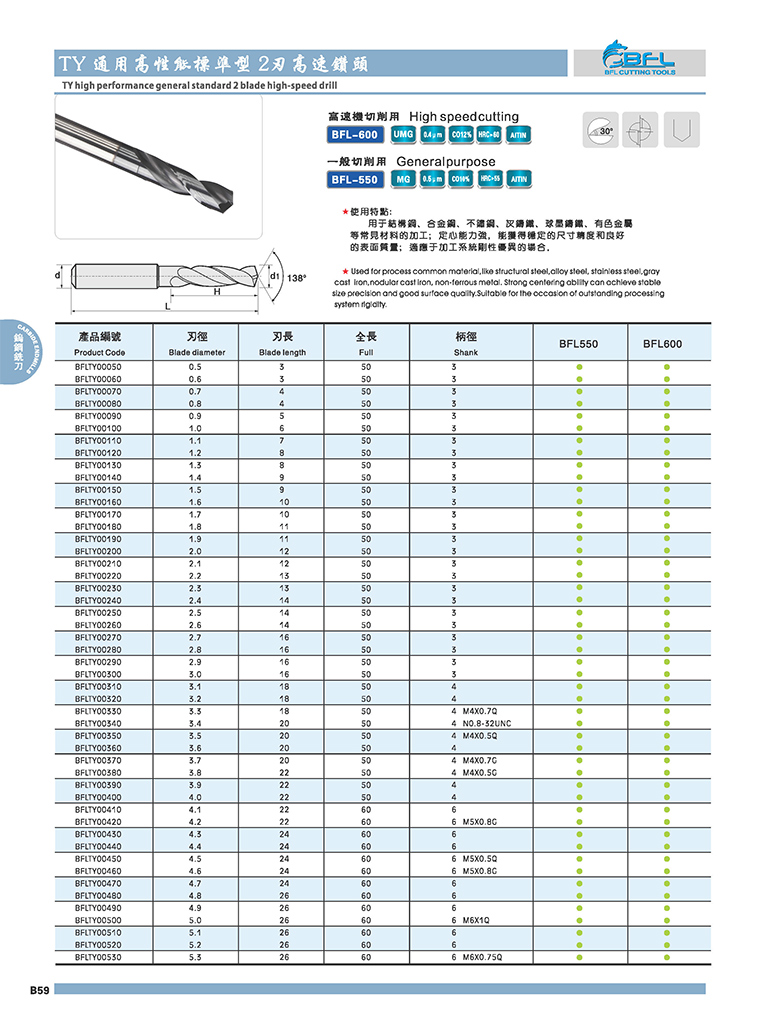

The BFLTY series includes TY high performance general standard 2-blade high-speed drills. Below are the available specifications:
Product Code | Blade diameter | Blade length | Full length | Shank diameter | BFL550 | BFL600 |
BFLTY00050 | 0.5 | 3 | 50 | 3 | ﹡ | ﹡ |
BFLTY00060 | 0.6 | 3 | 50 | 3 | ﹡ | ﹡ |
BFLTY00070 | 0.7 | 4 | 50 | 3 | ﹡ | ﹡ |
BFLTY00080 | 0.8 | 4 | 50 | 3 | ﹡ | ﹡ |
BFLTY00090 | 0.9 | 5 | 50 | 3 | ﹡ | ﹡ |
BFLTY00100 | 1.0 | 6 | 50 | 3 | ﹡ | ﹡ |
BFLTY00110 | 1.1 | 7 | 50 | 3 | ﹡ | ﹡ |
BFLTY00120 | 1.2 | 8 | 50 | 3 | ﹡ | ﹡ |
BFLTY00130 | 1.3 | 8 | 50 | 3 | ﹡ | ﹡ |
BFLTY00140 | 1.4 | 9 | 50 | 3 | ﹡ | ﹡ |
BFLTY00150 | 1.5 | 9 | 50 | 3 | ﹡ | ﹡ |
BFLTY00160 | 1.6 | 10 | 50 | 3 | ﹡ | ﹡ |
BFLTY00170 | 1.7 | 10 | 50 | 3 | ﹡ | ﹡ |
BFLTY00180 | 1.8 | 11 | 50 | 3 | ﹡ | ﹡ |
BFLTY00190 | 1.9 | 11 | 50 | 3 | ﹡ | ﹡ |
BFLTY00200 | 2.0 | 12 | 50 | 3 | ﹡ | ﹡ |
BFLTY00210 | 2.1 | 12 | 50 | 3 | ﹡ | ﹡ |
BFLTY00220 | 2.2 | 13 | 50 | 3 | ﹡ | ﹡ |
BFLTY00230 | 2.3 | 13 | 50 | 3 | ﹡ | ﹡ |
BFLTY00240 | 2.4 | 14 | 50 | 3 | ﹡ | ﹡ |
BFLTY00250 | 2.5 | 14 | 50 | 3 | ﹡ | ﹡ |
BFLTY00260 | 2.6 | 14 | 50 | 3 | ﹡ | ﹡ |
BFLTY00270 | 2.7 | 16 | 50 | 3 | ﹡ | ﹡ |
BFLTY00280 | 2.8 | 16 | 50 | 3 | ﹡ | ﹡ |
BFLTY00290 | 2.9 | 16 | 50 | 3 | ﹡ | ﹡ |
BFLTY00300 | 3.0 | 16 | 50 | 3 | ﹡ | ﹡ |
BFLTY00310 | 3.1 | 18 | 50 | 4 | ﹡ | ﹡ |
BFLTY00320 | 3.2 | 18 | 50 | 4 | ﹡ | ﹡ |
BFLTY00330 | 3.3 | 18 | 50 | 4M4×0.7Q | ﹡ | ﹡ |
BFLTY00340 | 3.4 | 20 | 50 | 4 NO.B-32UNC | ﹡ | ﹡ |
BFLTY00350 | 3.5 | 20 | 50 | 4 M4×0.5Q | ﹡ | ﹡ |
BFLTY00360 | 3.6 | 20 | 50 | 4 | ﹡ | ﹡ |
BFLTY00370 | 3.7 | 20 | 50 | 4M4×0.7G | ﹡ | ﹡ |
BFLTY00380 | 3.8 | 22 | 50 | 4M4×0.5G | ﹡ | ﹡ |
BFLTY00390 | 3.9 | 22 | 50 | 4 | ﹡ | ﹡ |
BFLTY00400 | 4.0 | 22 | 50 | 4 | ﹡ | ﹡ |
BFLTY00410 | 4.1 | 22 | 60 | 6 | ﹡ | ﹡ |
BFLTY00420 | 4.2 | 22 | 60 | 6M5×0.8G | ﹡ | ﹡ |
BFLTY00430 | 4.3 | 24 | 60 | 6 | ﹡ | ﹡ |
BFLTY00440 | 4.4 | 24 | 60 | 6 | ﹡ | ﹡ |
BFLTY00450 | 4.5 | 24 | 60 | 6 MSX0.5Q | ﹡ | ﹡ |
BFLTY00460 | 4.6 | 24 | 60 | 6M5×0.8C | ﹡ | ﹡ |
BFLTY00470 | 4.7 | 24 | 60 | 6 | ﹡ | ﹡ |
BFLTY00480 | 4.8 | 26 | 60 | 6 | ﹡ | ﹡ |
BFLTY00490 | 4.9 | 26 | 60 | 6 | ﹡ | ﹡ |
BFLTY00S00 | 5.0 | 26 | 60 | 6M6×1Q | ﹡ | ﹡ |
BFLTY00510 | 5.1 | 26 | 60 | 6 | ﹡ | ﹡ |
BFLTY00520 | 5.2 | 26 | 60 | 6 | ﹡ | ﹡ |
BFLTY00530 | 5.3 | 26 | 60 | 6M6×0.75Q | ﹡ | ﹡ |
BFL operates a well-developed CNC tool production line with high precision manufacturing capabilities. The company offers OEM and ODM services to meet specific customer requirements. All products undergo strict inspection processes to ensure compliance with specifications.
Standard delivery time: 3-10 days
Shipping options: DHL, FEDEX, UPS, TNT, EMS
Payment terms: T/T, Western Union, Paypal, AliExpress
Main markets: Thailand, Malaysia, Singapore, Philippines, Indonesia, Italy, Spain, Russia, Australia, Brazil, USA, Mexico, Czech, Poland, Germany, Turkey
The BFLTY series solid carbide micro drills are rated for materials with hardness ranging from HRC 45 to HRC 65, including stainless steel, titanium alloy, and heat-treated steel.
Available coatings include ALTIN, TiAlN, TiSiN, TiN, DLC, Nano, and Diamond. The ALTIN coating provides high heat resistance for high-speed machining applications.
Yes, custom specifications are available upon request. The company provides OEM and ODM services to meet specific industrial requirements.
Standard delivery time is 3-10 days depending on the destination and order quantity. Express shipping options are available for urgent orders.
