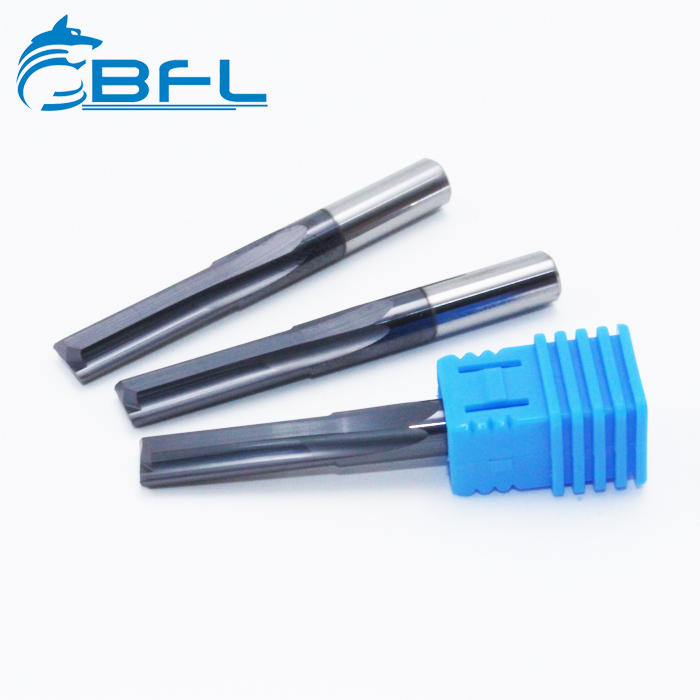

The solid carbide 2 flutes straight flute end mill for wood is a cutting tool designed for wood processing operations. Manufactured from solid carbide material, this end mill features two straight cutting edges that enable efficient material removal in various woodworking applications. The straight flute design provides consistent chip evacuation during cutting processes, making it suitable for both roughing and finishing operations in wood and wood-based materials.
Commercial users in furniture manufacturing, cabinetry production, and woodworking workshops utilize these end mills for a range of cutting tasks. The tool's construction allows it to maintain cutting performance across extended periods of use, reducing the frequency of tool changes in production environments.
This end mill is fabricated from solid carbide, a material composed of tungsten carbide particles bonded with a cobalt matrix. The material composition provides hardness and wear resistance properties that contribute to tool longevity in wood cutting applications. The solid carbide construction eliminates the risk of brazed joint failure that can occur with tipped tools.
The two straight flute design offers several functional characteristics for wood processing. Straight flutes produce axial cutting forces that help stabilize the tool during operation. This geometry is particularly effective for through cuts and slotting operations in wood materials. The flute spacing is optimized to facilitate chip removal, preventing clogging that could affect cut quality or tool performance.
The cutting edges undergo a precision grinding process to achieve consistent edge geometry. This preparation ensures uniform cutting action across the entire length of the cutting edge, resulting in smooth surface finishes on wood components.
Parameter | Specification |
Material | Solid Carbide |
Number of Flutes | 2 |
Flute Type | Straight |
Cutting Diameter Range | 3-20 mm |
Shank Diameter | 6 mm, 8 mm, 10 mm, 12 mm |
Overall Length Range | 50-100 mm |
Cutting Length Range | 12-60 mm |
Shank Type | Cylindrical |
Recommended Cutting Speed | 100-300 m/min |
Recommended Feed Rate | 0.1-0.3 mm per tooth |
The solid carbide 2 flutes straight flute end mill for wood is suitable for the following industrial applications:
Solid wood cutting and profiling
Medium-density fiberboard (MDF) milling
Plywood and particleboard processing
Slotting and grooving operations
Edge trimming and sizing
Mortise and tenon joint production
This tool is compatible with CNC routers and manual milling machines commonly used in woodworking facilities. For optimal performance, users should select the appropriate cutting parameters based on the specific wood material and machine capabilities.
These end mills are available in standard sizes as listed in the technical parameters section. Custom dimensions can be produced for specific industrial applications with minimum order quantities. Lead times for standard orders are 3-5 business days, while custom orders require 10-15 business days for production.
All tools undergo dimensional inspection and cutting performance testing prior to shipment. Quality control procedures include measurement of critical dimensions using calibrated equipment.
This end mill is designed for cutting solid wood, MDF, plywood, particleboard, and other wood-based composite materials. It is not intended for cutting metal or non-ferrous materials.
Tool life varies depending on the material being cut, cutting parameters, and machine rigidity. Under typical operating conditions, the tool can process 50-100 linear meters of solid wood before requiring resharpening.
Yes, solid carbide end mills can be resharpened multiple times using appropriate grinding equipment. Resharpening restores cutting performance and extends the overall service life of the tool.
The minimum order quantity for standard size end mills is 10 pieces per diameter. Volume discounts are available for orders exceeding 100 pieces.
