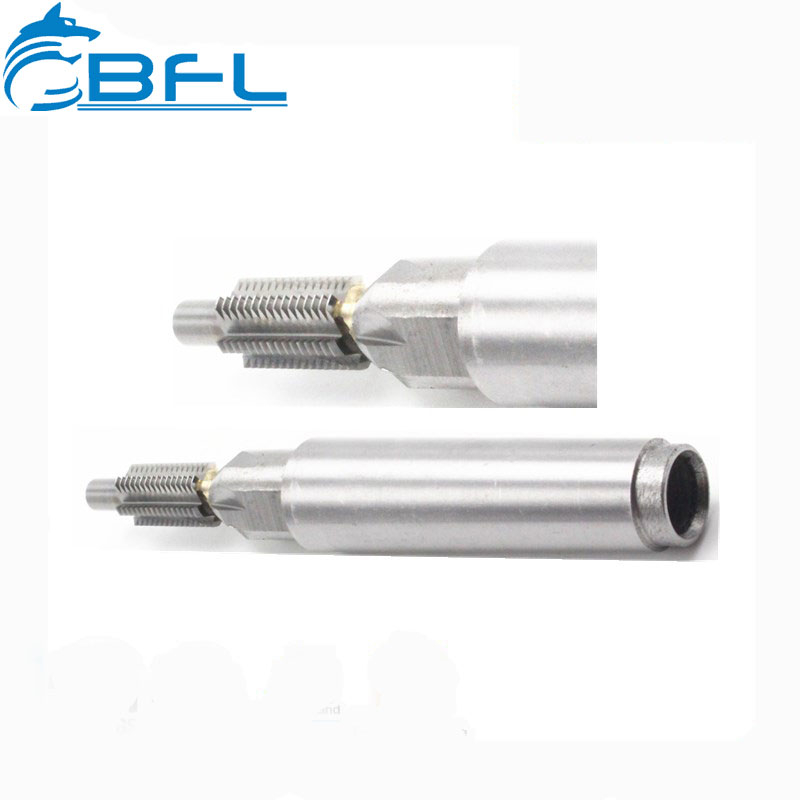

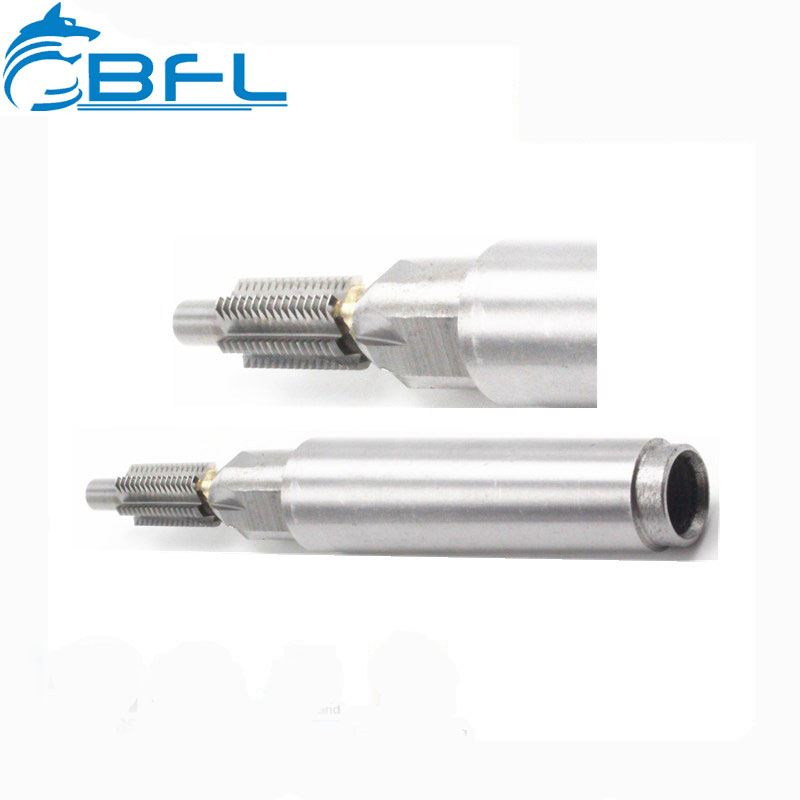

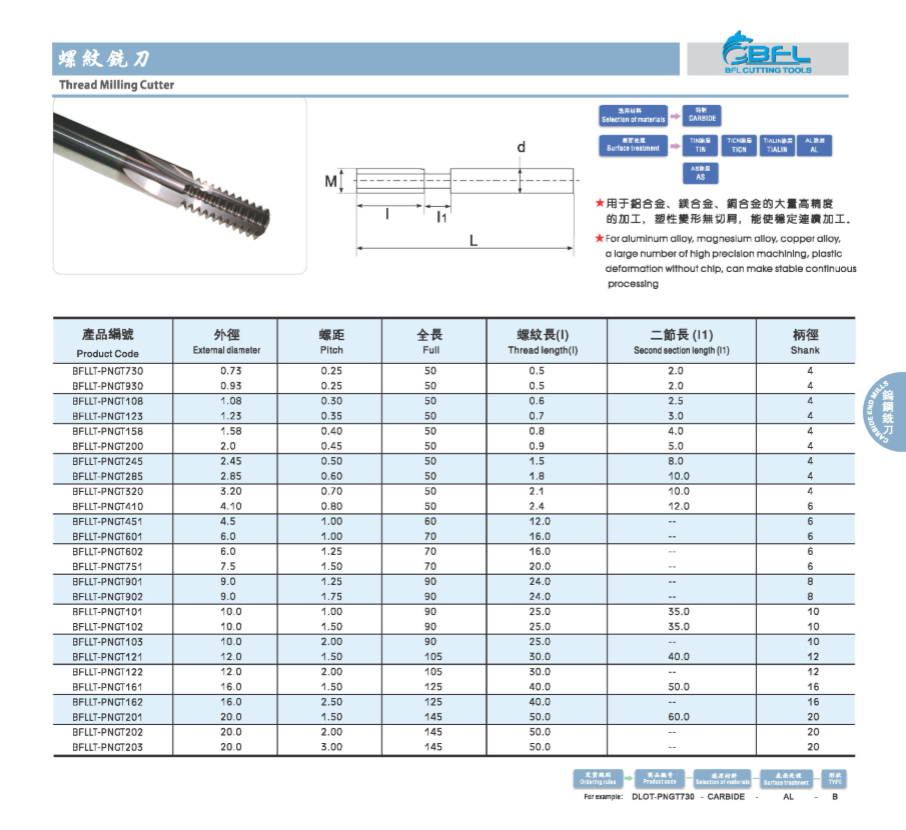

The Solid Carbide Straight Thread End Mill represents a fundamental shift in how complex threading operations are approached in demanding machining environments. Unlike traditional tapping methods that force a tool into the material, this end mill utilizes CNC helical interpolation to carve out precise threads. This method drastically reduces the mechanical stress on both the tool and the workpiece. When handling expensive, near-finished components, the last thing any machinist wants is a broken tap lodged in a blind hole. By transitioning to thread milling, operators gain complete control over the threading process, ensuring predictable, repeatable results across various materials. The solid carbide construction provides the necessary rigidity to prevent deflection, while the straight flute design is optimized for specific material removal strategies.
Crafted from premium solid micro-grain carbide, this straight thread end mill offers exceptional hardness and wear resistance. The core material provides a rigid foundation that resists the intense lateral forces generated during helical interpolation. To further enhance tool life, the surface features a specialized TiAlN/AlTiN (Titanium Aluminum Nitride) multi-layer coating. Running your finger along the flutes, you can feel the ultra-smooth, dark grey finish that acts as a powerful thermal barrier. This coating excels in elevated temperature environments, oxidizing at the cutting edge to form a protective aluminum oxide layer. This makes the tool highly effective when tackling notoriously difficult-to-machine materials such as titanium alloys, Inconel, and hardened steels. The combination of a tough carbide substrate and a heat-resistant coating ensures the cutting edges remain sharp over extended production runs, minimizing the frequency of tool changes and maintaining consistent thread profiles.
Effective chip management is critical in thread milling, especially when working with deep or blind holes where recutting chips can instantly ruin a thread profile. This straight thread end mill is engineered with optimized flute geometries that curl and break chips efficiently. For operations requiring maximum thermal control and chip removal, an optional through-coolant (internal cooling) design is available. When activated, the pressurized coolant forcefully ejects chips from the cutting zone, accompanied by the distinct hiss of fluid flushing the cavity. This rapid evacuation prevents chip packing and significantly lowers the temperature at the cutting edge.
Design Feature | Functional Benefit | Ideal Application |
|---|---|---|
Solid Straight Flute | Maximizes core strength and minimizes tool deflection under load | Hardened steels, cast iron, and shallow thread depths |
Through-Coolant Option | Forces chips out of blind holes, cools the active cutting zone | Deep blind holes, sticky materials like Titanium alloys |
Optimized Rake Angle | Shears material cleanly rather than pushing or tearing it | Inconel, stainless steel, and aerospace-grade alloys |
The most significant advantage of using this solid carbide straight thread end mill is the absolute peace of mind it brings to the manufacturing floor. Traditional taps are notorious for snapping without warning, often leaving a hardened piece of steel embedded in a high-value workpiece. Because this end mill operates with a smaller tool diameter than the threaded hole, the cutting forces are dramatically lower. You will notice the quiet, continuous hum of the spindle rather than the heavy groaning associated with large-diameter tapping.
Furthermore, if tool wear eventually leads to failure, the end mill simply drops into the hole without jamming. The operator can easily extract the broken tool, replace it, and resume machining without scrapping the part. This tool also allows for threading all the way to the absolute bottom of a blind hole, a feat that is physically impossible with standard chamfered taps. This capability maximizes the usable thread depth in compact component designs.
Inventory management and tool crib organization become significantly simpler when adopting this thread milling solution. A single straight thread end mill is not restricted to a specific thread size; it is defined by its pitch. This inherent flexibility allows operators to accomplish multiple tasks with just one tool:
Multiple Diameters: Machine any thread diameter that shares the same pitch, provided the hole is larger than the cutter diameter.
Left and Right-Hand Threads: Program the CNC to interpolate clockwise or counter-clockwise to create either right-hand or left-hand threads without changing the tool.
Internal and External Threads: Utilize the same end mill to cut internal threads in a bore or external threads on a stud.
Variable Tolerances: Easily adjust the CNC program to accommodate different thread tolerance classes (e.g., 6H, 4H, 6G) without needing a specialized tap for each class.
Achieving the perfect thread fit requires exact dimensional control. This end mill is manufactured under strict micron-level tolerances, ensuring the physical dimensions of the tool are exceptionally consistent from batch to batch. When paired with the tool radius compensation features of a modern CNC control unit, the operator gains ultimate authority over the final thread size. The precision tuning process typically involves:
Initial Machining: Running the thread milling cycle with a conservative radius offset to avoid overcutting.
Gauging: Testing the thread with a calibrated Go/No-Go gauge to assess the initial fit.
Micro-Adjustment: Modifying the tool wear offset in the CNC control by mere microns based on the gauge feedback.
Final Pass: Executing a spring pass or a final light cut to achieve the exact major and minor diameters required.
This meticulous control results in mirror-like thread flanks and a perfect fit every time, eliminating the oversized or torn threads often caused by dulling taps.
Designed exclusively for CNC machining centers equipped with 3-axis simultaneous helical interpolation capabilities, this tool thrives in demanding industrial sectors. It is the preferred choice for manufacturing environments where the cost of a scrapped part far outweighs the cost of the cutting tool.
Aerospace Components: Machining engine casings and structural brackets from tough titanium and nickel-based alloys, where thread integrity is critical for flight safety.
Medical Devices: Creating precise threads in bone plates, surgical instruments, and implantable devices made from surgical-grade stainless steel or titanium, requiring flawless surface finishes to prevent bacterial colonization.
Energy Sector: Threading deep holes in massive valve bodies and pump housings used in oil and gas extraction, where internal coolant delivery is essential for chip evacuation.
Transitioning to thread milling requires precise CNC programming. To ensure optimal performance from the very first cut, comprehensive technical support is provided to assist with tool path generation. Expert engineers are available to help calculate the exact feed rates, spindle speeds, and step-over amounts based on your specific material and machine dynamics. This eliminates the guesswork and prevents premature tool wear caused by incorrect cutting parameters.
Beyond standard catalog items, rapid customization services are available to meet unique manufacturing challenges. Whether an application requires a non-standard pitch, an extended reach for deep cavities, or a specialized coating tailored to a proprietary alloy, custom end mills can be designed and prototyped quickly. This ensures that even the most unconventional threading requirements are met with a tool engineered specifically for the task.
