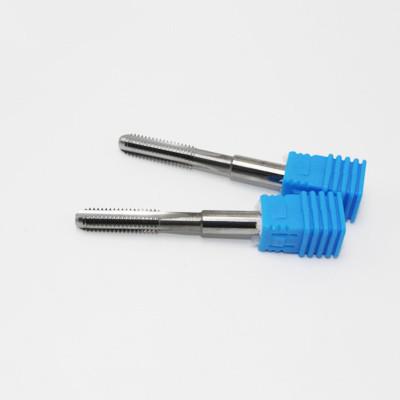

Modern thread production demands unwavering reliability and exceptional speed. The Carbide Forming Taps Metric Thread series represents a significant leap in thread generation technology. Unlike conventional cutting taps that remove material and generate problematic chips, these tools utilize a highly efficient cold-forming process. By plastically deforming the workpiece material, they create metric threads with uninterrupted grain flow, resulting in significantly higher tensile strength and thread integrity. The foundation of this tool is an industrial-grade solid carbide substrate, meticulously ground to exact geometries. This exceptionally rigid core is enhanced with specialized PVD multi-layer coatings, specifically TiAlN or TiN. Visually, these coatings present a distinct, smooth metallic finish—often a deep violet-grey or rich gold—that serves a critical functional purpose. The coating dramatically lowers the coefficient of friction, allowing the tap to glide through the material while resisting abrasive wear and thermal shock. When deployed in high-volume production environments, this combination of solid carbide and specialized PVD coating allows these forming taps to operate at speeds up to four times faster than traditional High-Speed Steel (HSS) alternatives, fundamentally transforming throughput rates and operational economics.

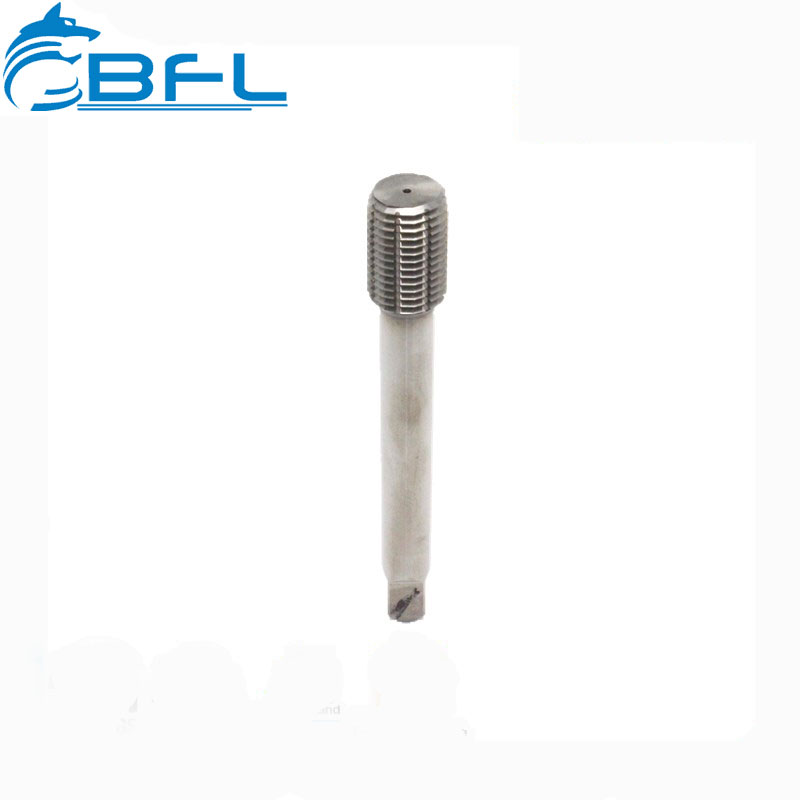

When forming threads, the friction generated by plastic deformation creates intense localized heat. To combat this, our metric forming taps are engineered with a highly effective axial through-coolant system.
High-pressure coolant is channeled directly through the core of the tool, delivering lubrication and temperature control exactly where the material displacement occurs. You can physically observe the difference in operation: the consistent, pressurized flow eliminates the smoke and extreme heat typical of dry forming, leaving the tool cool to the touch even immediately after a demanding cycle. This internal cooling architecture is especially critical when processing deep blind holes, where external coolant often fails to reach the critical engagement zone. By maintaining a stable thermal environment, the through-coolant design prevents micro-welding on the tap's forming lobes, preserves the integrity of the PVD coating, and ensures consistent thread sizing from the first part to the ten-thousandth.
Axial internal coolant delivery for targeted thermal reduction at the deformation zone.
Prevention of material galling and micro-welding on the precision forming lobes.
Extended tool life in continuous, high-volume manufacturing cycles.
Optimized for both emulsion and neat oil lubrication systems.
The versatility of these solid carbide forming taps extends across a wide spectrum of industrial materials. They are specifically optimized for processing materials with a hardness of up to 32 HRC. This includes a vast array of carbon steels, alloy steels, cast iron, and various non-ferrous metals such as aluminum and copper alloys.
The true advantage of the chipless forming process shines in blind hole applications. In traditional tapping, chip evacuation from a blind hole is a primary cause of tool breakage and scrapped components. Because these tools displace material rather than cutting it, there are absolutely no chips to manage, tangle, or pack into the bottom of the hole. The resulting internal threads exhibit a highly burnished, mirror-like surface finish on the flanks, offering superior resistance to stripping and mechanical fatigue. Whether manufacturing critical automotive components, aerospace fasteners, or precision fluid control manifolds, the absence of chips guarantees a cleaner, safer, and highly predictable threading operation.
Achieving exact metric thread profiles requires uncompromising dimensional control. These forming taps are manufactured to stringent international tolerance standards, including precise D-limits and 3BX fit classes, ensuring every thread meets exacting gauge requirements. The tools feature a Form E chamfer, which provides a short lead-in ideal for threading close to the bottom of blind holes, maximizing full-thread depth. To ensure direct integration into modern machining centers, the taps utilize a standard cylindrical straight shank design. This geometry is perfectly compatible with a variety of high-precision tool holding systems.

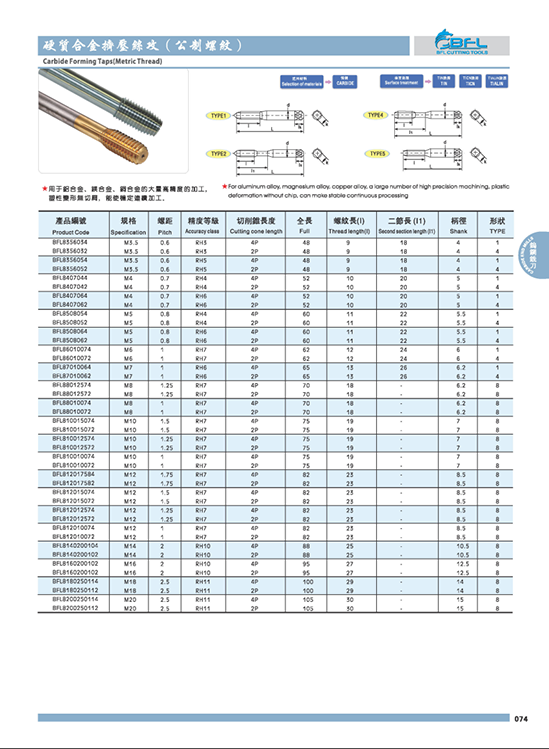

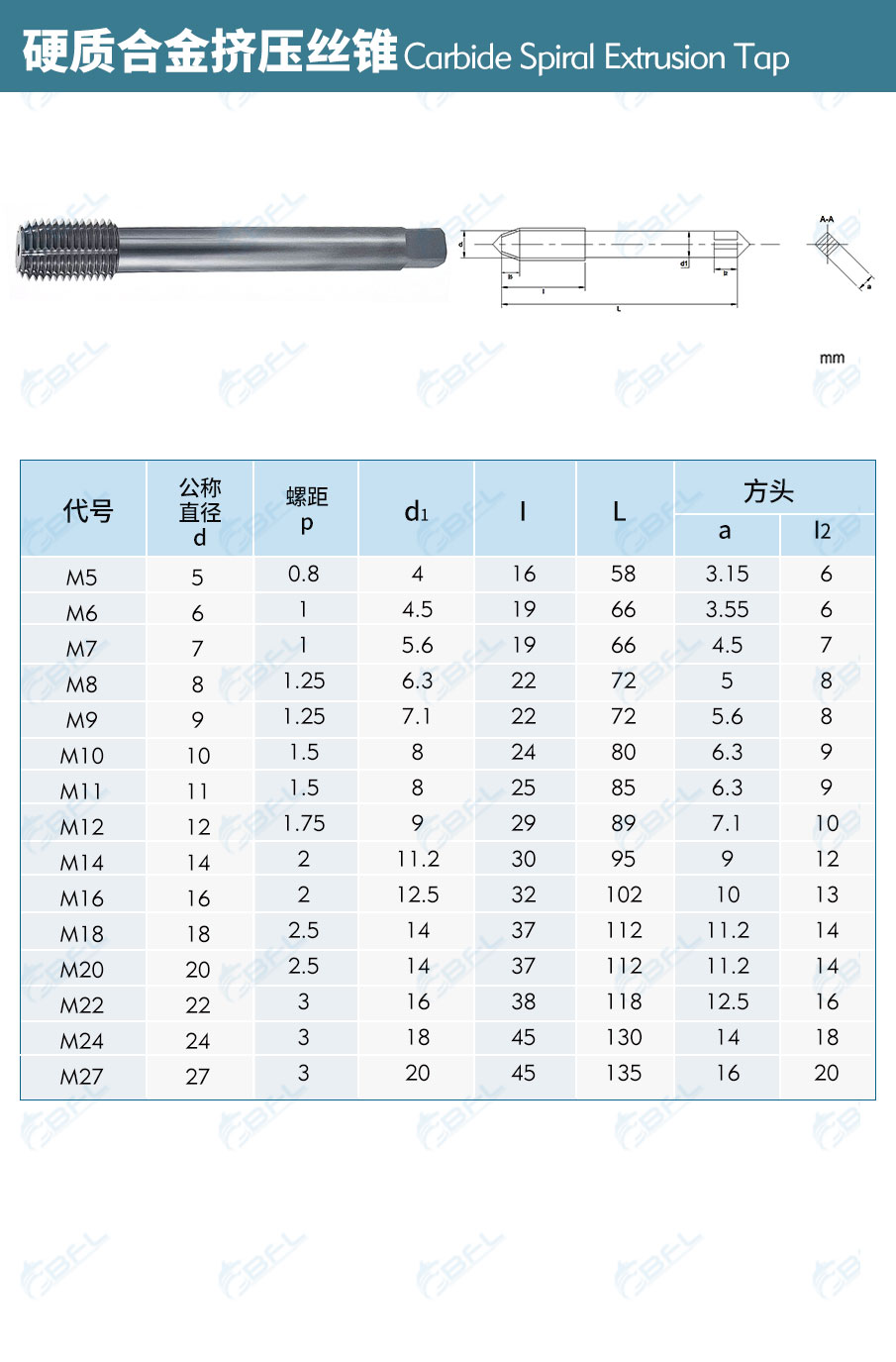

Thread Standard | Metric (M) |
Substrate Material | Industrial-Grade Solid Carbide |
Chamfer Profile | Form E (Short Lead) |
Tolerance Class | D-limits / 3BX |
Shank Geometry | Cylindrical Straight Shank |
Clamping Compatibility | ER Collets, Hydraulic Sleeves, CNC Fixtures |
Deploying high-performance solid carbide tooling requires precise operational parameters to maximize return on investment. We provide exhaustive engineering support to ensure your threading operations run flawlessly.
Machine operators and manufacturing engineers have access to detailed Feeds and Speeds charts, specifically calibrated for different material groups, hardness levels, and machine capabilities. To streamline the computer-aided manufacturing (CAM) programming phase, comprehensive 2D and 3D CAD models of the forming taps are readily available for download, allowing for accurate digital twin simulations and collision detection before the first physical thread is formed. Furthermore, for highly specialized applications involving unique thread pitches, extreme reach requirements, or proprietary alloys, our engineering team offers customized tooling solutions tailored to your exact manufacturing environment.
