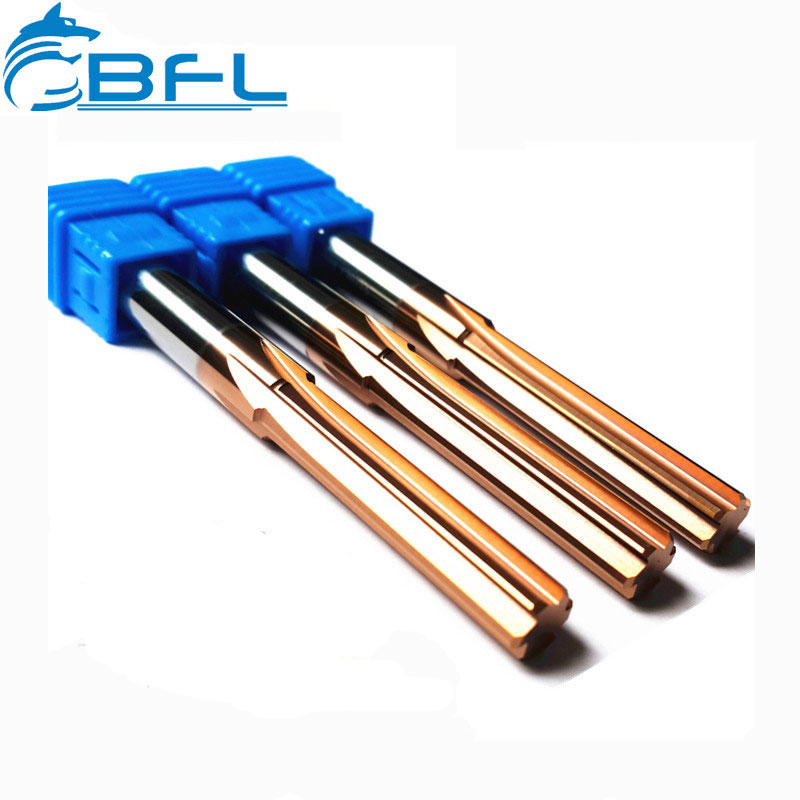

When precision is the primary objective in metalworking, the tooling material forms the foundation of success. Crafted from dense, industrial-grade solid carbide, this straight reamer delivers exceptional wear resistance and extended tool life even in the most demanding machining environments. The inherent hardness of the carbide substrate ensures that the cutting edges remain sharp and true through prolonged production runs, minimizing the need for frequent tool replacements. Operators will immediately notice the substantial, heavy feel of the solid carbide construction, a tactile indicator of its durability and structural integrity. This material choice provides superior thermal stability, preventing deformation when subjected to the intense heat generated during aggressive cutting operations. By maintaining structural rigidity, the reamer guarantees exceptional machining stability, reducing vibrations and chatter that can compromise hole accuracy. The result is a highly dependable tool that consistently produces exact dimensions and superior surface finishes across a wide range of challenging materials, directly contributing to more efficient and predictable manufacturing workflows.
The physical architecture of this reamer is meticulously engineered to optimize material removal and surface refinement. Featuring a precise straight flute configuration, the tool efficiently channels chips away from the cutting zone, preventing packing and scoring within the bore. The cutting profile incorporates a carefully ground 45-degree chamfer, which facilitates smooth entry into the pre-drilled hole and ensures accurate alignment from the very first rotation.
Depending on the specific application requirements, the reamer is available in both four-flute and six-flute variations. The four-flute design offers deeper gullets for maximum chip clearance in softer or more ductile materials, while the six-flute option provides increased contact points, delivering an exceptionally fine, mirror-like finish in harder alloys. Running a finger along the cutting edges reveals a meticulously honed sharpness, free of micro-burrs, which translates directly to reduced cutting forces and minimal friction during operation.
Straight Flute Architecture: Promotes consistent chip evacuation in through-hole applications, preventing internal blockages.
45-Degree Chamfer Lead: Ensures gradual, controlled engagement with the workpiece, preventing sudden torque spikes and protecting the tool edge.
Optimized Edge Preparation: Reduces friction and heat generation, preserving the integrity of the metallurgical structure of the workpiece.

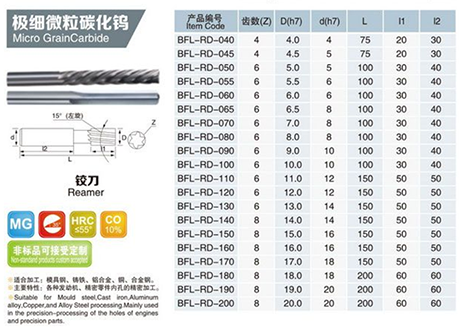

Achieving the perfect fit requires tooling that adheres to the strictest dimensional standards. This solid carbide straight reamer series offers an exhaustive selection of sizing options to accommodate virtually any engineering specification. The catalog includes complete metric ranges, fractional inch sizes, wire gauge, and letter gauge designations. For applications demanding extreme precision, sizes are available in micro-increments as fine as 0.0005 inches. This granular availability eliminates the need for secondary boring operations or compromising on tolerances. The precise grinding process ensures that each tool meets exacting concentricity and diameter specifications, guaranteeing that every reamed hole aligns perfectly with mating components.
Category | Measurement System | Increment / Range | Application Focus |
|---|---|---|---|
Metric | Millimeters (mm) | Standard and fine increments | Global manufacturing standards |
Fractional | Inches (in) | 1/64" steps | Traditional mechanical assemblies |
Wire & Letter | Standard Gauge | A-Z, #1-#80 | Specialized fastening and alignment pins |
Micro-Increment | Decimal Inches | 0.0005" steps | Aerospace and medical device tolerances |
Designed for universal adaptability, this straight reamer excels across a diverse spectrum of metalworking environments. It is engineered to perform flawlessly in both through-hole and blind-hole configurations, providing consistent diameter control from the entry point to the bottom of the bore. The tool handles a wide array of materials with ease, including cast iron, aluminum alloys, brass, bronze, and various carbon steels. In automotive manufacturing, it reliably finishes valve guides and piston pin bores where surface finish is critical for fluid retention and friction reduction. For aerospace components, the reamer ensures the precise sizing of fastener holes, maintaining the structural integrity of critical load-bearing assemblies. The sharp, clean shearing action minimizes work hardening on the interior walls, leaving a smooth, uniform surface that requires no further polishing or honing.
Integrating a new cutting tool into an established production line requires accurate data and reliable support. To facilitate immediate implementation, comprehensive technical resources are provided for every reamer specification. Engineers have access to detailed Speeds & Feeds charts, offering optimized parameters for spindle rotation and penetration rates across different material groups. This data ensures the tool operates within its ideal thermal and mechanical limits, maximizing efficiency while preventing premature wear. Furthermore, highly accurate STEP and DXF CAD models are readily available for download. These digital assets allow manufacturing engineers to simulate tool paths, verify clearances in CAM software, and seamlessly integrate the reamer into complex machining centers before a single chip is cut.
While the standard catalog covers a vast array of dimensions, certain specialized projects demand unique tooling solutions. A dedicated customization service is available to address non-standard diameter requirements, specific flute lengths, or proprietary shank configurations. The engineering team collaborates directly with procurement and technical staff to design and manufacture bespoke reamers tailored to exact project blueprints. Utilizing a streamlined quick-turn production process, these custom tools are manufactured and dispatched with accelerated lead times, ensuring that critical production schedules are maintained. Detailed quotations for special tooling are generated rapidly, providing clear cost projections and delivery timelines for specialized machining requirements.
Consistency and reliability are non-negotiable in precision manufacturing. Every solid carbide straight reamer undergoes a stringent quality control regimen before leaving the facility. Advanced optical measurement systems inspect the cutting diameter, chamfer angle, and flute concentricity at multiple stages of the grinding process. This rigorous verification ensures that every single tool performs identically to the last, eliminating variability in large-scale production runs. The commitment to exacting manufacturing standards is backed by comprehensive warranty protocols, providing peace of mind for bulk procurement. By minimizing the risk of tool failure and out-of-tolerance parts, this strict adherence to quality assurance directly protects the profitability and reputation of the manufacturing operation.
