Engineered for demanding slotting, grooving, and parting-off operations, our solid carbide saw mills deliver decisive, clean cuts across a multitude of industrial applications. Machine shops constantly face the challenge of maintaining tight tolerances while maximizing throughput. These cutting tools address that exact need by delivering a stable, deflection-free operation even under aggressive feed rates. The reassuring weight of the dense carbide substrate and the visually distinct dark hue of the protective coating immediately convey their readiness for intensive machining tasks. By focusing on structural integrity and precise edge preparation, these milling tools help operators achieve superior dimensional accuracy and exceptional surface finishes on every workpiece.
At the core of these saw mills is a premium micrograin carbide substrate. Unlike conventional materials, this ultra-fine grain structure offers an exceptional balance of hardness and transverse rupture strength. This means the teeth resist micro-chipping even when subjected to heavy, interrupted cuts, maintaining a sharp cutting edge over extended periods.
Complementing the dense substrate is a high-performance TiAlN (Titanium Aluminum Nitride) coating. This dark violet-grey layer is applied through advanced physical vapor deposition (PVD), ensuring an incredibly uniform thickness that does not alter the precise geometry of the cutting teeth. During high-speed machining, the coating oxidizes to form a microscopic layer of aluminum oxide, acting as a formidable thermal barrier. It effectively shields the tool from extreme temperatures, allowing for aggressive feed rates and speeds. This thermal protection significantly extends the tool's operational life and reduces the frequency of tool changeovers, directly improving floor productivity.
The physical design of the cutting edges dictates the efficiency of the metal removal process. Our solid carbide saw mills feature an optimized tooth distribution that mitigates harmonic vibrations, resulting in a remarkably smooth and quiet cutting action. Every tool undergoes precision grinding to establish exact side clearance angles. This critical geometric feature prevents the sides of the saw from rubbing against the freshly cut walls of the workpiece, eliminating friction-induced heat and the risk of binding.
Furthermore, the flutes and non-cutting faces receive a mirror-level polishing treatment. When you run a fingernail over the surface, the ultra-smooth finish is unmistakable. This polished surface ensures that metal chips evacuate fluidly without welding to the tool. By preventing built-up edge (BUE), the saw mill maintains a pristine finish on the machined part. Strictly controlled inner hole concentricity and straightness mean the tool mounts perfectly true on the arbor, eliminating radial runout and ensuring every single tooth engages the material equally.
These milling tools are designed to adapt to a wide spectrum of manufacturing environments, proving highly effective across various metal groups. Whether executing deep grooving or precise cut-offs, they provide consistent, reliable performance.
Aluminum and Copper Alloys: The highly polished flutes excel in non-ferrous applications. They prevent gummy, soft materials from adhering to the cutting edges, ensuring clean, burr-free slots and reducing secondary finishing operations.
Cast Iron and Carbon Steels: The rigid micrograin structure powers through abrasive cast iron and tough carbon steels. The optimized geometry ensures consistent chip evacuation, maintaining edge sharpness over extended production runs.
High-Temperature Superalloys: When tasked with machining challenging, work-hardening materials like titanium or Inconel, the heat-resistant TiAlN coating protects the substrate from the intense localized heat generated at the shear zone, preventing premature thermal degradation.

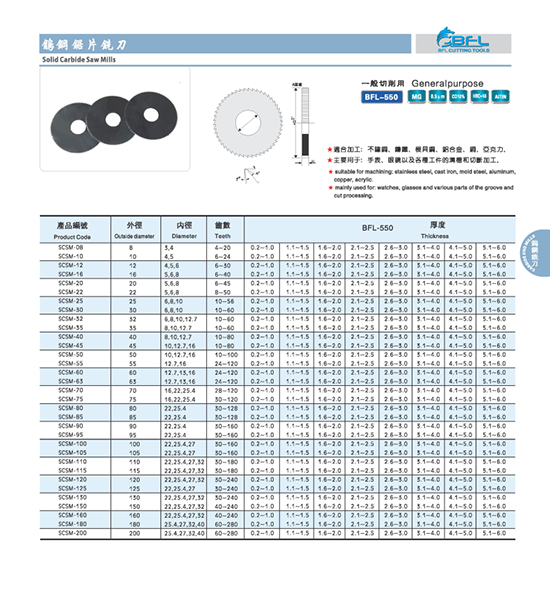

To accommodate diverse machining requirements, we offer an extensive range of standard dimensions alongside flexible customization capabilities. Our goal is to provide the exact tooling geometry required for your specific operational constraints.
Specification Category | Available Options & Details |
|---|---|
Standard Dimensions | A wide selection of Outer Diameters (OD), thicknesses, and tooth counts to fit standard arbors and milling centers. |
Customization Services | Non-standard sizes, specific tooth profiles, and tailored arbor hole dimensions engineered to exact project specifications. |
Regrinding & Reconditioning | Professional regrinding services to restore the original factory edge geometry and re-apply performance coatings, maximizing tool lifespan. |
Consistency is paramount in precision metalworking. Every solid carbide saw mill is manufactured under a strict ISO-certified quality management system. We utilize advanced optical inspection equipment and automated laser micrometers to verify critical dimensions, scanning the outer diameter and tooth profiles for microscopic deviations.
By maintaining this exacting level of scrutiny, we ensure that inner hole concentricity and overall straightness are held to strict micron-level tolerances. This rigorous testing protocol guarantees that when the tool is deployed, cutting forces are distributed evenly across all teeth. The result is absolute batch-to-batch stability, ensuring that operators can confidently swap tools without needing to constantly adjust machine offsets, thereby reducing downtime and securing the reliability of your most critical production processes.
