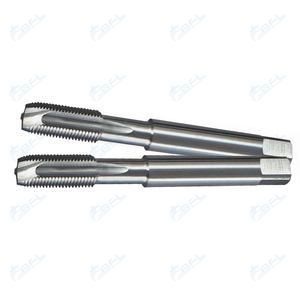

When handling demanding threading tasks, the structural integrity of your cutting tool dictates the final outcome. The Solid Carbide Spiral Fluted Tap Series is engineered from a premium, high-strength solid carbide substrate. Unlike standard materials, this dense carbide core provides exceptional rigidity, minimizing deflection even under heavy torsional loads. To complement this solid foundation, the tool features a sophisticated multi-layer PVD coating, combining TiAlN and TiN.

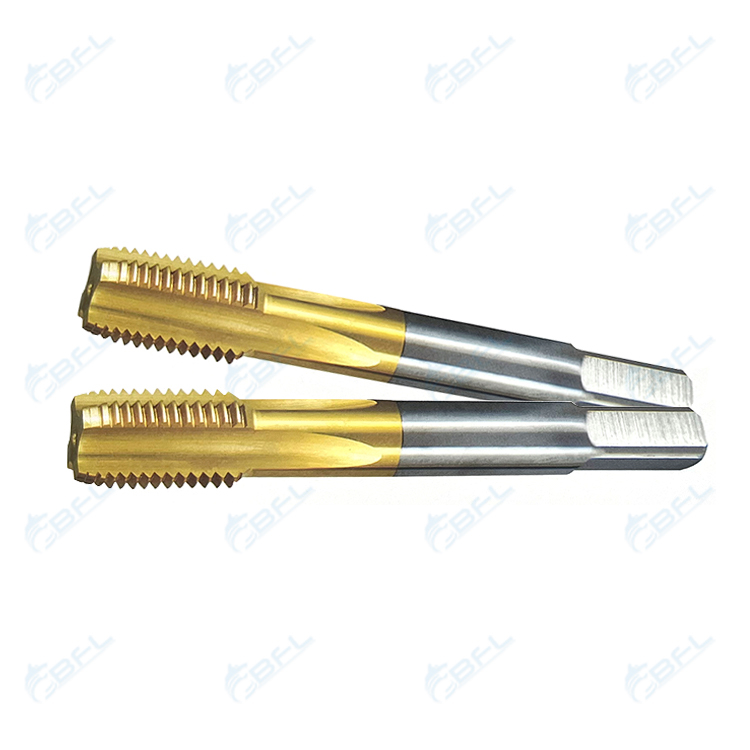

Visually, this application gives the tap a distinct, smooth, dark metallic finish with a subtle golden sheen. More importantly, this multi-layer barrier significantly reduces friction and thermal buildup during the cutting process. The incredibly smooth surface finish of the coating allows chips to glide effortlessly, drastically reducing wear on the cutting edges and extending the overall lifespan of the tool. This translates to fewer interruptions for tool replacements and a more consistent threading operation from the first hole to the thousandth.
Achieving precise threads in tough materials requires a tool designed for the exact challenge. This series is purpose-built for through-hole threading, excelling in environments where material hardness reaches up to 32 HRC.
Effective chip management is critical to preventing catastrophic tool failure and ruined workpieces. This tap utilizes a highly specialized left-hand spiral flute combined with a right-hand cutting direction. As the tap engages the material, this unique geometry physically drives the resulting swarf forward, pushing it ahead of the cutting action and out through the bottom of the through-hole.
| Left-Hand Spiral Flute | Propels chips forward and downward, eliminating flute packing and preventing bird-nesting in through-hole applications. |
| Right-Hand Cutting | Ensures standard clockwise thread generation with smooth, continuous material removal. |
| D-Form Chamfer | Features a 3.5 to 5 thread chamfer length, gradually distributing the cutting load across multiple teeth to reduce initial impact shock. |
| Coolant Optimization | Designed to integrate perfectly with flood coolant systems, allowing fluids to flow directly to the cutting zone for optimal temperature control. |
When paired with a steady stream of flood coolant, the flutes remain completely clear of debris. The coolant washes over the smooth PVD coating, ensuring that heat is carried away rapidly and the thread finish remains impeccably smooth and free of galling.

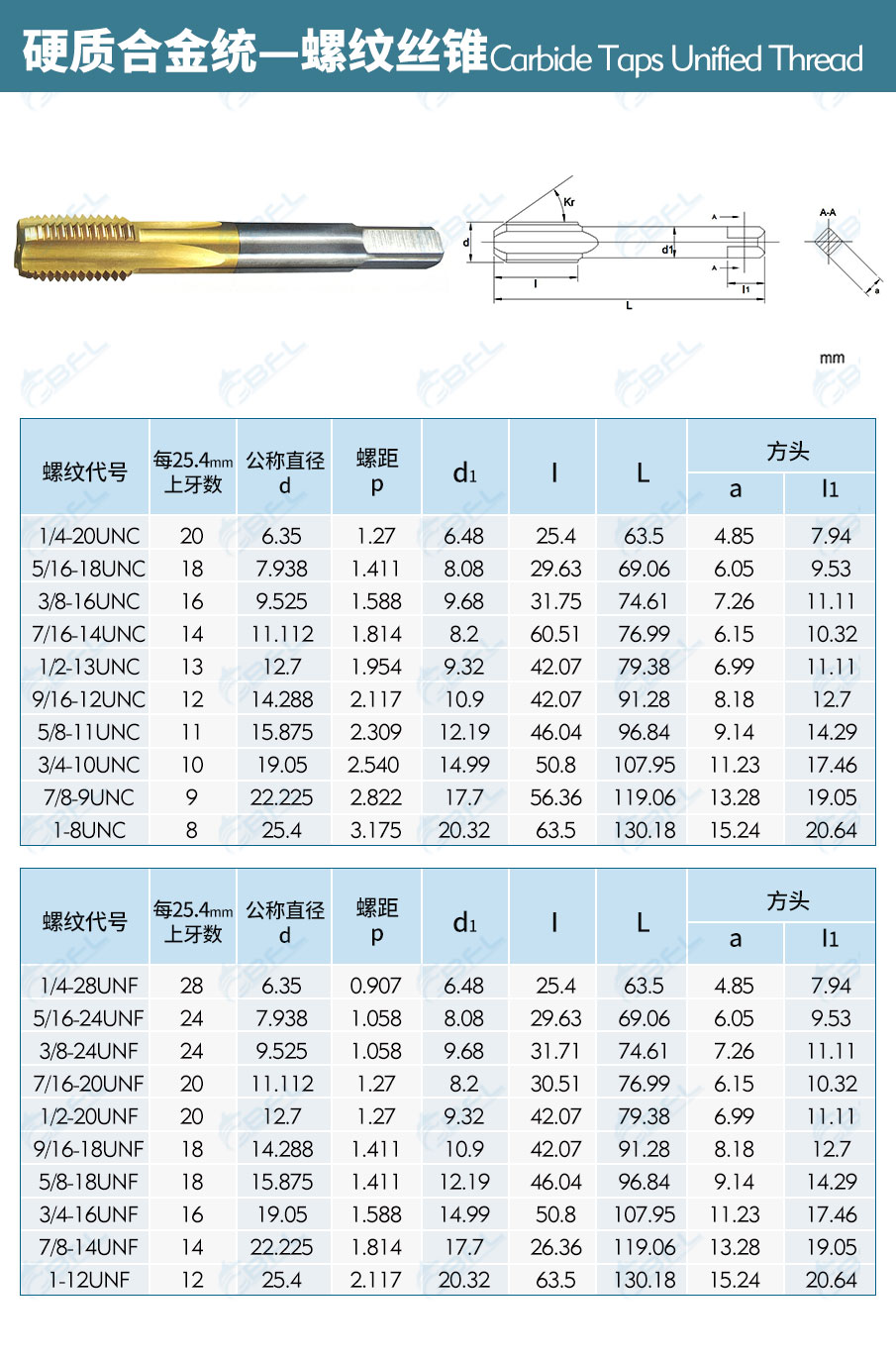

The physical feel of this tap conveys its precision; the perfectly cylindrical shank is ground to exacting tolerances, ensuring a snug, vibration-free fit in your tool holders. This series strictly adheres to the 3BX thread fit accuracy class. Such tight dimensional control guarantees that every thread produced will easily pass strict GO/NO-GO gauge inspections, maintaining high-precision consistency across large production runs.
Furthermore, the standardized shank dimensions ensure broad compatibility across your existing tooling inventory. Operators can effortlessly integrate these taps into standard spring collet chucks, such as the widely used TG or DA series, as well as high-precision hydraulic chucks. This universal adaptability means you do not need to invest in specialized tool holders. The tap slides smoothly into the collet, locking in with perfect concentricity, which is essential for preventing runout and ensuring the threads are cut exactly to the programmed dimensions.
Maximizing the performance of an advanced cutting tool requires accurate operational data. To support your machining processes, we provide a comprehensive suite of technical resources. Engineering teams can download detailed CAD drawings and accurate 3D models to simulate tool paths and verify clearances before a single chip is cut.
Additionally, complete Safety Data Sheets (SDS) are available to ensure compliance with workplace safety and environmental regulations. To eliminate the guesswork from your programming, we supply customized feeds and speeds recommendations tailored to specific material groups and hardness levels. By utilizing these precise parameters, programmers can dial in the exact spindle speed and feed rate required to hit the optimal operational window, ensuring proper chip formation and maximizing the return on your tooling investment right out of the box.
