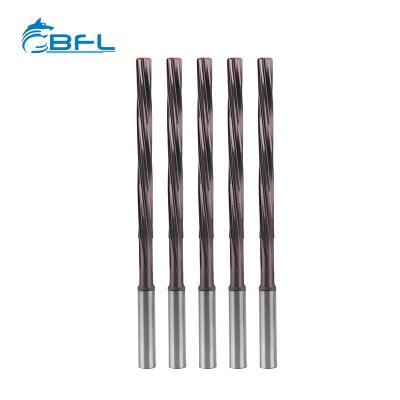

When executing critical hole-making operations, the foundational material of your cutting tool dictates the final outcome. This spiral reamer is constructed from a dense, premium-grade solid carbide substrate. Unlike standard high-speed steel alternatives, this exceedingly rigid composition resists deflection even under intense lateral loads. The physical weight and polished metallic finish of the tool reflect its dense grain structure, which is specifically engineered to combat abrasive wear. By maintaining a razor-sharp cutting edge through prolonged production cycles, this solid carbide construction dramatically extends the operational lifespan of the tool. Machinists will notice a consistent, clean shearing action rather than the tearing or rubbing often associated with dulling tools, ultimately reducing the frequency of tool changeovers and keeping production lines running smoothly.

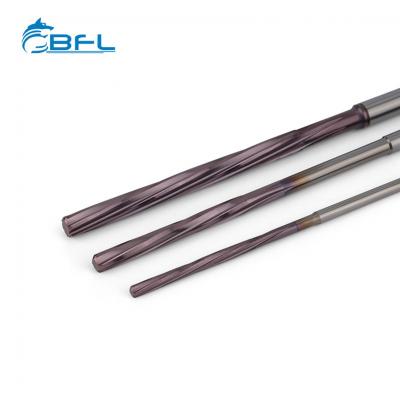

The physical shape of the cutting flutes plays a critical role in managing the waste material generated during the reaming process. We have engineered the flute geometry to address specific hole configurations, ensuring continuous operation without chip packing.
Right-Hand Spiral Flutes: Designed specifically for blind hole applications, this configuration actively lifts metal shavings upward and out of the cavity, preventing chip recutting and protecting the newly finished walls.
Left-Hand Spiral Flutes: Ideal for through-hole operations, this design pushes the chips forward ahead of the cutting action, ensuring the flutes remain clear and preventing any scoring on the internal bore surface.
45-Degree Lead Chamfer: Each tool features a precision-ground 45-degree chamfer at the tip. This acts as a stabilizing guide, allowing the reamer to enter the pre-drilled hole smoothly, eliminating initial chatter and establishing immediate concentricity.
Achieving the perfect fit for pins, dowels, or bearings requires absolute dimensional consistency. This tool is manufactured under strict environmental controls to meet exacting tolerance standards. The cutting diameter is ground to an ultra-precise margin of +0.0002" / -0.0000". This microscopic level of accuracy guarantees that every single hole produced will match your exact engineering blueprints. Beyond just dimensional accuracy, the precise grinding of the relief angles ensures the tool rubs less and cuts more, yielding a smooth, mirror-like internal surface finish. This exceptional finish often eliminates the need for secondary honing or polishing operations, saving valuable cycle time while ensuring mechanical assemblies fit together with exact interference or clearance parameters.
To adapt to varying thermal and abrasive conditions, we offer multiple specialized surface treatments. These microscopic layers alter the physical properties of the tool's exterior, significantly enhancing performance based on the specific application.
Coating Type | Visual Appearance | Performance Advantage |
|---|---|---|
TiN (Titanium Nitride) | Distinctive Gold | Provides excellent lubricity and prevents built-up edge in general-purpose steel machining. |
TiCN (Titanium Carbonitride) | Blue-Gray | Offers higher surface hardness, ideal for abrasive materials like cast iron and high-silicon aluminum. |
AlTiN (Aluminum Titanium Nitride) | Dark Charcoal | Forms a protective oxide layer under extreme heat, perfect for dry machining of hard alloys. |
ZrN (Zirconium Nitride) | Pale Gold | Exceptionally smooth surface prevents galling when processing sticky non-ferrous metals. |
Modern manufacturing demands versatility. The specific micro-geometry of the cutting edges on this spiral reamer is carefully balanced to handle a wide spectrum of industrial materials. When engaging with ductile cast iron or low-carbon steels, the sharp shear angle cleanly slices through the metal without tearing. Conversely, when processing hardened alloy steels or challenging superalloys, the robust edge preparation prevents micro-chipping under heavy cutting forces. This adaptability ensures a stable and predictable machining process, reducing vibrations and acoustic chatter that can ruin a critical workpiece. By maintaining consistent performance across different material groups, production facilities can standardize their tooling inventory, simplifying the setup process for operators.
We recognize that standard off-the-shelf dimensions cannot solve every engineering challenge. To accommodate unique project requirements, a comprehensive suite of modification services is available.
Non-Standard Diameters: Precise grinding to exact decimal or metric dimensions not found in standard catalogs.
Specialized Chamfers: Custom lead angles and radius profiles designed to match specific bottom-hole geometries.
Step Hole Configurations: Multi-diameter tool designs that allow for the simultaneous finishing of concentric stepped bores in a single pass.
Shank Alterations: Addition of Weldon flats, tangs, or reduced shank diameters to ensure secure and concentric clamping in your specific tool holders.
Integrating a new tool into an established production line requires accurate data. To support manufacturing engineers and CNC programmers, we provide a wealth of technical resources. Detailed speeds and feeds charts are available, categorized by specific material groups and hardness levels. These charts provide the exact spindle RPM and penetration rates required to achieve optimal tool life and surface finish, eliminating the guesswork from the programming process. Furthermore, highly accurate 3D CAD models are accessible in both STEP and DXF formats. These digital assets can be imported directly into CAM software, allowing programmers to run precise digital twin simulations, verify toolpaths, and ensure absolute collision avoidance before the physical tool ever touches the metal.
