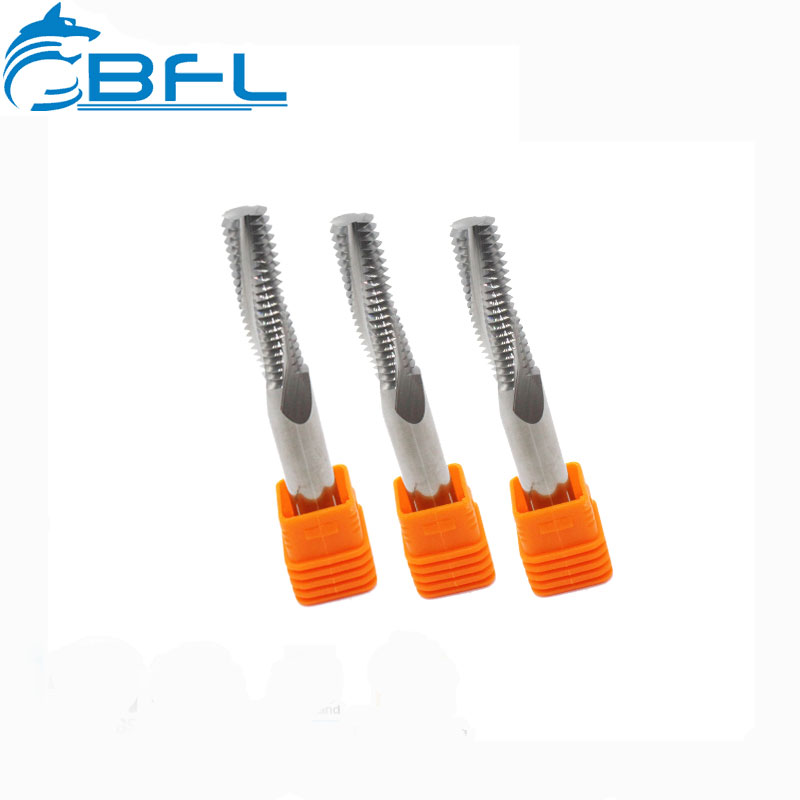

The foundation of this threading tool lies in its ultra-fine nano-grade solid carbide substrate. This dense, unyielding core provides exceptional rigidity, minimizing deflection during aggressive machining cycles. When you handle the tool, the smooth, dark-grey metallic finish of the TiAlN/nAlTiN+ coating is immediately noticeable. This advanced surface treatment is not merely cosmetic; it acts as a formidable thermal barrier. During intense metal removal, the coating resists extreme temperatures, preventing premature thermal degradation of the cutting edges. Operators will notice a significant reduction in abrasive wear, translating to prolonged operational life even when tackling challenging alloys. By maintaining a sharp, stable edge over extended runs, this material configuration reduces the frequency of tool changeovers, keeping production lines moving continuously and lowering overall tooling expenditure per machined part.
Consolidating tooling inventory is a primary operational advantage offered by this milling cutter. A single unit is engineered to accurately generate multiple thread pitches, accommodating both internal and external profiles, as well as right-hand and left-hand orientations. This multi-functional capability eliminates the need to stock dozens of specific taps. The geometry adapts to the specific shear characteristics of various workpieces:
Carbon and Alloy Steels: Maintains edge integrity through dense metallic structures without premature chipping.
Aluminum Alloys: Slices cleanly through the predictable grain without material welding or galling to the flutes.
Cast Iron: Withstands the highly abrasive nature of the carbon matrix during continuous machining.
Stainless Steel: Powers through tough exteriors while minimizing detrimental work-hardening effects.
Modern Composites: Delivers clean shear action without delaminating or fraying layered synthetic structures.
This adaptability ensures consistent thread formation across diverse manufacturing runs, streamlining setup times significantly and maximizing spindle utilization.
Blind hole threading presents notorious challenges, primarily regarding swarf accumulation and heat buildup. This tool addresses these issues through a highly efficient through-tool coolant architecture designed for maximum fluid dynamics.
Active Fluid Delivery: When engaged, the internal channels deliver a pressurized stream of fluid directly to the cutting zone. You can hear the distinct, steady hiss of the coolant as it forcefully flushes metal fragments away from the newly formed threads.
Friction Reduction: The targeted lubrication significantly reduces friction at the shear zone, ensuring a clean, precise cut while protecting the tool substrate from thermal shock.
Optimized Flute Geometry: The helical structure is engineered to guide flushed chips swiftly up and out of deep cavities. This dynamic combination prevents chip recutting—a common cause of surface scoring—guaranteeing uninterrupted machining cycles and pristine finishes in restricted applications.
Transitioning from conventional tapping to this milling approach mitigates expensive risks and enhances dimensional control. If a tap snaps inside a high-value component, extracting it is often impossible without damaging the part. Conversely, this cutter operates with a smaller diameter, allowing for harmless extraction upon unlikely breakage.
Operational Feature | Thread Milling Cutter | Traditional Tap |
|---|---|---|
Tool Breakage Consequence | Easy removal, workpiece saved | Difficult extraction, potential part scrap |
Tolerance Control | Micro-adjustments via CNC compensation | Fixed size, requires oversized/undersized taps |
Thread Pitch Flexibility | One tool handles multiple pitches | Strictly limited to a single specific pitch |
Utilizing CNC tool radius compensation, operators can fine-tune thread fits to meet exceptionally tight tolerance specifications directly at the control panel, ensuring perfect mating with corresponding fasteners.
Maintaining absolute consistency across thousands of production units requires rigorous oversight. Every cutter produced undergoes a comprehensive evaluation protocol to ensure predictability for procurement teams.
ISO9001 Management: The entire manufacturing framework is governed by strict, internationally recognized quality standards to eliminate process variations.
100% Final Inspection: Instead of relying on randomized batch sampling, the facility mandates a complete evaluation for every individual tool before packaging.
Optical Verification: Advanced optical comparators and laser measurement systems scrutinize the intricate thread profile, verifying pitch, flank angles, and root radii.
Batch Consistency: This obsessive attention to detail guarantees that tools ordered months apart will perform identically on the spindle.
You can confidently project cycle times and tool life metrics, knowing that dimensional variations have been eliminated long before the tool reaches your facility.
Standard catalog dimensions do not always align with specialized engineering requirements. Recognizing this, direct-from-factory customization services are fully integrated into the production model. Whether your application demands a non-standard reach, a specific neck relief, or a unique pitch configuration, dedicated OEM and ODM capabilities are available to engineer a precise solution. The direct manufacturing link eliminates intermediary delays, facilitating rapid prototyping and accelerated production schedules. When urgent project deadlines loom, the facility can expedite the fabrication of custom geometries, ensuring that specialized tooling arrives on your floor precisely when needed. This agile manufacturing approach provides procurement managers with a reliable partner capable of adapting to sudden shifts in production demands, securing the supply chain against unexpected bottlenecks, and keeping critical manufacturing projects completely on track.
