End Mill for Aluminum — Solid Carbide Performance, Precision, and Customization
This series is engineered for high-speed machining of aluminum, delivering bright finishes, clean edges, and reliable chip evacuation. Tools are produced from premium sub‑micrograin solid carbide and ground on TTB, WALTER HELITRONIC, DECKEL, and ANCA platforms. The result is tight accuracy in standard lines and custom builds. High‑helix geometries, mirror‑polished flutes, and targeted coatings help limit built‑up edge and reduce chip welding on sticky alloys.
Core Advantages
Deep engineering support and sub‑micron grinding deliver precise geometry, concentricity, and low runout, validated by ZOLLER, PG1000, and PARLEC metrology. ISO9001 (2023–2026) and SGS processes, together with our modern Changzhou facility, provide stable capacity, short lead times, and repeatable quality.
Geometry and Helix Design
Optimized helix angles and polished cutting edges reduce friction, speed chip flow, and help control burrs. A typical 45°–55° helix lowers cutting forces and lifts chips rapidly. Edge preparation options—square, corner radius, or chamfer—protect corners at high feed rates and RPM, matching aluminum’s ductility to extend tool life. Deep, polished gashes with tuned rake/relief minimize recutting, stabilize finishing passes, and cut deburring steps.
Coatings and Carbide Grade
Select uncoated tools for clean, soft grades, or apply ZrN, TiB2, or DLC to counter adhesive wear in silicon‑rich and recycled alloys. Sub‑micrograin carbide maintains edge toughness and resists micro‑fracture at high RPM. ZrN reduces adhesion; TiB2 excels in abrasive, high‑Si aluminum; DLC offers ultra‑low friction for sticky chips and thin‑wall parts.
Flute Count Options

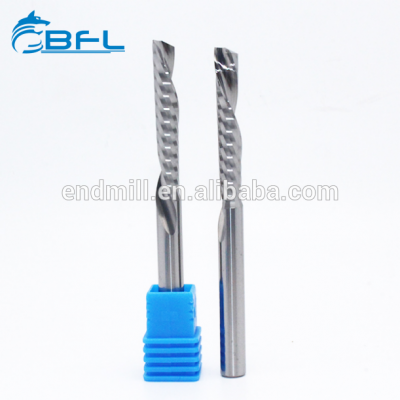

Balance chip load, finish, and stability with single‑edge, 2‑, 3‑, and 5‑flute variable‑index designs. Single‑edge and 2‑flute cutters provide large gullet volume for deep slotting and softer grades. A balanced 3‑flute layout supports higher feed per tooth and smooth sidewalls in 6000/7000 series alloys. 5‑flute variable index/helix designs reduce chatter in thin sections and long overhangs while lowering scallop height.
Machining Parameters
Use appropriate speed, feed, coolant, and rigid setups to maximize the value of polished flutes and high‑helix designs. Typical cutting speeds range from 400 to 1,200 m/min by alloy and diameter, with feed per tooth of 0.02–0.12 mm and suitable DOC/WOC. Flood coolant or MQL helps limit built‑up edge and maintain chip evacuation in deep pockets. High‑precision collet systems with h6 shank fit minimize runout and protect edges at high RPM.
Quality and Tolerances
Tight process control delivers consistent diameter, concentricity, and geometry. Automated production and sub‑micron grinding ensure repeatability across large batches. 100% inspection with ZOLLER and PG1000 validates critical dimensions and edge quality, with batch traceability and certificates available on request.
Application Scenarios
These cutters perform in aerospace structures, automotive housings, molds, and electronics enclosures. Expect stable thin‑wall machining, bright surfaces, and fewer burrs across slotting, pocketing, and finishing operations.
Aerospace, Automotive, Electronics, Mold Work
Use variable‑index designs for aircraft pockets and thin ribs, 3‑flute tools for brackets and housings, and polished uncoated cutters for mold finishing and bright enclosures.
Custom Non‑Standard Tools
When standard options are not enough, we design custom solid carbide end mills per drawing, alloy (e.g., 6061, 7075, 2024), machine type (3–5 axis), and clamping method. Tailored flute counts, gash profiles, relief angles, coolant‑through options, and coatings address chip welding, chatter, and finish targets to lift productivity.
Category Range Overview
Available in square end, corner radius, and ball nose; short, regular, long, and extra‑long; metric and inch sizes from micro diameters to large‑format cutters. Non‑standard profiles and forming tools are supported.
Related Tools
Complete aluminum workflows with solid carbide drills, reamers, taps, high‑performance CNC inserts, and high‑precision collet chucks for consistent cycle time and finish.
Benefits You’ll See
Faster cycle times, bright surface finishes, reduced burrs, and long tool life. High‑helix designs, polished flutes, and coating choices help control sticky chips and stabilize processes.
Unique Category Information
As a manufacturer, we combine advanced CNC grinding (TTB, WALTER HELITRONIC, DECKEL, ANCA), comprehensive metrology, and ISO9001/SGS quality in our Changzhou facility to ensure dependable supply and repeatable performance. Contact us to discuss your application or request a quote for an End Mill for Aluminum.
