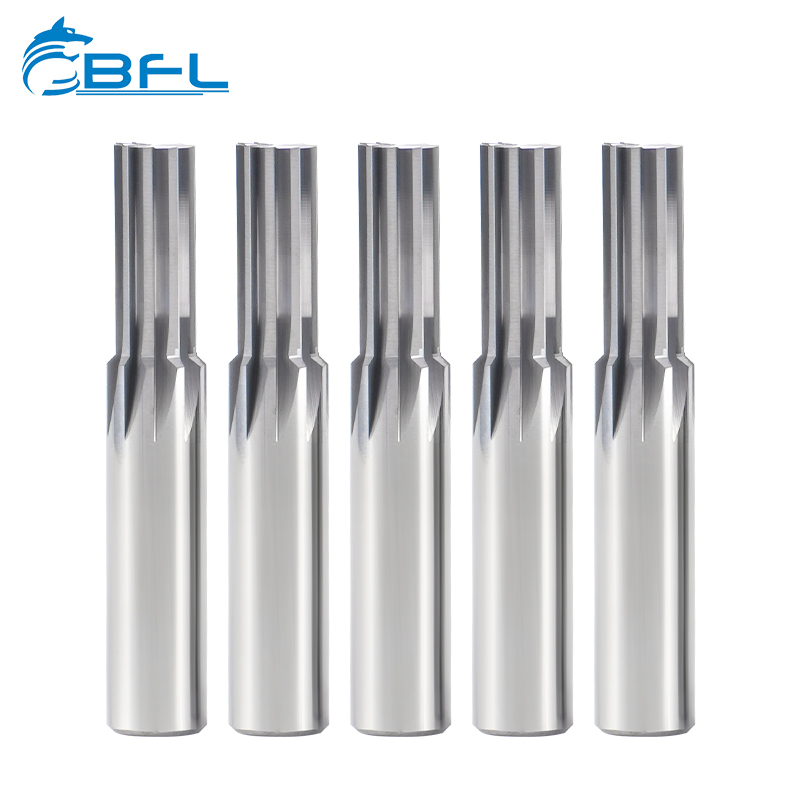

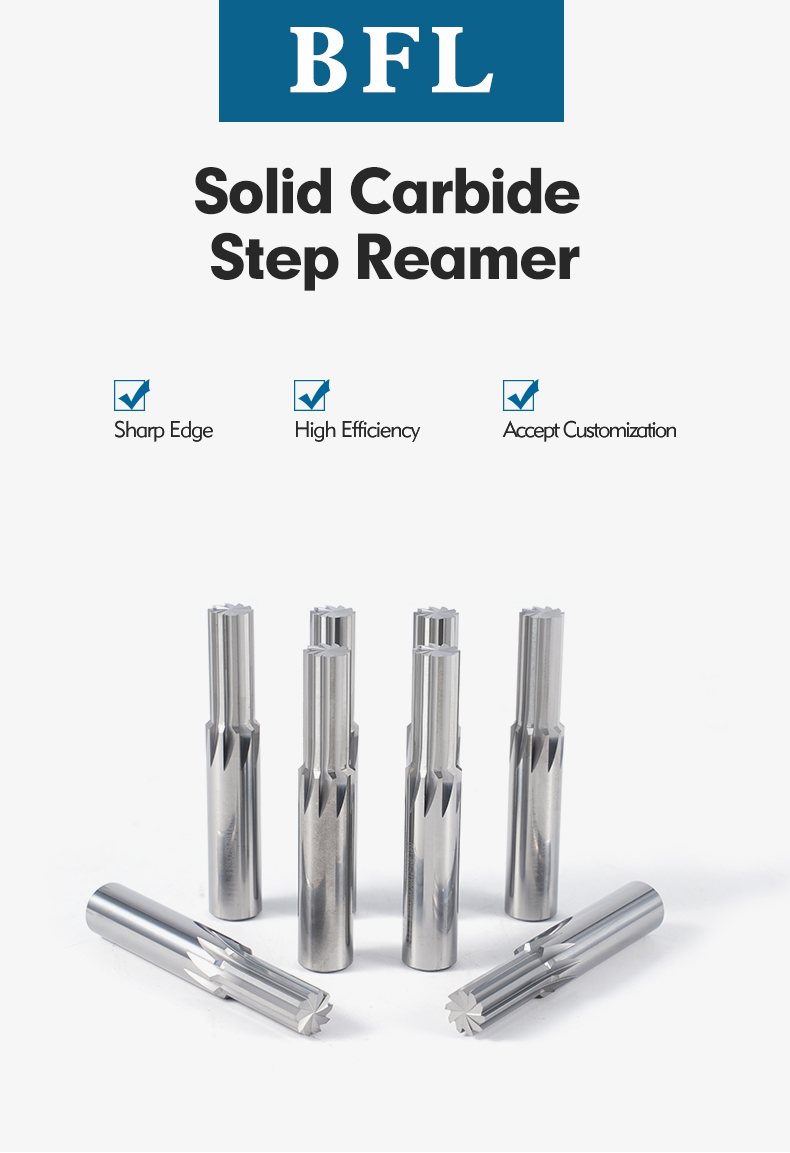

BFL Solid Carbide Step Flute Reamer End Mill

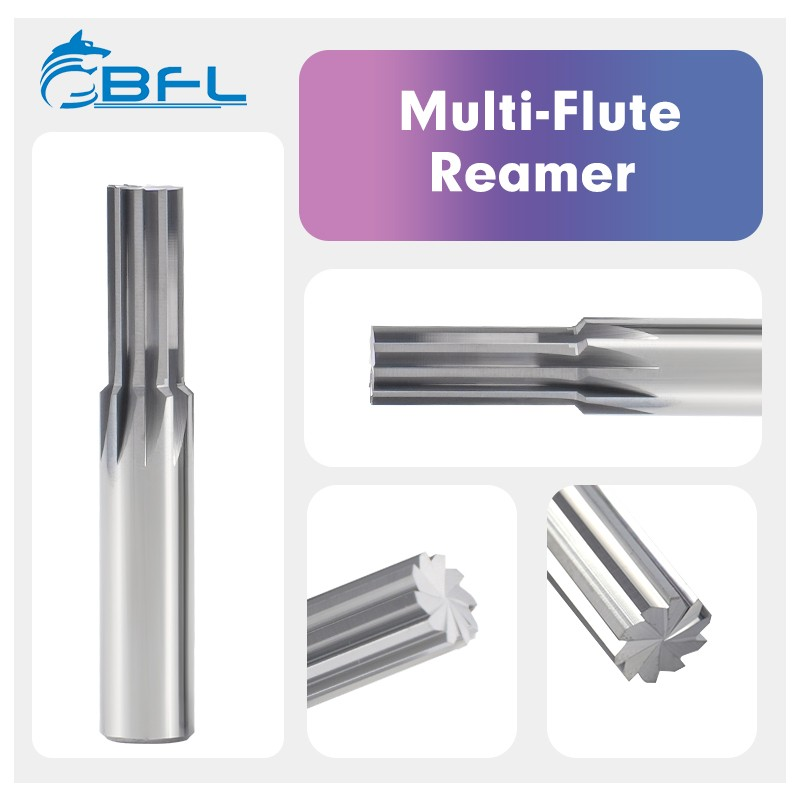

Solid Carbide Step Flute Reamer End Mill Overview

Advanced Material Composition and Thermal Coating

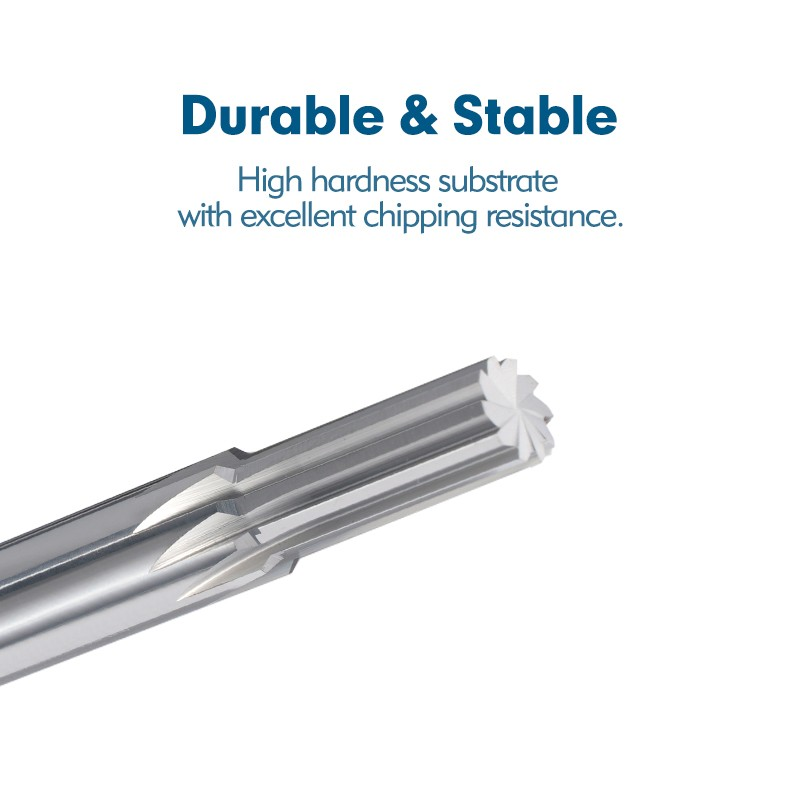

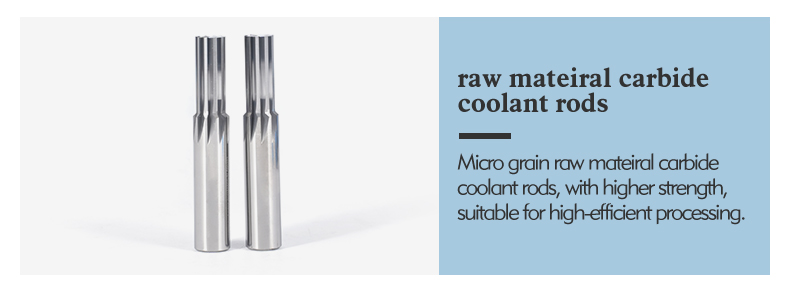

The foundation of reliable machining lies in the structural integrity of the cutting tool. This specialized end mill is engineered to tackle demanding material removal and finishing operations in a single, efficient setup. Crafted from premium solid carbide, the tool presents a dense, substantial weight in hand, indicative of its rigid core. This inherent rigidity minimizes deflection during aggressive feed rates, ensuring the tool remains perfectly true to the programmed toolpath.

Coated with a specialized wear-resistant layer, the surface exhibits a smooth, dark reflective finish. This coating is not merely cosmetic; it acts as a critical thermal barrier. During continuous CNC cycles, temperatures at the cutting zone can escalate rapidly. The coating effectively dissipates this intense heat, preventing thermal cracking and significantly extending the operational lifespan of the tool. By reducing friction between the metal chip and the flute face, it also prevents material adhesion, ensuring a clean, precise cut from the first pass to the last.

Optimized Step Flute and Chip Evacuation

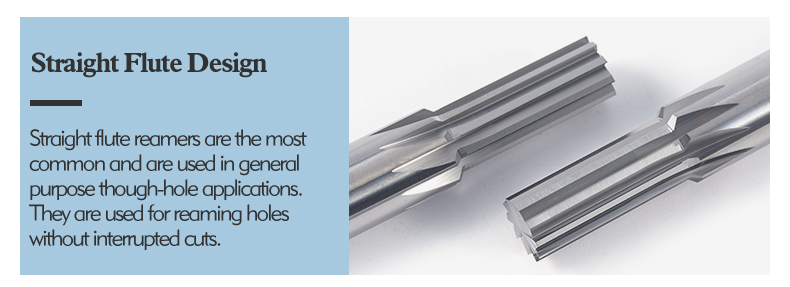

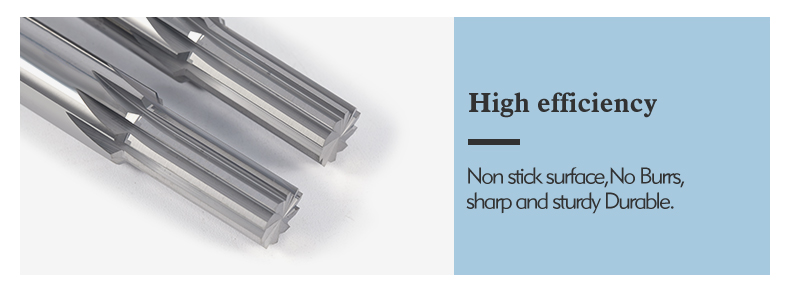

Effective chip management is essential for maintaining both tool life and workpiece integrity. This end mill features an optimized step flute geometry paired with generously proportioned chip valleys. As the cutting edges shear the material, the large capacity flutes provide an immediate, unobstructed exit path for the chips. This prevents the dangerous recutting of hardened chips, which often leads to catastrophic tool failure or marred surface finishes.

The step design specifically lowers overall cutting resistance. Operators will notice a distinct difference on the shop floor: instead of the harsh, vibrating chatter associated with struggling tools, this reamer end mill produces a consistent, smooth cutting sound. This reduction in vibration translates directly to less wear on the machine spindle and a more stable machining environment, even when pushing feed parameters to their upper limits.

Precision Engineering and Material Versatility

Tight Tolerances and Surface Quality

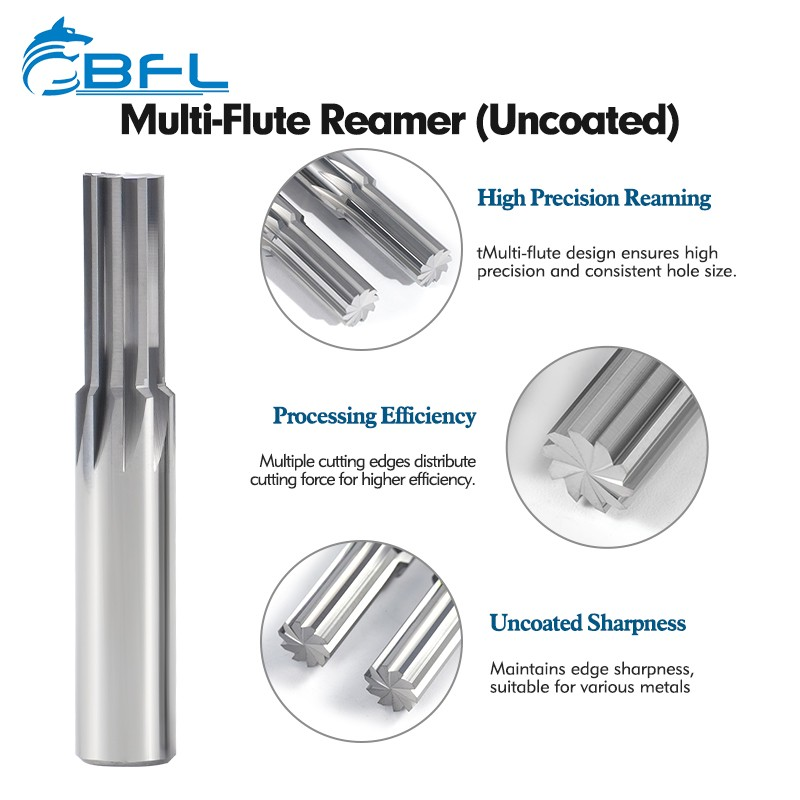

Integrating reaming and milling into a single, cohesive operation drastically reduces cycle times by eliminating unnecessary tool changes. This tool is ground to exacting tolerances, ensuring that every dimension meets strict dimensional criteria. The result is a tool capable of delivering a mirror-like surface finish on the final workpiece. By controlling machining tolerances so tightly, it frequently eliminates the need for secondary polishing or manual deburring operations, streamlining the entire production workflow and reducing overall operational costs.

Broad Spectrum of Applicable Materials

Versatility on the shop floor reduces the need for excessive tooling inventory. This step flute reamer end mill is geometrically optimized to adapt to various material hardness levels and compositions, delivering consistent results across diverse applications.

• Carbon and Alloy Steels: Powers through tough alloys without premature edge degradation or chipping.

• Aluminum and Non-Ferrous Alloys: The polished flutes prevent gummy materials from packing and welding to the cutting edge.

• Stainless Steel: Resists the work-hardening tendencies of stainless grades through a sharp, decisive shearing action.

• Hardened Mold Steels: Maintains strict dimensional accuracy even when profiling abrasive, complex mold cavities.

Production Capabilities and Customization

Custom End Mill and Reamer Solutions

Standard catalog dimensions cannot accommodate every unique machining scenario. Relying on extensive in-house manufacturing capabilities, customized end mill and reamer solutions are available to match specific project requirements. Whether an operation requires a modified reach, a non-standard step length, or a specialized shank configuration to clear complex fixturing, the engineering team develops tailored geometries. This ensures the tool fits the exact parameters of the application, rather than forcing the application to adapt to a standard tool.

Strict Quality Control for Consistent Performance

Predictability is the most valuable metric in large-scale production environments. To guarantee this predictability, every batch of tools undergoes a rigorous, multi-stage inspection process that aligns with international certification standards. From optical measurement of the flute geometry to dynamic runout testing, every critical parameter is verified before packaging.

When sourcing tools for extensive production runs, consistency from the first piece to the thousandth is non-negotiable. This strict adherence to quality control ensures that every tool performs identically, allowing programmers to set cutting parameters with absolute confidence, knowing the tool life and finish will remain constant across the entire production schedule.
